| Prod Model: |
S-9100B |
| Markets: |
South America,Southeast Asia,Western Europe |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electromagnetic Microphone |
| Application: |
KTV |

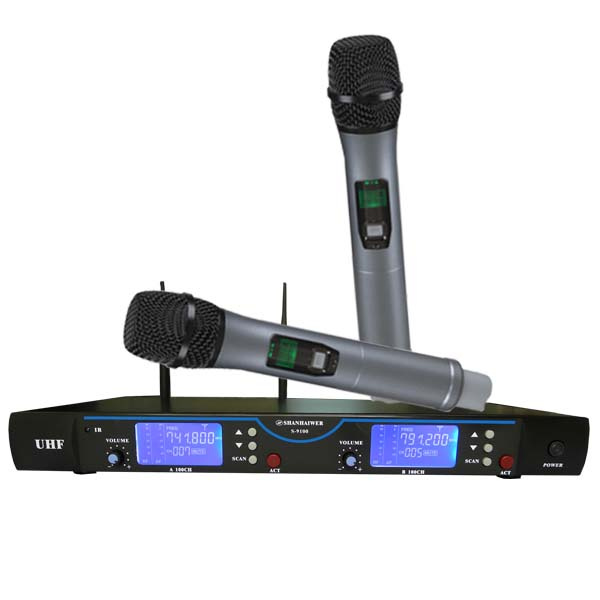

Product Description
Eatures:
1. UHF band (740-860 MHz) frequency with 100 channels with PLL synthesized control.
2. "ACT" (Automatic Channel Targeting) channel set-up technology, only you put the transmitter aim to the ACT LED on the receiver, it can be automatic searched the channel. "ACT"
3. Two microphone channels with individual volume controls
4. Two Independent XLR Balanced Outputs
5. One 1/2" phone jack mixed output and one XLR jack mixed output
6. LCD display panel on transmitters and receiver show RF/AF and Channel.
7. Rugged 1RU metal receiver chassis.
8. Still make an uproar adopt direct Frequently, winner, noise triple Inspection
9. Transmitter may be used mutually
10. Transmitter has statement indicating function and mute button
11. Operating range up to 100m
12. DC 12V adaptor supply power(Adaptor with CE certificate).
Specification
1. Carrier Frequency: UHF 740-860MHz
2. Modulation Type: PLL
3. Available Band Width: 50MHz
4. Channel: 2X100
5. Frequency stability: ± 0.005%
6. Audio Dynamic range: >105dB
7. Max. Deviation: ± 45kHz
8. Total Harmonic Distortion: ≤ 0.5%
9. Frequency response: 40Hz-16kHz(± 3dB)
10. Signal/Noise Ratio: >105 dB
11. Maximum Distance: 100m
12. Operating Temperature: -10° C_+40° C
Receiver
1. Power supply: DC 12V/ 850mA
2. Power consumption: 3W
3. Sensitivity: 12dBμV (80DBS/N )
4. Audio output level Mix: 0~200MV, Separate, 0~400mV
5. Dimension 420 X 210 X45mm(L. W. H).
6. Weight 1748g
Transmitter
1. Output power High: 30mW; Low: 3mW
2. Battery: 3V(1.5V AA× 2)
3. Battery Life High >10 hours; Low: >15 hours
4. Liquid crystal display work frequency and battery energy
Standard features
1. Receive: 1
2. Metal handheld Transmitter: 2
3. Receiv ant: 2
5. 1.5V AA battery: 4
6. Audio cable: 1
7. Manual: 1
8. Color box: 1
Packaging
1. G. W(Kgs)/CTN: 1plastic hand-held(16.35kg)
2. CTN SIZE(L. W. H) 56X32X56cm
3. PCS/CTN 5PCS
