| Prod Model: |
PGX4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
620-950MHz |
| Style: |
Headset Microphone |
| Application: |
Amplify |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR Mini |
Product Description
Professional UHF & PLL wireless microphone
We specialize in UHF wireless microphones and pro audio systems for almost 10 years. Guaranteed with the reliable quality, you will be delighted to find that our microphones and pro audio products are also with competitive prices. Welcome to enquiry and test our wireless microphones and professional audio systems.

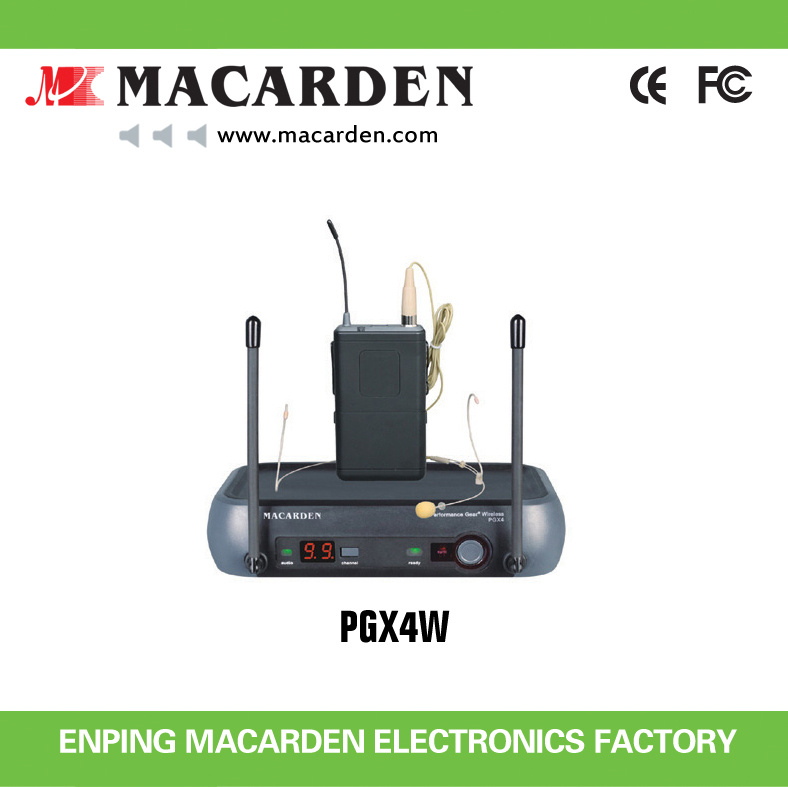

PGX4
PLL & UHF ANTENNA DIVERSITY SINGLE CHANNEL WIRELESS HEADSET MICROPHONE
KEY FEATURES
1. Adopt the PLL Synthesized control technic, preset 99 non-interfered channels.
2. Antenna diverysity single channel operation.
3. Transfer datas to transmitter by infrared.
4. LED information display
5. Using high gain antenna, the space availability is more than 80 meters at the clearing.
PGX4 RECEIVER SPECIFICATIONS
RF Frequency Range: 620-830MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Frequency Stability: ±0.005%
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:1A 12~15V DC
Working Range: Up to 100m
Dimensions:17.8X10.4X4cm
PGX4 BODYPACK TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-830MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:condenser microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:11X6.7cm
Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
