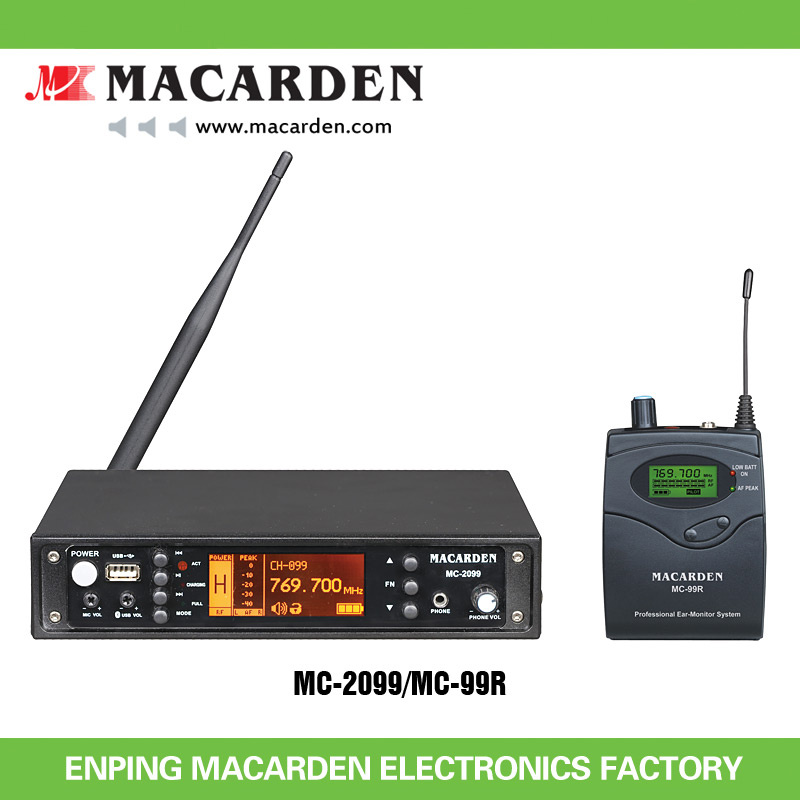

Pll&UHF Professional Wireless Monitor System Mc-2099/Mc-99r
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
MC-2099/MC-99R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
XLR Mini |
| Wireless Technology: |
UHF |
| Style: |
Professional Wireless Monitor System |
Product Description
WIRELESS MONITORING SYSTEM MC-2099/MC-99RMAIN FEATURES1.Professional Wireless Monitor System Design
2.Adopt the PLL Synthesized control technic, preset 100 non-interfered channels.
3.Transfer datas to transmitter by infrared.
4.Digital LCD information display.
5.Using high gain antenna, the space availability is more than 60-300 meters at the clearing.RECEIVER MC-99R SPECIFICATIONRF Frequency Range: 500-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>95dB
Frequency Stability: ±0.005%(-10~50ºC)
Max Deviation: ±48KHz
T.H.D: < 1% @ 1KHz Deviation
Battery Requirement:2X1.5V AA alkaline
Working Range: 100m
Dimensions: 17 X 6.1X 2.3cmMC-2099 RACK UNIT TRANSMITTER SPECIFICATIONSRF Frequency Range: 500-950MHz
Oscillation Mode: PLL Synthesized
Bandwidth: 25MHz
Frequency Stability: ±0.005%(-10~50ºC)
Modulation:38KHz@1KHz
Audio Input: XLR and 6.3mm composite socket, standard USB socket
Earphone output:6.3mm stereo socket, with adjustable volume control
Earphone output load impedance:≥16Ω
Antenna Output Socket:BNC@50Ω
Working environment: -10ºC- 45ºC, +20%
