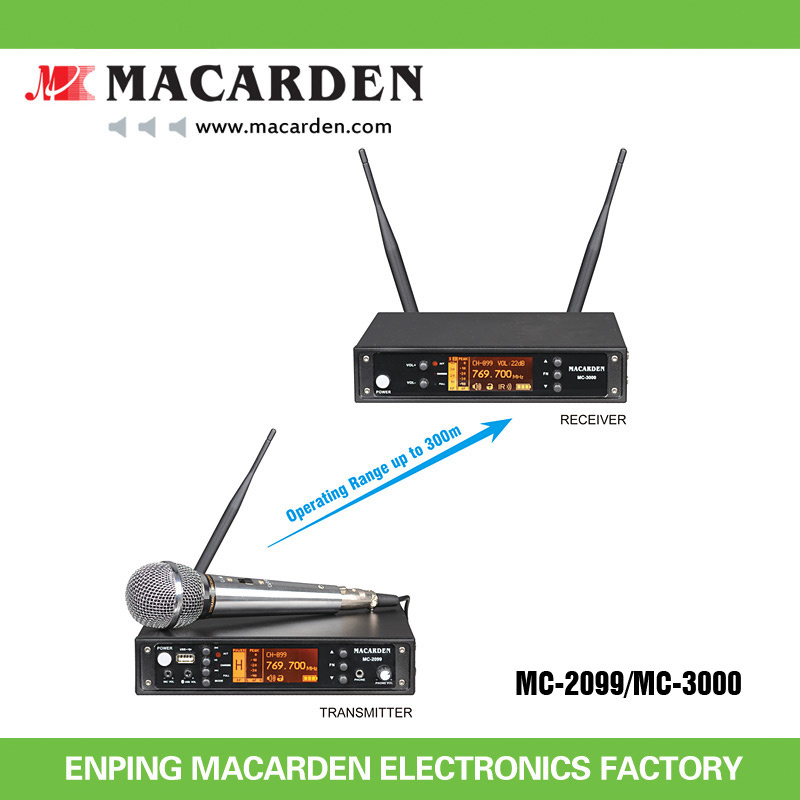

Pll & UHF Wireless Rack Unit Transmitter System Mc-2099/Mc-3000
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
MC-2099/MC-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
| Style: |
Wireless Rack Unit Transmitter System |
Product Description
PLL & UHF WIRELESS RACK UNIT TRANSMITTER SYSTEM MC-2099/MC-3000 SERIES Key futures of Wireless rack unit transmitter system1.Suitable for stages, plaza, school playground, street parade, and sound broadcast, also as ear monitor for singers.
2.Using UHF frequency range and PLL lock, and with low power (100mW) & high power (1000mW) of long distance signal transmission, operating distance up to 300m
3. With lithium battery built inside in case no DC power around.
4 Adopt balance & unbalance common input socket, with output earphones monitoring socket.
5. Using the USB input socket, can read the MP3 music, phonetics and some other voice info on the U disk or SD card.
6. With the Bluetooth transmission technology, interconnect with mobile phone or other audio equipment to read music or sound information. MC-2099 RACK UNIT TRANSMITTER SPECIFICATIONSRF Frequency Range: 500-950MHz
Oscillation Mode: PLL Synthesized
Channel Interval: 250KHz
Frequency Stability: ±0.005%(-10~50ºC)
Modulation:38KHz@1KHz
Earphone output:6.3mm stereo socket, with adjustable volume control
Earphone output load impedance:≥16Ω
Antenna Output Socket:BNC@50Ω
Audio Input: XLR and 6.3mm composite socket, standard USB socket
Working environment: -10ºC- 45ºC, +20%MC-3000 RECEIVER SPECIFICATIONSRF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Frequency Stability: ±0.005%(-10~50ºC)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:Built-in 100/240V AC Switching Power Supply
Working Range: Up to 100m
Dimensions:21X19.6X4.5cm
MC-2099/MC-3000 can be used in below occasions.
Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
