| Prod Model: |
SLX4W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Frequency Range: |
620-950MHz |
| Style: |
Headset Microphone |
| Application: |
Meeting |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR Mini |
Product Description

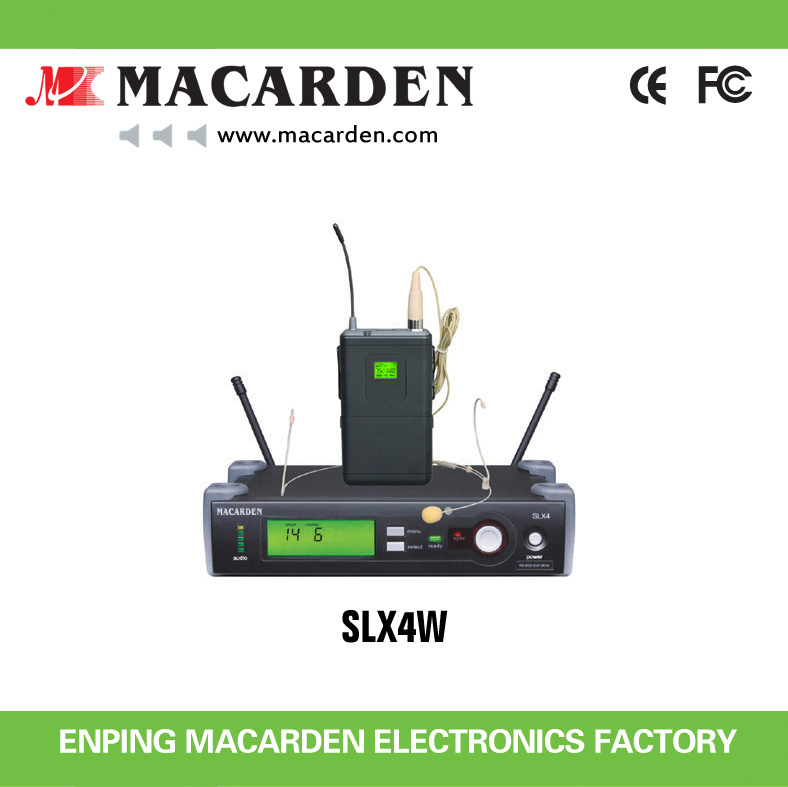

UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for over 10 years. Welcome you to test our wireless microphone.
SLX4
PLL & UHF TRUE DIVERSITY SINGLE CHANNEL WIRELESS MICROPHONE
SYSTEM FEATURES
1. Adopt the PLL Synthesized control technic,
2.True diverysity single channel operation.
3. Transfer datas to transmitter by infrared.
4. Splendid LCD display, shows the RF level, AF level, channel and frequency
5. Using high gain antenna, the space availability is more than 100 meters at the clearing.SLX4 RECEIVER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Frequency Stability: ±0.005%
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Frequency Response: 50Hz~18KHz±3dB
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:DC power supply
Working range: 100m
Dimensions:19.7X14.7X4.2 cm
SLX4 BODYPACK TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge: Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
