| Prod Model: |
MC-9010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Working Range: |
up to 100m |
| Frequency Range: |
620-950MHz |
| Style: |
Handheld Microphone |
| Application: |
Karaoke |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR Mini |
Product Description
UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.MC-9010
PLL & UHF DUAL CHANNEL WIRELESS MICROPHONE
SYSTEM FEATURES
1. ACT(IR)function
2. Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
3. Splendid LCD display, shows the RF level, AF level, channel and frequency
4. Using high gain antenna, the space availability is more than 100 meters at the clearing.
5. Designed for stages and other high-class occasions

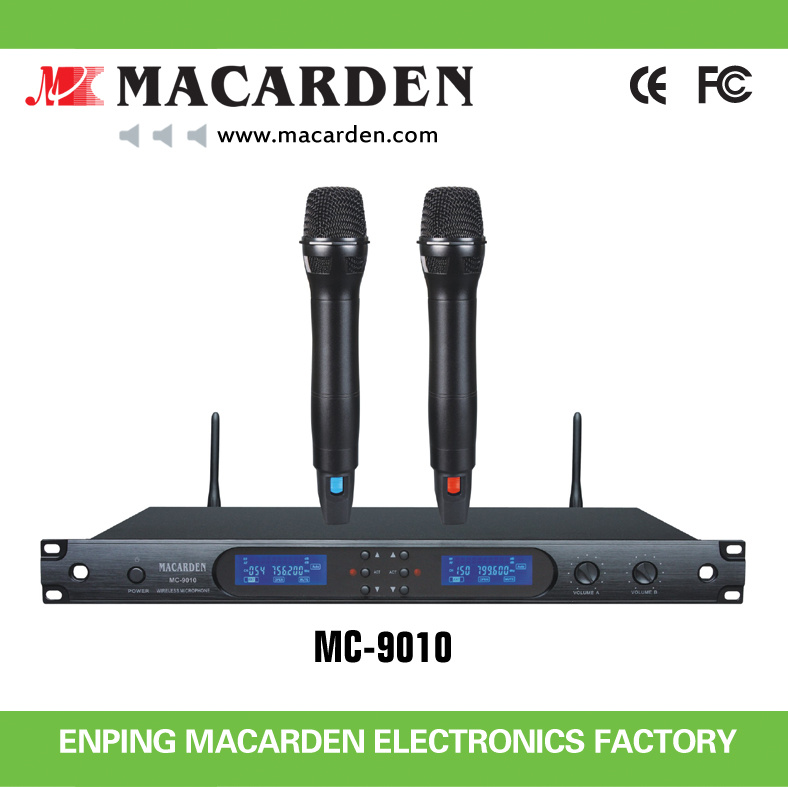

MC-9010 RECEIVER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:Built-in 100/240V AC Switching Power Supply
Working Range: Up to 100m
Dimensions:48X22X4.4cmMC-9010H HANDHELD TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:dynamic microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:26.5X5cm
MC-9010L BODYPACK TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:condenser microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:11X6.7cm
