UHF Pll Act Infrared Dual Channel Wireless Microphone (MC-9008)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
150/Set |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
MC-9008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
620-950MHz |
| Oscillation Mode: |
Pll Synthesized |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
XLR Mini |
Product Description
UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.
MC-9008 wireless system has been engineered to be dependable dual channel UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range

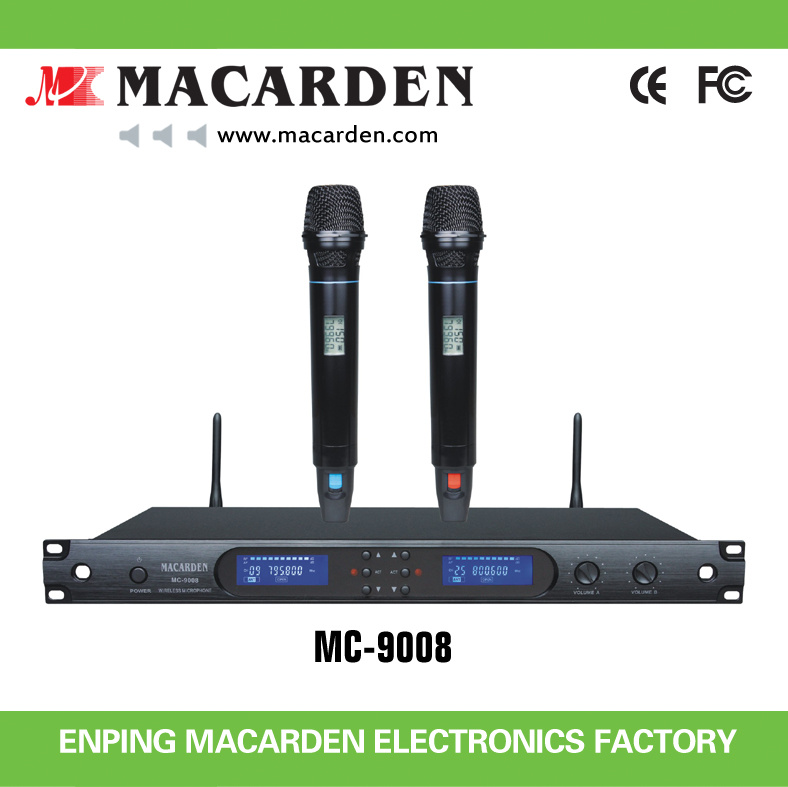

MC-9008
PLL&UHF DUAL CHANNEL WIRELESS MICROPHONE
Features:- Dual channel diversity wireless receiver
- 200 adjustable frequencies with PLL synthesized control
- UHF band frequency (800MHz)
- Two independent XLR balanced outputs
- RF input with built-in RF preamplifier to improve S/N ratio, sensitivity and d ynamic range
- Low noise mixer circuitry for reducing interference
- Removable antennas
- 2 LCD screens provide informative status on each microphone's status including: Signal Strength, Audio Level, Operation Frequency and Diversity Antenna Selection
- Service Area: 500 ft ( 100 M )
Product description:
UHF-9008 PROFESSIONAL 200 CHANNELS
PLL module locked loop design
Built-in mute & audio locked loop design pressing disturbance.
Special Counter-interference circuit design
Mini processor for automatic selection function, it can choose the most powerful signal from two microphones. Compared with those do not have such function, the reception ability is much higher, the working distance is lengthen, no dead points occurred, this will be effectively to avoid discontinuous sound or noises.
MENU, UP, DOWN, SET etc are control function buttons
Offer balanced XLR & unbalanced TRS 6.3 mm output socket
MC-9008 RECEIVER
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
DC Power Supply: 1A 12~15V DC
Working Range: Up to 100m
Dimensions: 48X22X4.4cm

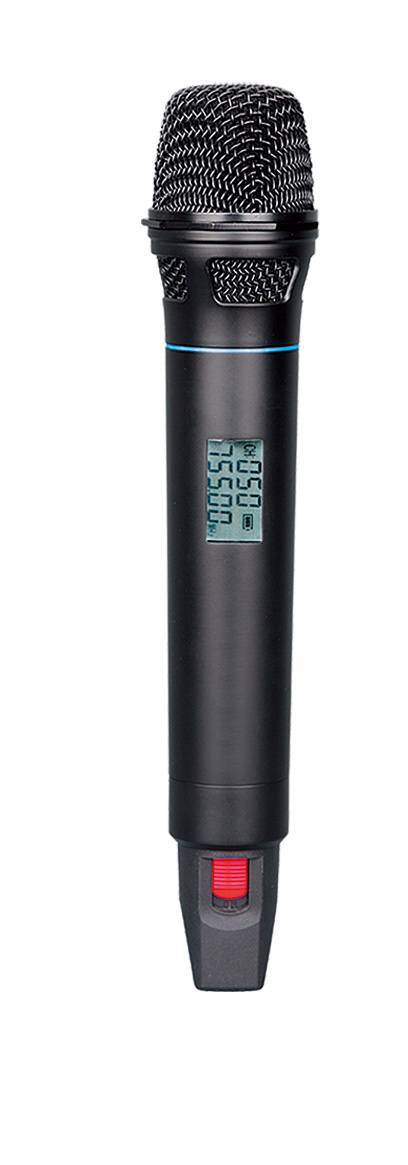

MC-9008 HANDHELD TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:26.5X5 cm
MC-9008 BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 11X6.7 cm
Remarks:Refer to actual product in the event of product discrepancy,Frequency range and peak deviation comply with the regulations of different countries.
