UHF Dual Channel Wireless Microphone (MC-9007)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
150/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
MC-9007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
620-950MHz |
| Oscillation Mode: |
Pll Synthesized |
| Channels By Automatic Channels Targeting: |
Multi Channels 200 |
| Handheld Mic Color: |
White Color |
| Working Distance: |
up to 100m |
| Style: |
Handheld Microphone |
| Application: |
Karaoke |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR Mini |
Product Description

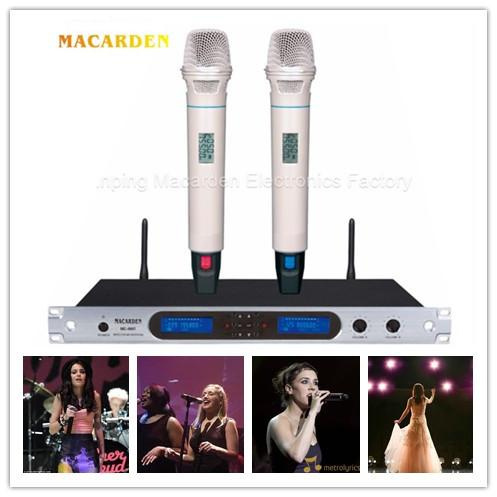

UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.
MC-9007 wireless system has been engineered to be dependable dual channel UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission rangeMC-9007

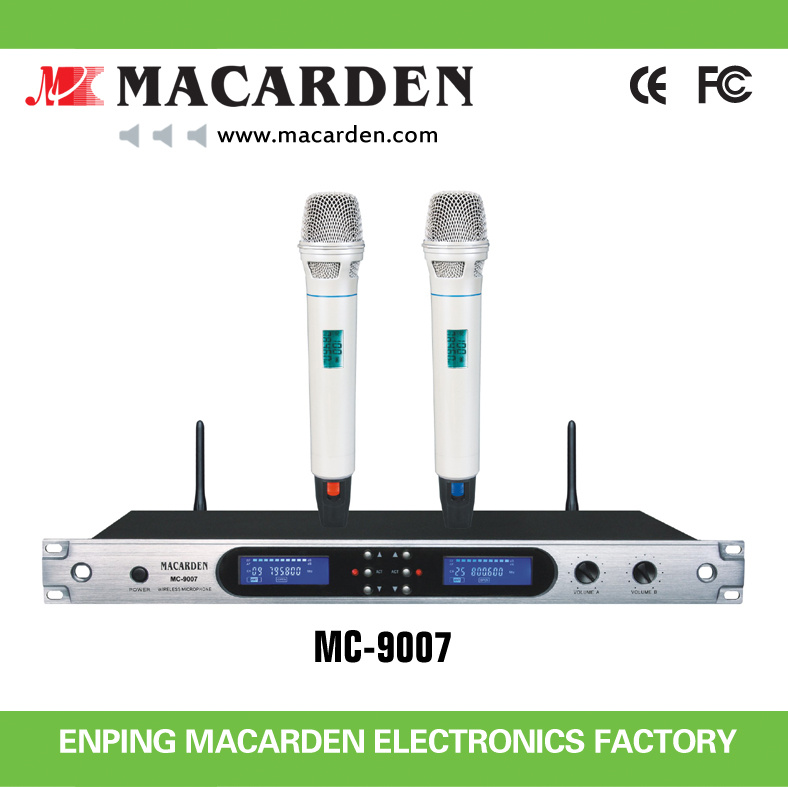

PLL&UHF DUAL CHANNEL WIRELESS MICROPHONE
- Dual channel diversity wireless receiver
- 200 adjustable frequencies with PLL synthesized control
- UHF band frequency (800MHz)
- Two independent XLR balanced outputs
- RF input with built-in RF preamplifier to improve S/N ratio, sensitivity and d ynamic range
- Low noise mixer circuitry for reducing interference
- Removable antennas
- 2 LCD screens provide informative status on each microphone's status including: Signal Strength, Audio Level, Operation Frequency and Diversity Antenna Selection
- Service Area: 500 ft ( 100 M )
Product description:
UHF-9007 PROFESSIONAL 200 CHANNELS
PLL module locked loop design
Built-in mute & audio locked loop design pressing disturbance.
Special Counter-interference circuit design
Mini processor for automatic selection function, it can choose the most powerful signal from two microphones. Compared with those do not have such function, the reception ability is much higher, the working distance is lengthen, no dead points occurred, this will be effectively to avoid discontinuous sound or noises.
MENU, UP, DOWN, SET etc are control function buttons
Offer balanced XLR & unbalanced TRS 6.3 mm output socket
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
DC Power Supply: 1A 12~15V DC
Working Range: Up to 100m
Dimensions: 48X22X4.4cm
MC-9007 HANDHELD TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:26.5X5 cm
MC-9007 BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 11X6.7 cm
Remarks:Refer to actual product in the event of product discrepancy,Frequency range and peak deviation comply with the regulations of different countries.

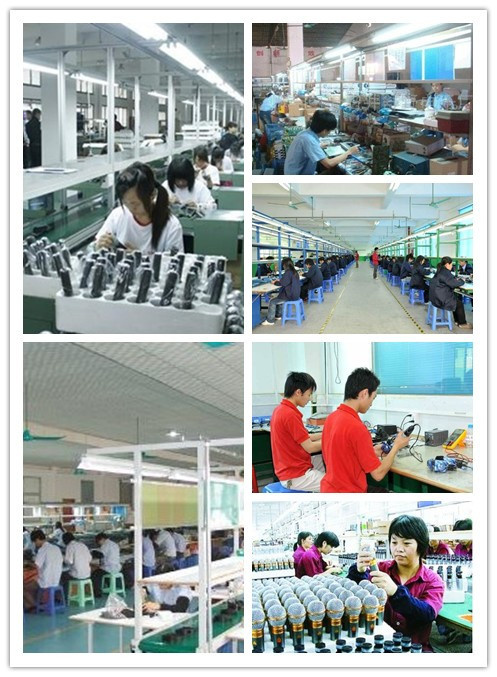

Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
