| Prod Model: |
EM-4238/M11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Two Way Radio Dp2000 Transparent Earpiece |
| For Radios: |
Dp2000/Dp2400/Dp2600/Xpr3000/Xpr3300 |
| Connector: |
M11 Multi Pin |
| Material: |
Surgical Grade Acoustic Tube |
| Cable Material: |
Environmental PU Cable Reinforced with Kevlar |
| Application: |
Swat,Police, Fire Fighter,etc |
| Use For: |
Two Way Radios Communication |
| Communication: |
Wired |
| Functions: |
Microphone |
| Warranty: |
12 Months |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Earpad Size: |
Small |
| Wire Material: |
PU |
| Jack Type: |
M11 Multi Pin Connector |
| Use: |
Two Way Radios/Walkie Talkies |
| Color: |
Black/Beige |
Product Description

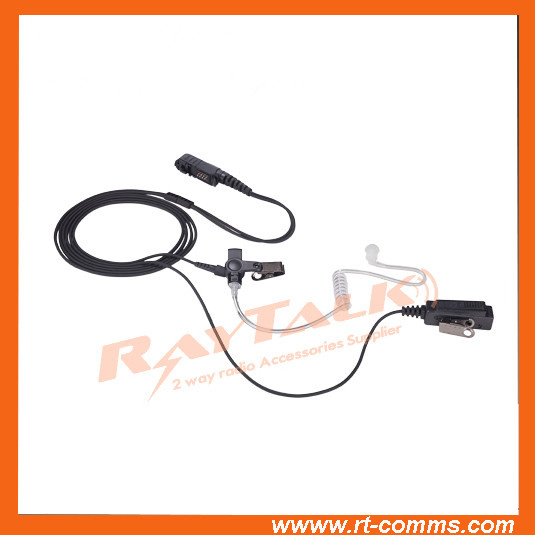

Two way radio DP2000 Transparent Earpiece
Descriptions:
1. Rugged And Reliable
2. Surgical grade acoustic tube; discreet and comfortable; available in clear and black
3. Quick-fasten secure structure
4. Environmental PU cable reinforced with Kevlar
5. Used with optional ear mold allows ambient sounds and provides better wearing
6. Discreet communication in complex environment. Suitable for patrolling police, security personnel in hotel, conference hall, casino and restaurant, etc.
7. Available for Motorola, EF Johnson, FRS, Kenwood, Icom, Yaesu/Vertex, Maxon, etc. For details please refer to Connectors chart.
Advantage:
1. Professional surveillance two wire kits, with medicinal Grade acoustic tube; discreet and comfortable;
2. Quick disconnection acoustic tube
3. Separated microphone in most popular PTT. PTT button and earpiece for discreet communication.
4. All have Kevlar reinforced cable and Kevlar reinforced cable assemblies and over molded strain assemblies and over molded strain relief.
5. Optional black or beige color.
6. Clear sound quality, noise eliminated.
7. Can change the earplug (Eartip1, Trigonal, and NOISE LIMITER) as your request.
8. Ideal for security, SWAT and other applications which require discrete communications.
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
Your one stop source for Two way radio accessories. (Safety & Comfortable Communication)
RayTalk Communications & Technology was established in 2003 as a professional manufacturer of two way radio Accessories & Aviation headsets, and has continued to provide worldwide customers with the best in two-way communications products and services/ Our team of sales, service, engineering and operations are among the most qualified and best trained in the two way radios industry.
Our products include audio accessories, headset, earpiece, surveillance kit, speaker microphone, throat microphone, batteries, battery chargers compatible with Motorola, Kenwood, Icom, HYT, Vertex/Standard, GME, Unider and Tait products.
RayTalk has delivered comprehensive, dependable, and cost-effective solutions to meet the demands of our clients and on site support service tailored to the specifications and budgets of our clients. OEM & ODM are also welcome, our teams of experts work closely with customers and listen to your opinions with an aim to create products that suits your requirements.
At RayTalk, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction. With the skill, range of service, stability and resources, we believe we can become your long-term communications partner.
