| Prod Model: |
Q1+Q SUB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
2-Way, Dual 10inch Line Array System |
| Frequency Range: |
60Hz -- 20kHz |
| Maximum Peak Output: |
139db |
| Noise: |
<102dB |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.03% |
Product Description

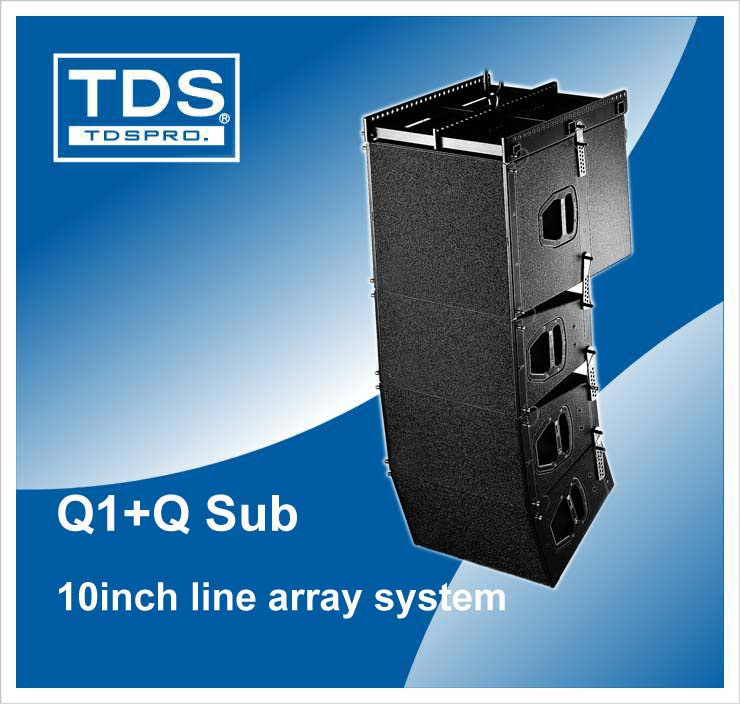

Two-way Passive Line Array (Q1+ Q SUB) With Dual 10inch Professional Speakers
Q1 is a dual 10inch two-way line array system. This system adopt neodymium magent compression driver with 75mm voice coil which is durable and working high efficiency. The Q1 delivery very clear vocal voice. 4 units Q1 working together with 1 unit Q sub to be a full sound system. This system suitable for small size live performance, live speech and some high class conference room.
Features
1. All transducer with neodymium magnet.
2. Very compact cabinet convenient for mobile usage and fixed installation.
3. More choice for vertical coverage angle.
4. Fast installation rigging system.
5. 2 x NL4MP Neutrick Speakon Connectors.
Applications
1. Small size live performance
2. High class conference room
3. Theatre, multi-function hall, church.
TECHNICAL SPECIFICATION |
| Frequency Range(-10dB) | 60Hz -- 20kHz |
| Frequency Response(± 3dB) | 80Hz -- 18kHz |
| Horizontal Coverage Angle(-6dB) | 75° |
| Vertical Coverage Angle (-6dB) | 15° |
| System Input Power Rating | LF: 400W Continuous. 800W Peak |
| HF: 100W Continuous. 200W Peak |
| Maximum Peak Output | 139dB |
| Recommended Amplification | LF: 800W into 8 ohms |
| HF: 200W into 8 ohms |
PHYSICAL DATA
|
| DimeNsions (W x H x D) | 580 x 308 x 410mm |
| Weight(net) | 23 Kg |
| Connectors | 2 x NL4MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood
|
