(Q1+Q SUB) --Sound & Light Installation-High Performance Sound in Concert Event

(Q1+Q SUB) --Sound & Light Installation-High Performance Sound in Concert Event
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: Q1+Q SUB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
System Type: 2-Way, Dual 10inch Line Array System
Frequency Range: 60Hz -- 20kHz
Maximum Peak Output: 139dB
Noise: <102dB
Speaker Material: Wood
Application: Commercial
Certification: CE
THD: <0.03%

Product Description

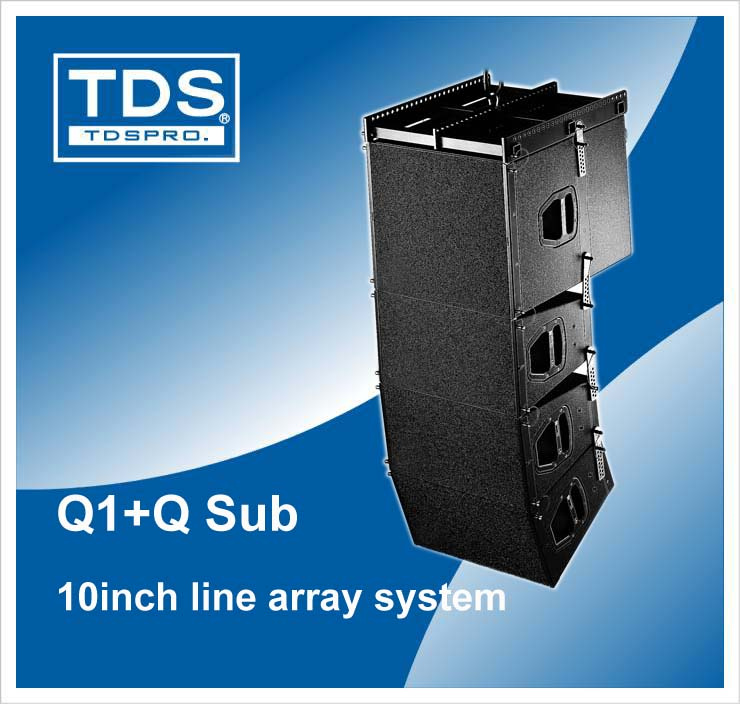

Q1 is a dual 10inch two-way line array system. This system adopts neodymium  magnet compression driver with 75mm voice coil which is durable and working high  efficiency. The Q1 delivery very clear vocal voice. 4 units Q1 working together with 1 unit Q sub to be a full sound system. This system suitable for small size live performance, live speech and some high class conference room.


Features:

1.  All transducer with neodymium magnet.

2.  Very compact cabinet convenient for mobile usage and fixed installation.

3.  More choice for vertical coverage angle.

4.  Fast installation rigging system.

5.  2 x NL4MP Neutrick Speakon Connectors.

Applications:

1.  Small size live performance

2.  High class conference room

3.  Theatre, multi-function hall, church.


TECHNICAL SPECIFICATION
Frequency Range(-10dB)60Hz -- 20kHz
Frequency Response(±   3dB)80Hz -- 18kHz
Horizontal Coverage Angle(-6dB)75°
Vertical Coverage Angle  (-6dB)15°
System Input Power RatingLF:   400W Continuous.   800W Peak
HF:   100W Continuous. 200W Peak
Maximum Peak Output139dB
Recommended AmplificationLF:   800W into 8  ohms
HF:   200W into 8  ohms
PHYSICAL DATA

DimeNsions  (W x  H x  D)580 x  308 x  410mm
Weight(net)23 Kg
Connectors2 x NL4MP Neutrik Speakon Connectors
Cabinet Material18mm birch plywood


Why choose TDS products.
1. Raw material quality guarantee, ensure the products durability.
The speaker cabinet adopts 18mm birch plywood (except MP series). The woofer adopts UKM, 7DF paper cone. SUZUKI coil used in voice coil.

2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivers out within 18 days.

3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.

4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.



Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.

From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.

In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
