| Prod Model: |
Q1+Q SUB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
2-Way, Dual 10inch Line Array System |
| Frequency Range: |
60Hz -- 20kHz |
| Maximum Peak Output: |
139dB |
| Noise: |
<102dB |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CE |
| THD: |
<0.03% |
Product Description

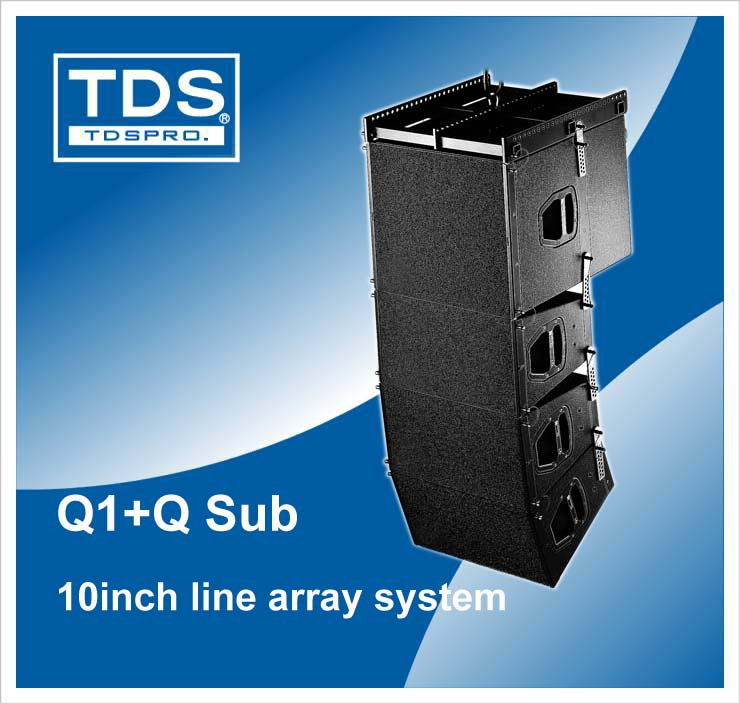

Q1 is a dual 10inch two-way line array system. This system adopts neodymium magnet compression driver with 75mm voice coil which is durable and working high efficiency. The Q1 delivery very clear vocal voice. 4 units Q1 working together with 1 unit Q sub to be a full sound system. This system suitable for small size live performance, live speech and some high class conference room.
Features:
1. All transducer with neodymium magnet.
2. Very compact cabinet convenient for mobile usage and fixed installation.
3. More choice for vertical coverage angle.
4. Fast installation rigging system.
5. 2 x NL4MP Neutrick Speakon Connectors.
Applications:
1. Small size live performance
2. High class conference room
3. Theatre, multi-function hall, church.
| TECHNICAL SPECIFICATION |
| Frequency Range(-10dB) | 60Hz -- 20kHz |
| Frequency Response(± 3dB) | 80Hz -- 18kHz |
| Horizontal Coverage Angle(-6dB) | 75° |
| Vertical Coverage Angle (-6dB) | 15° |
| System Input Power Rating | LF: 400W Continuous. 800W Peak |
| HF: 100W Continuous. 200W Peak |
| Maximum Peak Output | 139dB |
| Recommended Amplification | LF: 800W into 8 ohms |
| HF: 200W into 8 ohms |
PHYSICAL DATA
|
| DimeNsions (W x H x D) | 580 x 308 x 410mm |
| Weight(net) | 23 Kg |
| Connectors | 2 x NL4MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood
|
Why choose TDS products.
1. Raw material quality guarantee, ensure the products durability.
The speaker cabinet adopts 18mm birch plywood (except MP series). The woofer adopts UKM, 7DF paper cone. SUZUKI coil used in voice coil.
2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivers out within 18 days.
3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.
4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
