| Prod Model: |
T1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE, FCC |
| Color: |
Silver |
| Country Of Origin: |
China |
| Feature: |
Have RS232 Interface |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
Product Description

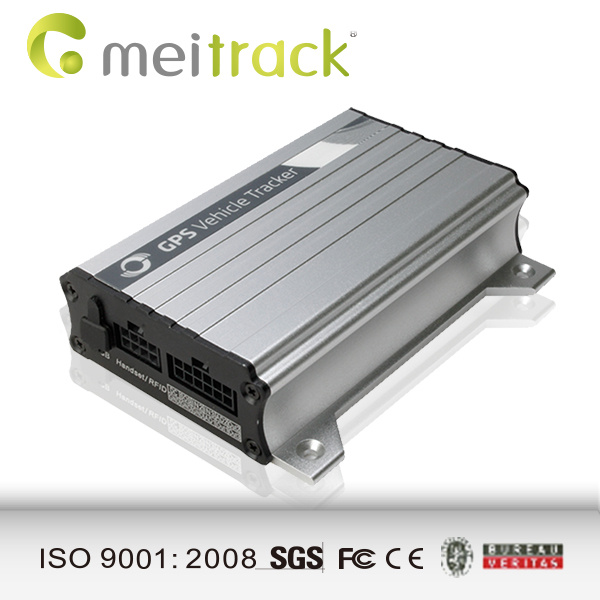

Voice-monitoring GPS tracker T1
Auto gps tracker T1 with SOS alarm, speeding alarm, geo fence alarm, cut engine, AGPS tracking. Have 1 RS232 interface, can connect camera to take pictures, connect RFID reader for driver authorization, connect handset for two way audio, connect LCD display for platform message display. Have OTA for remote firmware upgrade.
SiRF III GPS and Quad Band GSM 850/900/1800/1900Mhz
OTA Upgrade
AGPS ( with GSM Base Station ID)
Track by SMS/GPRS (TCP/UDP) (MEITRACK Protocol)
Track on Demand
Track by Time Interval
Track by Distance Interval
Track on Mobile Phone
Listen-in (Voice Monitoring) or Two-way Audio (Optional)
Internal 8MB Memory for Logging
Inbuilt Motion Sensor
850mAh Internal Backup Battery
SOS Alarm
Geo-fence Alarm
GPS Blind Area Alarm
Low Battery Alarm
Speeding Alarm
Tow Alarm
GPS Antenna Cut Alarm
External Power Cut Alarm
Mileage Report
Engine Cut (Engine immobilization)
Inbuilt Super Magnet (optional)
3 Digital Inputs (1 positive triggering and 2 negative triggering), 3 Outputs.
2 Analog Input Detection
1 RS232 Interface (for connecting to handset/RFID reader etc. )
Standard accessories:
T1 Main Unit with Battery
GPS Antenna
GSM Antenna
I/O Cable
USB Data Cable
CD
Optional accessories:
Relay
Handset Phone
Camera
RFID Reader
Inbuilt magnet
Temperature sensor
Fuel sensor
|
Dimension |
105*65*26mm |
|
Weight |
190g |
|
Input Voltage |
DC 9V~36V/1.5A |
|
Back-up Battery |
850mAh/3.7V |
|
Power consumption |
65mA standby current |
|
Operating Temperature |
-20~55 degree |
|
Humidity |
5%~95% |
|
Work Time |
43 hours in power-saving mode and 10 hours in normal mode |
|
LED |
2 LED lights to show GPS, GSM and other status |
|
Button |
1 SOS (for SMS or making call) and 1 power on/off |
|
Memory |
8M Byte |
|
Sensor |
Motion sensor & acceleration sensor |
|
GSM Frequency |
GSM 850/900/1800/1900MHz |
|
GPS Chip |
Latest GPS SIRF-Star III chipset |
|
GPS Sensitivity |
-159dB |
|
Positioning Accuracy |
10 meters, 2D RMS |
|
I/O |
3 Digital Input ( 2 positive triggering and 1 negative triggering)
2 Analog Input Detection
3 Output
1 RS232 Interface (for connecting to handset phone/RFID reader/LCD display etc)
1 USB port |
Meitrack Group established in 2002, is headquartered in Shenzhen, China, with the registered capital of CNY20 million. For nearly 13 years, Meitrack has become a global leading supplier of GPS trackers, M2M devices and industry solutions based on GSM technology combined with GPS, WiFi, 1-Wire etc. Meanwhile, we possess subsidiary companies in California, Kuala Lumpur, Hong Kong, and Taiwan. Aiming at sound and stable development and adhering to the strategy of "going global", Meitrack extends its business scopes over 170 countries and regions worldwide.
Combining the in-house R&D team and state-of-the-art modern factory (ISO9001: 2008), Meitrack can deliver truly innovative products for domestic and international markets. Our R&D team consists of more than 58 professional hardware and software engineers from China, Taiwan, and California with more than 10 years experience in designing, prototyping, integrating and testing products in the M2M industry.
We offer GPS trackers, M2M devices and industry solutions for automotive tracking, fleet management, personnel safety, remote monitoring and control of any assets etc. To cover most popular applications via the Internet.
We also offer full OEM/ODM services with an experienced team from both the wireless module industry and service operator side, for a complete understanding of the M2M business. We ensure that our products are integrated in a smooth and timely manner for your business.
We strongly believe customer service is as important as product quality, therefore our customers are confident in long term cooperation and stability. Hope to build a win-win partnership with you!
