| Prod Model: |
MVT380 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
Product Description

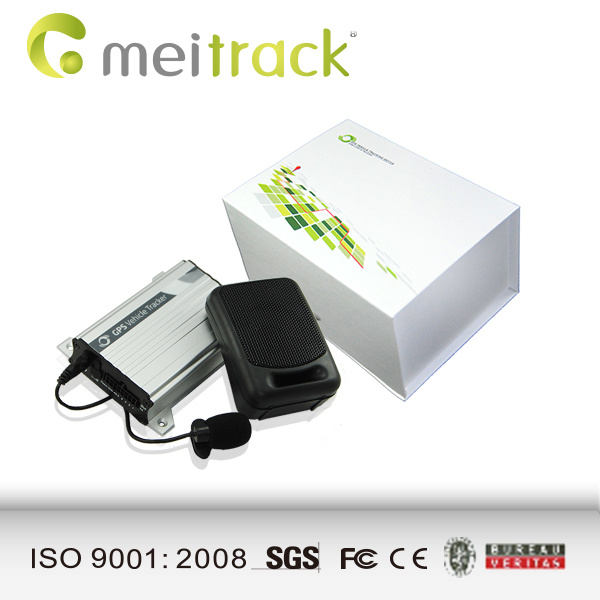

GPS Tracker
GSM GPS Tracker for Car Security and Fleet Management
Quad Band & SiRF III
Track by SMS/GPRS
SOS/Geo-fence/Speeding/Tow Alarm
Features:
Track by SMS/GPRS (MEITRACK Protocol)
Track on Demand
Track by Time Interval
Track by Distance Interval
Track on Mobile Phone
Inbuilt Tremble Sensor
850mAh Internal Backup Battery
SOS Alarm
Geo-fence Alarm
GPS Blind Area Alarm
Low Battery Alarm
Speeding Alarm
Tow Alarm
GPS Antenna Cut Alarm
External Power Cut Alarm
Mileage Report
Engine Cut (Engine immobilization)
Inbuilt Super Magnet (optional)
Optional Accessories:
Relay
Fuel Sensor
GSM Frequency |
GSM 850/900/1800/1900Mhz |
GPS Chipset |
Latest SIRF-Star III high sensitivity chipset |
GPS Sensitivity |
-159dB |
Channels |
20 channel all-in-view tracking |
Dimension |
105*65*26mm |
Weight |
190g |
External Voltage |
DC 9V~36V/1.5A |
Backup Battery |
850mAh/3.7V |
Normal power consumption |
85mA |
GSM Antenna |
SMA external |
GPS Antenna |
SMA external |
Sensors |
Tremble Sensor |
Interface |
5 Digital Inputs (3 negative and 2 positive)
5 Outputs
2 Analog Inputs
1 USB Port
1 Speaker/Microphone Plug
1 Analog Input Detection
1 USB |
