| Prod Model: |
T3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
105*65*26mm |
| Weight: |
190g |
| Work Time: |
43 Hours in Power-Saving and 10 Hours in Normal |
| GSM Frequency: |
GSM 850/900/1800/1900MHz |
| GPS Chip: |
L1, Fdma |
| GPS Sensitivity: |
-159dB |
| Sensor: |
Motion Sensor |
| I/O: |
3 Digital Input, 2analog Input Detection, 3output |
| Waterproof: |
No |
| Certificate: |
CE, FCC, CCC, Design Patent |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description

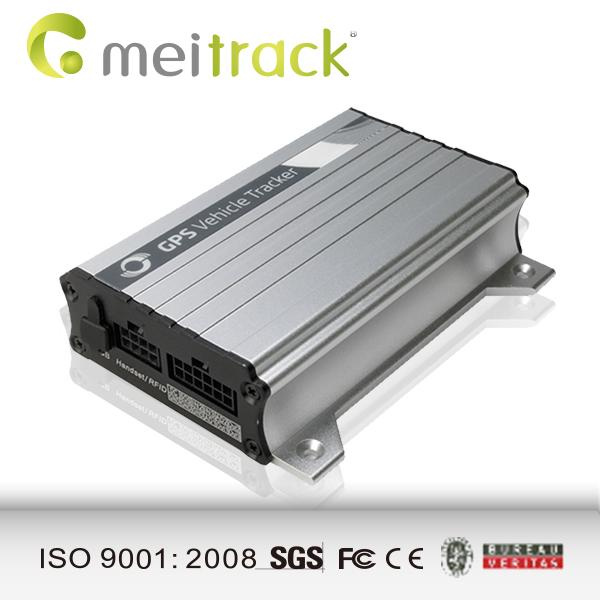

T3 is a GPS vehicle tracker, Non-Waterproof Mini GPS Tracker, which also include glonass tracking function, it is an ideal choice for vehicle tracking and fleet management. It combines GPS and Glonass signal with full-scare functions.
APPLICATIONS
Vehicle Tracking
Fleet Management
FUNCTIONS
GPS+GSM (LBS) Tracking
Track by SMS/GPRS TCP & UDP
Track on Demand
Track by Time Interval
Track by Distance Interval
Track on Mobile Phone
Listen-in or Two-way Audio (Optional)
Inbuilt Motion Sensor
Inbuilt Acceleration Sensor
GPS Log
SOS Alarm
Geo-fence Alarm
GPS/GLONASS Blind Area Alarm
Low Battery Alarm
Speeding Alarm
Tow Alarm
GPS/GLONASS Antenna Cut Alarm
External Power Cut Alarm
Mileage Report
Engine Cut (Engine immobilization)
Inbuilt Super Magnet (optional)
OTA
ACCESSORIES
T3 with Battery
GSM Antenna
GPS Antenna
I/O Cable
USB Cable
CD
Warranty Card
Qualification Certificate
OPPTIONAL ACCESSORIES
LED Display
A21 LCD Display
Camera
Handset Phone
RFID
Fuel Sensor
Temperature Sensor
Relay
Super Magnet
PACKAGE
Box Size: 189X150X96mm
G/W: 1.1kg per box
Carton Size: 320X510X230mm(10 sets)
400X330X510mm(20 sets)
MEITRACK FAMILY GPS TRACKING SYSTEM MS02
Cell-ID Location
I/O Status Dynamic Display
Polygon Geo-fence
Group Command-sending
Route Deviation Alarm
More Than 20 Language
Map: OSM, Google, Bing, MapABC
APP for Smart Phone
|
Items |
Specifications |
|
Dimension |
105*65*26mm |
|
Weight |
190g |
|
Input Voltage |
DC 9V~36V/1.5A |
|
Back-up Battery |
850mAh/3.7V |
|
Power consumption |
65mA standby current |
|
Operating Temperature |
-20°C~55°C |
|
Humidity |
5%~95% |
|
Work Time |
43 hours in power-saving mode and 10 hours in normal mode |
|
LED |
2 LED lights to show GPS/GLONASS, GSM and other status |
|
Button |
1 SOS and 1 power on/off |
|
Microphone |
None |
|
Memory |
8M Byte |
|
Sensor |
Motion and acceleration sensor |
|
GSM Frequency |
GSM 850/900/1800/1900MHz |
|
GPS Chip |
L1, FDMA |
|
GPS Sensitivity |
-159dB |
|
Positioning Accuracy |
10 meters, 2D RMS |
|
I/O |
3 Digital Input ( 1 positive triggering and 2 negative triggering)
2 Analog Input Detection
3 Output
1 RS232 Interface (for connecting to handset phone/RFID reader/LCD display etc)
1 USB port
|
