| Prod Model: |
UW-2880 |
| Markets: |
South America,Africa,Mid East |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
TRS 3.5 mm |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description

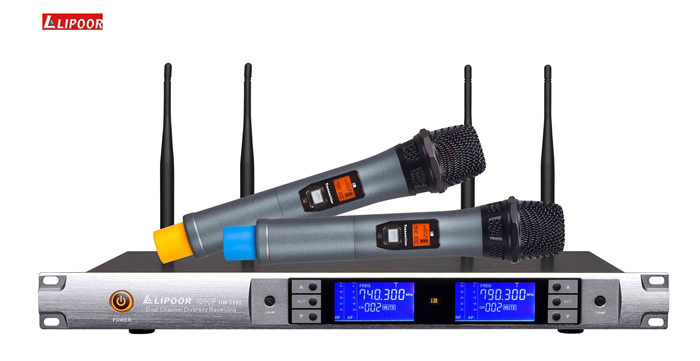

The true diversity design infra-red automatic matching frequency 2 channels wireless microphone,150 meters receiving distance ,the built-in 4 receiving circle,any microphone with two received circle receiving at the same time,it adopted the UHF double locking circle design of noice little interference.It adopted microcomputer CPU control,two times frequency conversion technology.Good sound reduction,excellent metal handheld fall proof effect.200 channel can be selected,no divided channel,convenient for using.It suitable for high level speech,conference,club allocated using.
Receiver technology parameter:
With SCAN one key avoiding signal interference function
Frequency range:740-820MHz
Oscillation mode:phase locked loop synthesis(PLL )
Modulation mode:FM
The maximum frequency deviation: ±50KHz
Sensitivity:18dBuV(can be adjusted)
SNR :≥89dB
Audio response :60Hz-15KHz(±3dB)
Audio output:0-300mV/600Ω
Balance output:0-300mV/600Ω
Dynamic range:≥105dB
Display:big screen liquid crystal display the number of frequency
Working voltage:DC 12V
Working current:1000mA
Working tempreture:-10ºC to +40ºC
Lanuncher
technology parameter:
Frequency range:740-820MHz
Emission power:10mW
Frequency stability :≤ ±0.005%
Modulation mode :FM
SNR :≥89dB
The maximum frequency deviation: ±50KHz
Frequency selection:infra-red matching the frequency comfirm the launcher working frequency
Working power:two no.5 battery
Working current:≤100mA
Working tempreture:-10ºC to +40ºC
