| Prod Model: |
UW-1030 |
| Markets: |
South America,Mid East |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
TRS 3.5 mm |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |

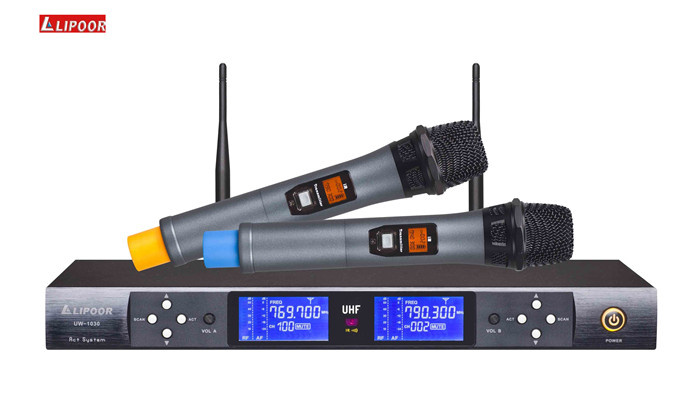

Product Description
UW-1030as external automatic matching frequency 2 channels wireless microphone ,it adopted the UHF double locking circle design of noise little interference ,excellent metal handheld fall proof effect. It adopted microcomputer CPU control, two times frequency conversion technology. Good sound reduction,200 channel cable selected, not divided channel, convenient for using. It suitable for high level concert, speech, conference ,club allocated using.
Receiver technology parameter:
With SCAN one key avoiding signal interference function |
Frequency range |
740-820MHz |
Oscillation mode |
FM |
The maximum frequency deviation |
±50KHz |
Sensitivity |
18dBuV(can be adjusted) |
SNR |
≥89dB |
Audio response |
60Hz-15KHz(±3dB) |
Audio output |
0-300mV/600Ω |
Balance output |
0-300mV/600Ω |
Display |
big screen liquid crystal display the number of frequency |
Dynamic range |
≥105dB |
Display: |
big screen liquid crystal display the number of frequency |
Working voltage |
DC 12V |
Working current |
1000mA |
Working temperature |
-10ºCto +40ºC |
Launcher: technology parameter:
Frequency range |
740-820MHz |
Emission power |
10mW |
Frequency stability |
≤ ±0.005% |
Modulation mode |
FM |
SNR |
≥89dB |
The maximum frequency deviation |
±50KHz |
Frequency selection |
infra-red matching the frequency
confirm the launcher working frequency |
Working power |
two no.5 battery |
Working current |
≤100mA |
Working temperature |
-10ºC to +40ºC |
