| Prod Model: |
SLX4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Frequency Range: |
620-950MHz |
| Style: |
Handheld Microphone |
| Application: |
Karaoke |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR Mini |
Product Description
UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.SLX4

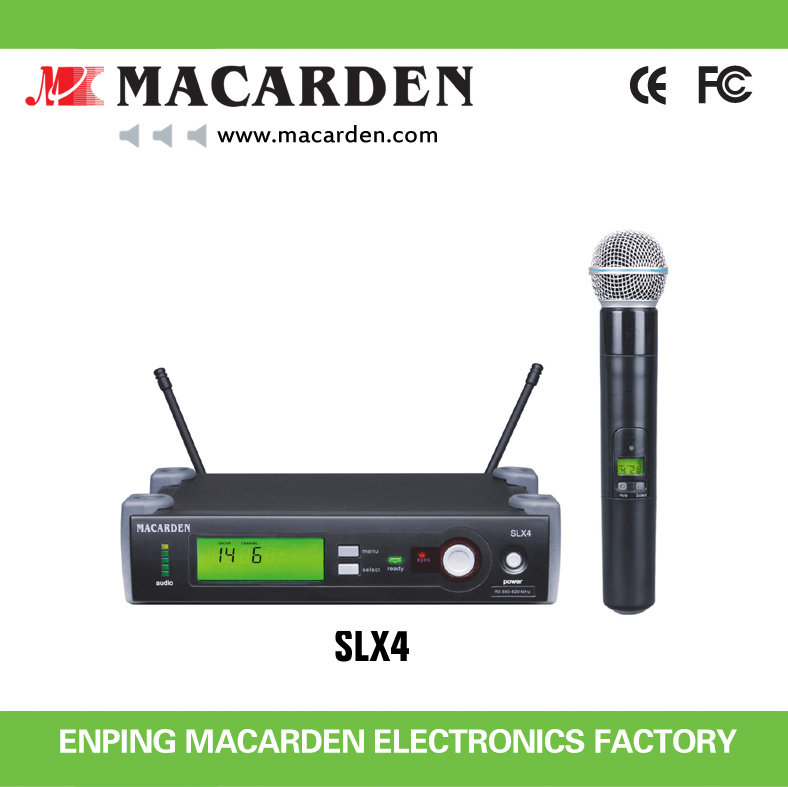

PLL & UHF TRUE DIVERSITY SINGLE CHANNEL WIRELESS MICROPHONE
SYSTEM FEATURES
1. Adopt the PLL Synthesized control technic,
2.True diverysity single channel operation.
3. Transfer datas to transmitter by infrared.
4. Splendid LCD display, shows the RF level, AF level, channel and frequency
5. Using high gain antenna, the space availability is more than 100 meters at the clearing.
SLX4 RECEIVER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Frequency Stability: ±0.005%
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Frequency Response: 50Hz~18KHz±3dB
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:DC power supply
Working range: 100m
Dimensions:19.7X14.7X4.2 cm
SLX4 HANDHELD TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline
SLX4 BODYPACK TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge: Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
