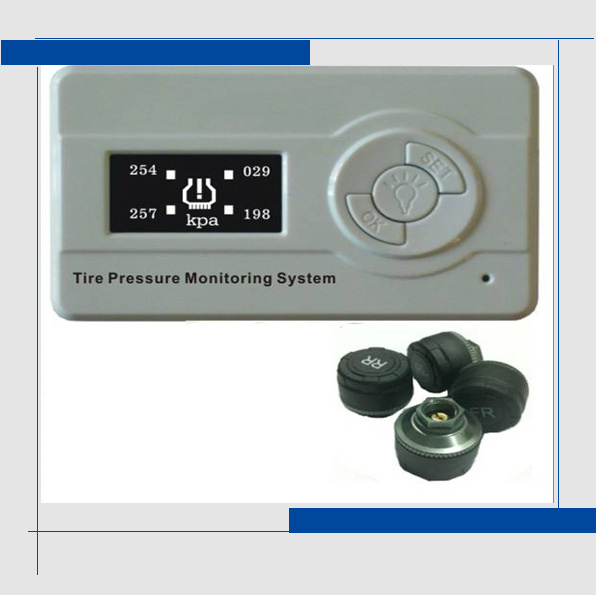

TPMS Tire Pressure Monitoring System External Sensor

Name: TPMS Tire Pressure Monitoring System External Sensor
Brand: ec-portal.com
SKU: 688210652
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 105/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Send Inquiry

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	TPMS

Product Description

TPMS brief introduction

This product includes sensors and one receiver. The sensors are integrated with the special tire valves. Each 4 seconds the sensor will detect the tire pressure and temperature one time, every 2min it will transmit the tire pressure and temperature data in wireless mode to the receiver in the cab, when the pressure is less than 180Kpa, greater than 300Kpa, the sensor will sent the signal to the receiver every 1min. The receiver processes the received data and displays, it compares the data with the setting value and alarms when abnormity happens.

	Sensor Technical Parameters
1	Work Voltage	2.1V~3.5V
2	Pressure measure range	0-550KPA
3	Temperature measure range	-40'C-125'C
4	Working Temperature	-40'C_85'C

5	Work frequence	433.92MHz

We have above 10 years' experience on electronic products developing and manufacturing, one years' experience on international trade and a team with high efficiency. And our factory has kicked off the operation of quality control standard according to ISO9001: 2008. Most of our products have passed CE for European market. Now we have many customers covering the world.

We have whole SMT pipelining, chainlike card bus, wave soldering, and assembly line. Meanwhile, we have rich experience on PCBA, COB and SMT development. Certainly we also provide OEM and ODM service.
