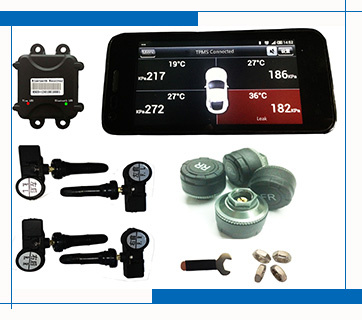

Car or Truck Android Tire Pressure Monitoring System Bluetooth TPMS

Name: Car or Truck Android Tire Pressure Monitoring System Bluetooth TPMS
Brand: ec-portal.com
SKU: 688209342
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	US $ 105/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Send Inquiry

Showroom Product Company Profile

Prod Model:	TS-T08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	TPMS

Product Description

TPMS receiver introduce

TPMS serial get the sensor signal and send to phone;

Voltage is 12V, Cigarette Lighter provide power;
12V=Red, GND=Black;
TPMS serial Communication as the Bluetooth as the main agreement, Passkey is 1234, the name of Bluetooth receive is XQTPMS.
TPMS base function, as the data show, low pressure, high pressure, high temperature alarm. ID setting, and some valve setting, need the phone done.
6. The green LED will be light when the bluetooth is connected.

	Sensor Technical Parameters
1	Work Voltage	2.1V~3.6V
2	Pressure measure range	0-535KPA
3	Temperature measure range	-40'C-125'C
4	Sensor weight	12g(without valve)
5	Waterproof	IPX67
6	Work frequence	433.92MHz

We have above 10 years' experience on electronic products developing and manufacturing, one years' experience on international trade and a team with high efficiency. And our factory has kicked off the operation of quality control standard according to ISO9001: 2008. Most of our products have passed CE for European market. Now we have many customers covering the world.

We have whole SMT pipelining, chainlike card bus, wave soldering, and assembly line. Meanwhile, we have rich experience on PCBA, COB and SMT development. Certainly we also provide OEM and ODM service.
