| Prod Model: |
TS-T08-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Type: |
TPMS |
Product Description

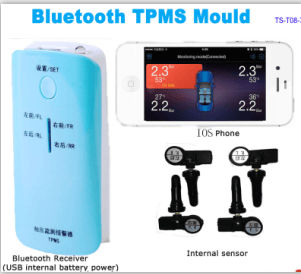

| 1. tire pressure monitoring system sensor Features |
1),weight(not include valve):<10g
2), Operating range: A phone Base on android system and all display devices with Bluetooth receiver
3),pressure measure range:0---535Kpa;
4),pressure tolerance:±10kpa(25°C);
5),temperature measure range:-40°C---125°C
6),temperature tolerance:±3°C
7),working temperature:-40°C---125°C
8),store temperature:-50°C---150°C
9),working voltage:2.1V---3.6V
10),working life:up 5years
2. TPMS system Monitor Features |
1), phone with android system
2),working voltage:DC9V-DC30V;
3),weight:81g(racks not included);
4),displayer working temperature:-20°C---85°C;
5),screen working temperature:-20°C---70°C;
6),power supply:cig liter or VCC(RED),ACC(White),GND(Black)
7),Double-way communication content: ID learning, wheel location swap
8), Monitor Function: High/low pressure, air leaking, voltage, high temperature alarm
9), Integrated tire pressure abnormal indicator and Bluetooth connectivity
We have above 10 years' experience on electronic products developing and manufacturing, one years' experience on international trade and a team with high efficiency. And our factory has kicked off the operation of quality control standard according to ISO9001: 2008. Most of our products have passed CE for European market. Now we have many customers covering the world.
We have whole SMT pipelining, chainlike card bus, wave soldering, and assembly line. Meanwhile, we have rich experience on PCBA, COB and SMT development. Certainly we also provide OEM and ODM service.
