| Prod Model: |
touchkit-SAW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5"----22" |
| Resistive: |
4wire or 5wire |
| Screen Type: |
Resistive Touch/Saw /Capacitive/IR |
| Type: |
TFT |
| Aspect Ratio: |
4:3 |
| Feature: |
Touch Display |
| Screen Size: |
≤17" |
| Interface Type: |
HDMI |
Product Description
Circuiting Rating: 5V DC, 35mA
Surface Hardness: 3H
Light Transmission:
Film+Film>77%
Hitting Life Expectancy: Over 35 million
Film+Glass>83%
Scoring Life Expectancy: Over 5 million
Contact Bounce: < 10ms
Operating Temperature: -10 oC ~+60 oC
Resolution: 4096x4096
Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%< 1.0% By Request
Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 0.55mm
Operating Force: 10g~100g
Choices of Glass: Normal Glass, Chemically strengthened glass
Highlight & Benefit
Superior durability and reliability with touch life over 35 million times.
FPC tail technology surpasses those of our competitors.
@ FPC has lower resistance and is more flexible than PET or ITO film used by other suppliers.
Excellent optical performance even with anti-glare hard coating film.
@ Capable of handling spacer dots diameter less then 0.035mm (smallest in the industry).
@ Haze < 6% (best optical performance in the industry).
Various choices of surface treatments available.
@ Anti-Newton ring, anti-glare, special chemical hard coating, anti-reflection.
Dimension of 5-wire touch screen
Model No. Size(inch) External Dimension(mm) View Area Dimension(mm) Active Area Dimension (mm)
TouchKit-1210-W5R 12.1 265 x 200 252.6 x 190.5 248 x 186
TouchKit-1211-W5R 12.1 271 x 206.2 253.5 x 191.5 248 x 186
TouchKit-1510-W5R 15 337 x 257 310 x 235 305 x 228
TouchKit-1511-W5R 15 326.5 x 253.5 310 x 235 305 x 228
TouchKit-1710-W5R 17LCD 366 x 294.5 342 x 274.5 334 x 266.5
TouchKit-1700-W5R 17CRT 362 x 278 339 x 259 324 x 240
TouchKit-1910-W5R 19LCD 404.5 x 330 381 x 305.5 376 x 300.5
|

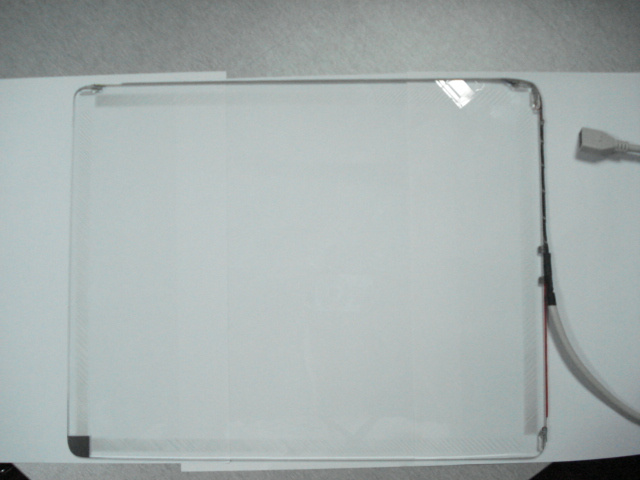

Technology |
Surface Acoustic Wave(SAW) |
|
Resolution |
4096*4096 |
|
Material |
Pure glass |
|
DeviationofError |
2mm |
|
LightTransmission |
90%~92% |
|
Response |
Time Less than 16ms |
|
TouchActivation Force |
Touch force less than 100g (adjust able) |
Durability |
Scratch-free; More than 50,000,000 touchesin one locationwithout
failure. |
|
Surface Hardness |
Mohs'hardness rating of 7 |
|
Multi-PointTouch |
Software discrimination |
|
Response Time |
Less than16ms |
Operating
Temperature |
Touch
Screen |
-20°C to +50°C |
|
Controller |
0°C to +65°C |
Storage Temperature |
Touch
Screen |
-40°C to +70°C |
|
Controller |
-25°C to +85°C |
|
Humidity |
10%-90% RH at 40°C, non-condensing |
|
OperationAltitude |
3000m |
|
A g encyApproval |
CE,FCC |
Products
|
S A W |
Dimension |
Thickness |
|
|
Outside |
V . A |
A . A |
|
|
15" LCD |
330*257 |
308*232 |
306*230 |
3mmmmmm |
|
17" LCD |
382*312 |
346*278 |
340*272 |
3
mmm |
|
19" LCD |
418*341 |
386*307 |
382*305 |
3mm |
|
20.1" LCD |
472*314 |
438*276 |
434*272 |
3mm |
|
21" LCD |
472*362 |
434*328 |
430*324 |
3mm |
|
23.1"LCD |
538*360 |
500*314 |
496*310 |
3mm |
|
15" LCD |
330*257 |
308*232 |
306*230 |
6mm |
|
17" LCD |
382*312 |
346*278 |
340*272 |
6mm |
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
