| Prod Model: |
mp-ir65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Scan Rate: |
50scans/S |
| Touch Point: |
Single or Two-Piont-Touch |
| Minimum Touch Area: |
≥ 5mm |
| Light Transmission: |
94%-100% |
| Light Resistance: |
≥1000CD/M*M |
Product Description
1. Stable performance in different environment;
2. Water-proof, scratch-proof, Explosion-Proof;
3. High Light Transmission-100%.
|

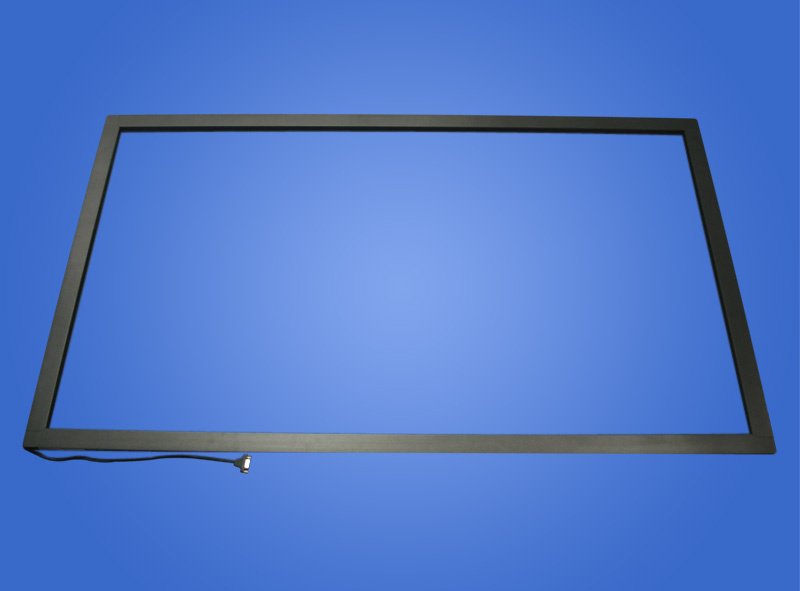

Infrared Touch Screen Product Specification |
|
Size |
32" |
42" |
55" |
65" |
70" |
|
Resolution |
4096*4096 |
|
Scan Rate |
50scans/s |
|
Touch Point |
Single or Two-piont-touch |
|
minimum touch area |
≥ 5mm |
|
Response speed |
<8mS |
|
Light Transmission |
94%-100% |
|
Light resistance |
≥1000cd/m*m |
|
Operating |
USB without driver |
|
Material |
Metal frame+ glass panel |
|
Humility |
|
Operation Humility |
40%-90% RH |
|
Storage Humility |
40%-90% RH |
|
Temperature |
|
Operation Temperature |
-40°C~+70°C |
|
Storage Temperature |
-40°C~+85°C |
|
IP Degree |
IP 65 |
|
Life Time |
≥7 Years |
|
Operating Voltage |
+4.75V~+5.25V |
|
Power |
<1 W |
|
Operation system |
Win7 |
|
Dimension |
|
Boundary Dimension |
758(L)*453(W)*14(H) |
991(L)*584(W)*14(H) |
1270(L)*741(W)*14(H) |
1489(L)*864(W)*14(H) |
1609.5 (L)*931.5(W)*14(H) |
|
Visible Area |
701(L)*396(W) |
934(L)*584(W) |
1489(L)*864(W) |
1432(L)*807(W) |
1552.5(L)*874.5(W) |
|
Touch Area |
697.8(L)*392.8(W) |
930.8(L)*523.8(W) |
1428.8(L)*803.8(W) |
1428.8(L)*803.8(W) |
1549.3(L)*871.3(W) |
