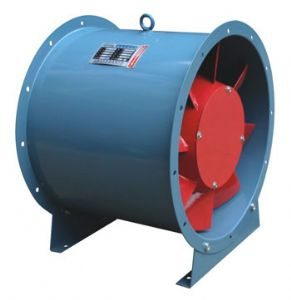

Swf Series Mixed-Flow Fans
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5-16 |
| Voltage: |
110V/230V/380-450V |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Blade Material: |
Cast Iron |
Product Description
Product Description:
SWF series mixed-flow fans are novel and intermediate fans between axial-flow fans and centrifugal fans,they absorb the advantages from both above fans.The total pressure is higher than the same sized axial-flow fan;the air-flow rate is larger than the same sized centrifugal fan,they have the advantages such as wide and effective operational zone,high efficiency etc.They are widely used for air ventilation systems in the offices,buildings,hotels,large-size high-grade civil purpose architectures etc,they can also be used for ventilation in the mining and industrial enterprises such as freezing houses,textile plants and so on in order to replace for the low-pressure centrifugal fans or high-pressure axial-flow fans.
|
Fan Number |
Rotation Speed |
Volume Flow |
Total Pressure |
Power |
Noise |
Weight |
|
N o |
rpm |
m 3 /h |
Pa |
KW |
dB(A) |
Kg |
|
4 |
1450 |
3053-4302 |
212-143 |
0.37 |
71 |
52 |
|
4.5 |
1450 |
3392-4552 |
265-207 |
0.55 |
73 |
62 |
|
5 |
1450 |
5252-7433 |
326-220 |
1.1 |
77 |
80 |
|
6 |
1450 |
8121-10000 |
325-200 |
1.5 |
79 |
110 |
|
7 |
1450 |
11780-18880 |
470-329 |
3 |
82 |
175 |
|
8 |
960 |
18636-25467 |
382-193 |
4 |
82 |
223 |
|
9 |
960 |
27174-34206 |
430-282 |
5.5 |
86 |
285 |
|
10 |
960 |
36916-44054 |
371-288 |
7.5 |
86 |
325 |
|
11 |
960 |
43572-48729 |
376-310 |
11 |
86 |
430 |
|
12 |
720 |
57226-64292 |
498-429 |
15 |
91 |
550 |
|
13 |
720 |
63699-71565 |
508-441 |
15 |
91 |
580 |
SAYI electric Co., Ltd is located at east sea, and the traffic is very convenient. It's near to 104 national high way and the exit of yongtaiwen speedway. It's about 18km from taizhou airport, Daxi town is a very important town in the southern industry of taizhou city as the enviroment is graceful and the hills are beautiful as well as the putuo mountain in the east.
The site area of our company is 30, 000m2, while the building area is 50, 000m2. The registered capital of our company is USD12, 000, 000, the capital asserts is 50 million and the current assets is 60million. We have more than 500 staffs, which of them are over 80 of advanced, secondary and primary professional technical staffs. Our company is member of fan guild of China, which professional research, produce, sale and service the industrial fan series products.
The Max, capital of SAYI is the"person with ability"and "famous brand name". Our company has abundant technical force and topping testing center, R and D center, mould process center, modem standard plant and the advanced peoduction line and large equipemtn(including painting production line, electrophoresis line, numerical control plasma, fast assemble line, utomatic and fast punch and automatic winding equipment).
SAYI is based on the advanced of science and technology and the unique management concept, carrying our the quality management system of ISO 9001: 2000 widely, and the products carrying out the IEC standard, so the qualityis improving that our company is enlarging ceaselessly.
In the recently few years, we nearly cooperate with scientific research branches and colleges. We have been provided with ability of design testing set., Moreover we mainly based on the industrial fan, and our sales network is all over the wolrd.
Welcome all the customers of the world to do business with us, we are looking forward to create the resplendence with you.
