| Prod Model: |
YWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
300mm |
| Hz: |
50/60 |
| Voltage: |
220/380V |
| Power Supply: |
Electric |
| Application: |
Industrial |
| Remote Control: |
Without Remote Control |
| Timer: |
Without Timer |
| Certification: |
UL |
| Speed: |
1 Speed |
| Power: |
100W-300W |
| Material: |
Metal |
| Installation: |
Wall Mounted |
| Type: |
Axial Flow Fan |
Product Description
1, PRODUCT OVERVIEW

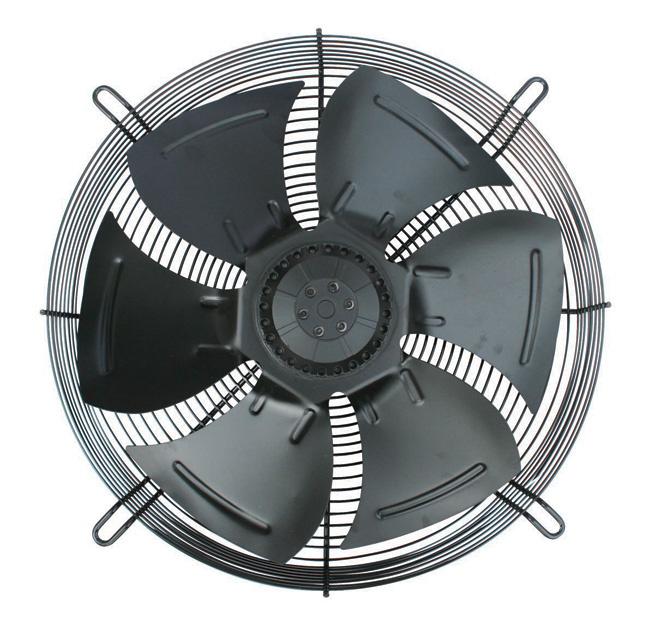

1), YWF series axial fan motors are external rotor fan motors with the characteristics of compact structure, convenient installation, reliable operation, low noise, energy saving and high efficiency.
2), Axial Exhaust Fans For Air Conditioner are divided into singlephrase asynchronous capacitor fan motor and threephrases asynchronous fan motor which are widely used in condenser, evaporator and other refrigeration equipment and ventiliating cycle areas.
3), The standard length of the electrical wire on the fan is 1.5m, and we can also provide connection box to fan motors for clients' choices.
4), The applicable environment temperature of the fan motors used in condensers is from 0oC to +60oC, and that of the fan motors used in evaporators is from -30oC to 0oC.
5), The average working life of motors is more than 30000 hours.
|
MODEL |
NO.ON THE CURVE |
VOLTAGE
V |
FREQUENCY
Hz |
MAX.CURRENT DRAW
A |
MAX.POWER input
W |
SPEED
R/min |
NOISE
|
CAP ACITANCE
uF |
AIR VOLUME m³/h |
NET.WEIGHT
Kg |
|
YWF4D-300MS(B)-5F |
A |
380 |
50 |
0.2 |
70 |
1350 |
57 |
- |
1650 |
3.5 |
|
YWF4E-300MS(B)-5F |
B |
220 |
50 |
0.36 |
75 |
1380 |
59 |
2 |
1600 |
3.5 |
|
YWF4E-300MS(B)-5F |
C |
230 |
60 |
0.52 |
120 |
1650 |
59 |
3 |
1800 |
3.5 |
