Sf Industrial Axial Fan 8A
| Price: |
US $ 96-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2-14 |
| Voltage: |
110V/230V/380-450V |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Blade Material: |
Cast Iron |
Product Description
Performance Introduction

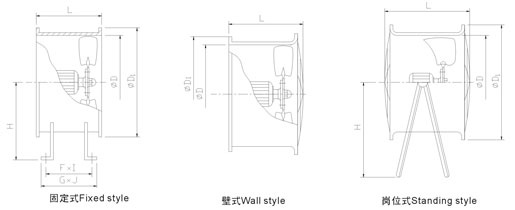

Model SF series axial-flow ventilator has smooth streamline surface with exceptionally rigidity,firm paddle-wheel structure,even and flat screen cover,elegant and pleasing outline and tones.Model SF series fan is divided into pipline type,stand type,wall type and fixed type four kinds according to the use requirements.It is separated into12 machine numbers according to the paddle-wheel diameter.
This series product is widely applicable for the wall type exhaust,post blast,pipline ventilation in the mining and industrial enterprises,civil purpose buildings.It can also be used in the working occasions of chemical,light industry,food,medicine,metallurgy,power station,communications etc and the storage ventilation air-conditioner system.
|
Fan Number |
Rotation Speed |
Volume Flow |
Total Pressure |
Power |
Noise |
|
N o |
rpm |
m 3 /h |
Pa |
KW |
dB(A) |
|
2 |
2800 |
1300 |
140-96 |
0.12 |
66 |
|
2.5 |
2800 |
2100 |
215-150 |
0.25 |
72 |
|
2.5 |
1450 |
1000 |
35-16 |
0.09 |
53 |
|
3 |
2800 |
3000 |
230-160 |
0.37 |
74 |
|
3 |
1450 |
2000 |
59-25 |
0.18 |
61 |
|
3.5 |
2800 |
11000 |
310-210 |
1.1 |
78 |
|
4 |
2800 |
11000 |
320-220 |
1.5 |
83 |
|
4 |
1450 |
5300 |
167-80 |
0.55 |
74 |
|
4 |
1450 |
5300 |
167-80 |
0.37 |
74 |
|
4 |
960 |
4200 |
90-60 |
0.25 |
68 |
|
5 |
1450 |
9300 |
200-90 |
0.75 |
78 |
|
5 |
960 |
7700 |
120-80 |
0.37 |
75 |
|
6 |
1450 |
18700 |
300-90 |
2.2 |
85 |
|
6 |
960 |
13000 |
180-80 |
1.1 |
79 |
|
7 |
1450 |
24500 |
350-150 |
3 |
87 |
|
7 |
960 |
21500 |
210-120 |
2.2 |
82 |
|
8 |
1450 |
28000 |
380-100 |
4 |
88 |
|
8 |
960 |
25000 |
230-90 |
2.2 |
85 |
|
10 |
960 |
50000 |
260-120 |
4 |
88 |
|
12 |
720 |
58000 |
280-150 |
4 |
90 |
|
14 |
720 |
72000 |
320-160 |
5.5 |
93 |
