Super Narrow Bezel 46'' LCD Video Wall Display
| Price: |
Negotiableunit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1unit |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HL46NDE5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
15 Woring Days After Receipt of The Deposits |
| Backlight Source: |
LED |
| Size(Lxwxh): |
1023.98×578.57×125mm |
| Image Area: |
1018.08×572.67mm |
| Native Resolution: |
1920×1080(FHD) |
| Brightness: |
500CD/M2 or 700CD/M2 |
| Contrast Ratio: |
3500:1 |
| Maximum Consumption: |
300W |
| Working Consumption: |
140W or 160W |
| Bezel Width: |
3.7mm(U/L), 1.8mm(R/B) |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1920x1080 |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Screen Size: |
46inches |
| Type: |
Unit |
| Interface Type: |
VGA, HDMI, DVI |
Product Description
Super Narrow Bezel LCD Video wall Display A.Specification | LCD Module | Diagonal Size | 46" |
| Backlight Source | LED |
| Size(W×H×D) | 1023.98×578.57×125mm |
| Image Area | 1018.08×572.67mm |
| Viewing Angle | 178°(H/V) |
| Native Resolution | 1920×1080(FHD) |
| Brightness | 500cd/m2 or 700cd/m2 |
| Contrast Ratio | 3500:1 |
| Power | AC Voltage | AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption | 300W |
| Working Consumption | 140W or 160W |
| Wstand-by power consumption | ≤2W |
| Bezel | Bezel Width | 3.7mm(U/L),1.8mm(R/B) |
| splicing GAP | 5.5mm/3.5mm |
| Color | Black |
| Net Weight | 33kg |
| Working Conditions | Temperature | 0-50ºC |
| Humidity | 20%-90%(Non-Condensing) |
Features
Ø Space-saving display wall solution
Ø Lower heat output than traditional lamp-based systems
Ø Long panel life as CCFL backlights reduce burn-in and colorations
Ø Stable colors across the entire video wall
Ø Exceptionally narrow bezel resulting in very small seams
Ø Easy to install, service and maintain thanks to front access
Interface| Computer Input/Output | Simulation | VGA(D-Sub15 ) |
| Digital | DVI(DVI-I) |
| HD | HDMI(HDMI A) |
| Working Resolution | 640×480@60Hz~1920×1080@60Hz |
| AV Input/Output | Input | CVBS(BNC) ×4 | S-VIDEO(mini-DIN) | |
| Video standard | CVBS/S-VIDEO: PAL/NTSC/SECAM |
| Control Input/Output | Input | RS-232C(RJ45) |
| Output | RS-232C(RJ45)×2 |
Overview
Ø High Brightness,High Contrast,High Definition.
Ø Brightness Uniformity,Image Stabilization,Better Color Saturation.
Ø Maintained from the front Design(Optional).
Ø Patterned Vertical Alignment,178°Viewing Angle(H&V).
Ø Upright, Wall Hanging (Optional).

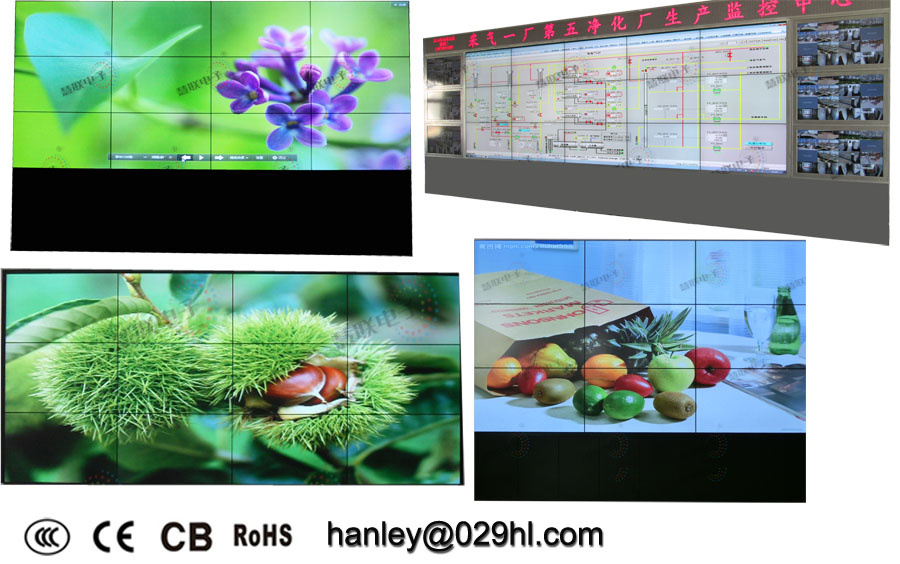

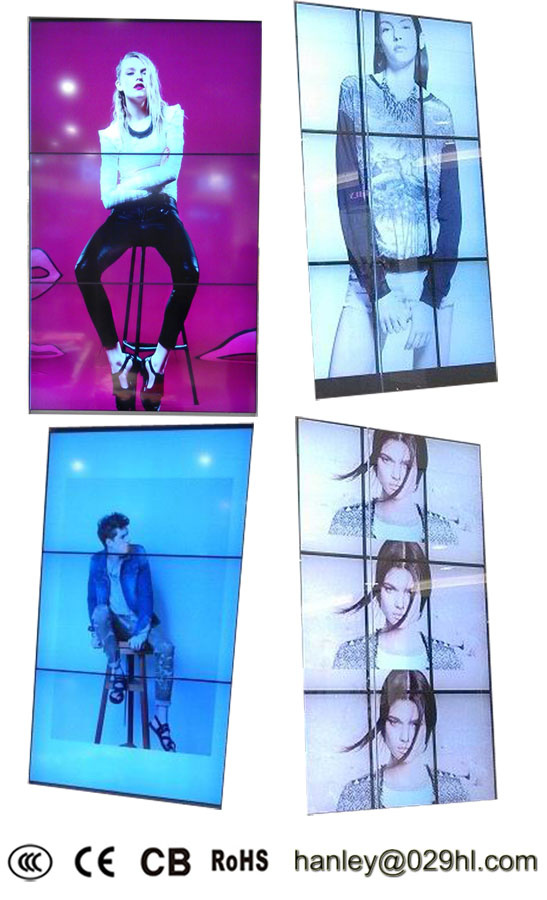

B.Main application case

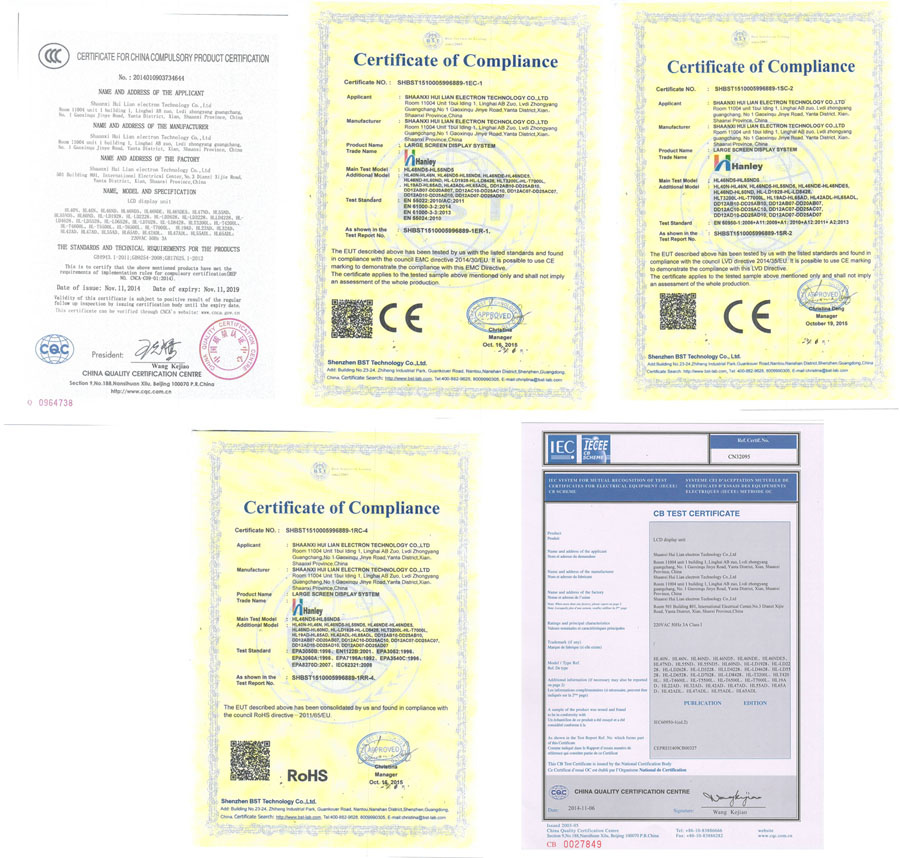

C.Main certificaiton:
D.the tenth annual celebration:
Company:Shaanxi Hanley Electronic Manufacturing Co.,LtdAddress: Xi'anHigh-tech Zone Kam Yip Road, 10th Floor, Tower A territorial waters 11004 Room.Tel: +86-029-68255561-813 68255560 83391813 83391823Fax: +86-29-68255560Mobile phone: +86-13924867583
Shaanxi Hui Lian Electron Technology Co., Ltd. Was established in 2006, which is a high-tech Chinese enterprise specialized in development, production and marketing of DLP/DID large splicing screen, LCD monitor, LCD advertising displays, LCD Touch screen Kiosk, LCD video wall and LED electronic display panel. We have established a nationwide network of sales and efficient after-sales service system in China.
Shaanxi Hui Lian company providing cost-effective products and customer-oriented services. Fully aware of the importance of quality system and environmental protection, we have established the first-class quality control and environmental protection systems. Our company has been awarded the ISO9001: 2000quality management system certificate, and our products have passed such domestic and international certification accreditations as CCC, CE, RoHS CB, and we has authority of big-screen software.
Good product quality, good service attitude, good corporate reputation, Shaanxi Hui Lian Electron Technology Co., Ltd has been in the field of hydropower production scheduling, military command, urban management, mining safety, environment monitoring, fire weather maritime achieved excellent results, also wish become your most trusted long-term partners.
Welcome you to contact us and Join us!
