| Prod Model: |
HL46DW+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
15 Working Days After Receipt of The Deposits |
| Backlight Source: |
LED |
| Size(Wxhxl): |
1023.98×578.57×125mm |
| Viewing Angle: |
178°(H/V) |
| Native Resolution: |
1920×1080(FHD) |
| Brightness: |
500CD/M2 or 700CD/M2 |
| Contrast Ratio: |
3500:1 |
| Maximum Consumption: |
300W |
| Bezel Width: |
3.7mm(U/L), 1.8mm(R/B) |
| Color: |
Black |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1920x1080 |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI, DVI, VGA |
| Type: |
Unit |
| Screen Size: |
46inches |
Product Description
CE ROSE Certification Large LCD Flat splcing Screen | LCD Module | Diagonal Size | 46" |
| Backlight Source | LED |
| Size(W×H×D) | 1025.65×579.84×120mm |
| Image Area | 1018.35×572.54mm |
| Viewing Angle | 178°(H/V) |
| Native Resolution | 1366×768(XGA) |
| Brightness | 450cd/m2 700 cd/m2 |
| Contrast Ratio | 3500:1 |
| Power | AC Voltage | AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption | 350W |
| Working Consumption | 200W |
| Wstand-by power consumption | ≤2W |
| Bezel | Bezel Width | 4.3(U/L)mm,2.4(R/B)mm |
| Optical GAP | 5.5mm/3.5mm |
| Color | Black |
| Net Weight | 33kg |
| Working Conditions | Temperature | 0-50ºC |
| Humidity | 20%-90%(Non-Condensing) |
Features
Ø Space-saving display wall solution
Ø Lower heat output than traditional lamp-based systems
Ø Long panel life as CCFL backlights reduce burn-in and colorations
Ø Stable colors across the entire video wall
Ø Exceptionally narrow bezel resulting in very small seams
Ø Easy to install, service and maintain thanks to front access
Interface
| Computer Input/Output | Simulation | VGA(D-Sub15 ) |
| Digital | DVI(DVI-I) |
| HD | HDMI(HDMI A) |
| Working Resolution | 640×480@60Hz~1920×1080@60Hz |
| AV Input/Output | Input | CVBS(BNC) |
|
|
| Output | CVBS(BNC) |
| Video standard | CVBS:PAL/NTSC/SECAM |
| Control Input/Output | Input | RS-232C(RJ45) |
| Output | RS-232C(RJ45)×2 |
46"LCD Splicing Unit (HL46NDE5/HL46NDE)
LED-backlit Ultra-narrow5.5mm, Brightness 450cd/m2/700 cd/m2
The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, high definition and long life-span. When the units are horizontally and vertically spliced into a whole screen, Hanley LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.
Overview
Ø Unlike front projection, tiled LCDs require less maintenance costs, have a better contrast ratio and are not influenced by ambient light.
Ø Unlike plasma technology, tiled LCDs require less power consumption and are not subject to permanent, irreversible burn-in.
Ø Unlike normal-bezel LCD displays, tiled LCDs offer more scalability, minimize bezel distraction and allow optimal usability of the screen surface with high resolution.
Ø Unlike lamp-based LCD displays, tiled LCDs with LED backlights offer more brightness, optimal image quality and a high life expectancy.
| LCD Module | Diagonal Size | 46" |
| Backlight Source | LED |
| Size(W×H×D) | 1023.98×578.57×125mm |
| Image Area | 1018.08×572.67mm |
| Viewing Angle | 178°(H/V) |
| Native Resolution | 1920×1080(FHD) |
| Brightness | 500cd/m2 or 700cd/m2 |
| Contrast Ratio | 3500:1 |
| Power | AC Voltage | AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption | 300W |
| Working Consumption | 140W or 160W |
| Wstand-by power consumption | ≤2W |
| Bezel | Bezel Width | 3.7mm(U/L),1.8mm(R/B) |
| splicing GAP | 5.5mm/3.5mm |
| Color | Black |
| Net Weight | 33kg |
| Working Conditions | Temperature | 0-50ºC |
| Humidity | 20%-90%(Non-Condensing) |

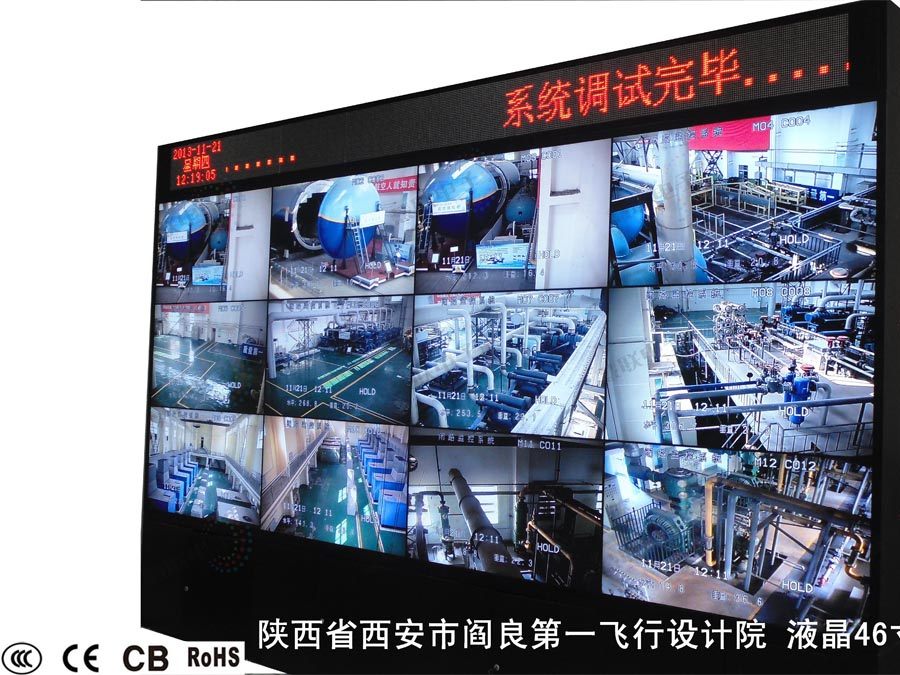

B.Main application case

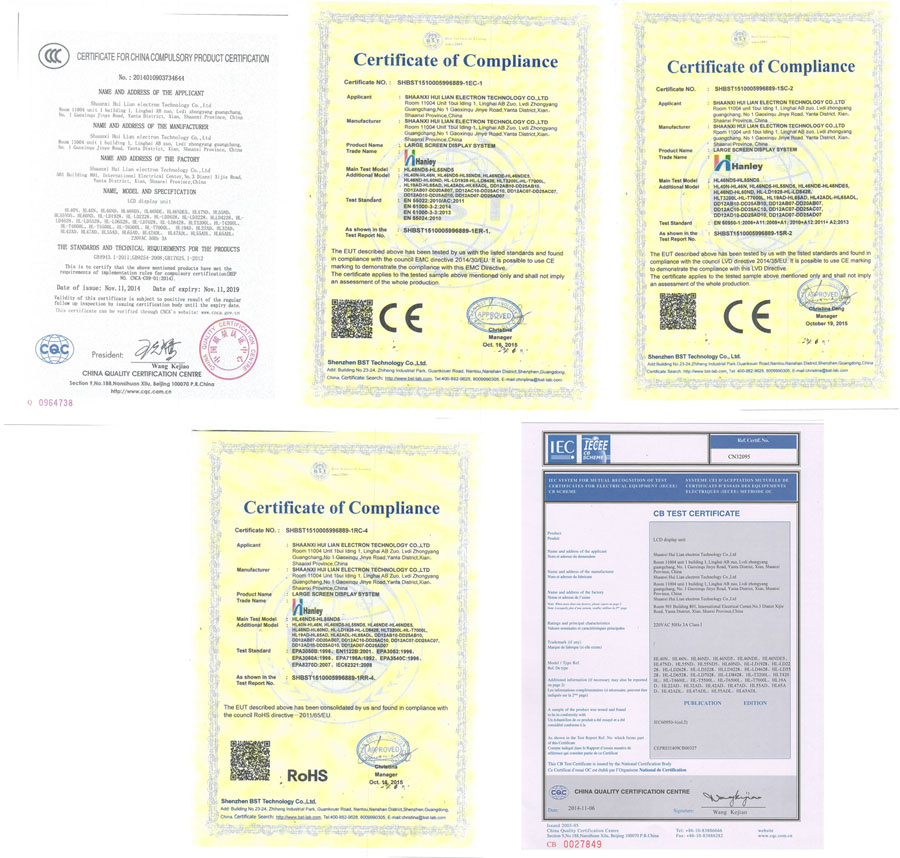

C.Main certificaiton:

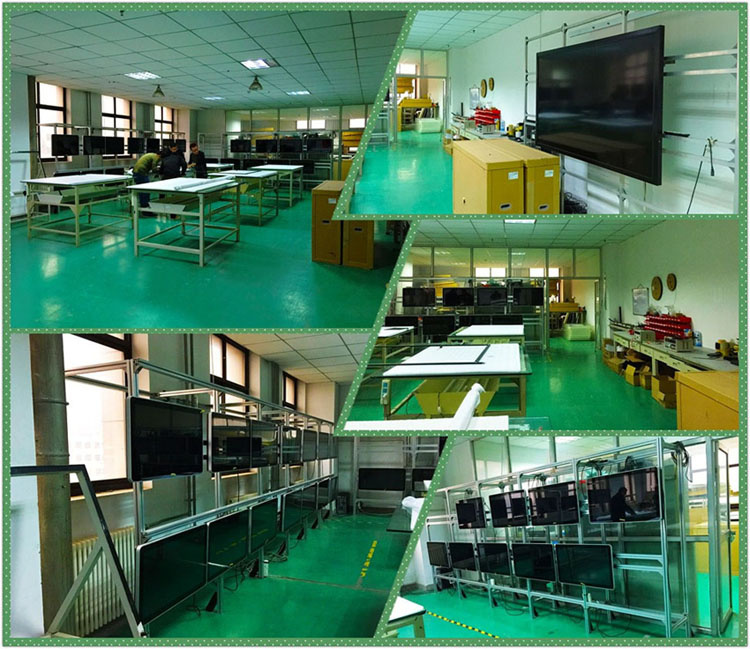

D.workshop:
Company:Shaanxi Hanley Electronic Manufacturing Co.,Ltd
Address: Xi'anHigh-tech Zone Kam Yip Road, 10th Floor, Tower A territorial waters 11004 Room.
Tel: +86-029-68255561-813 68255560 83391813 83391823
Fax: +86-29-68255560
Mobile phone: +86-13924867583
Shaanxi Hui Lian Electron Technology Co., Ltd. Was established in 2006, which is a high-tech Chinese enterprise specialized in development, production and marketing of DLP/DID large splicing screen, LCD monitor, LCD advertising displays, LCD Touch screen Kiosk, LCD video wall and LED electronic display panel. We have established a nationwide network of sales and efficient after-sales service system in China.
Shaanxi Hui Lian company providing cost-effective products and customer-oriented services. Fully aware of the importance of quality system and environmental protection, we have established the first-class quality control and environmental protection systems. Our company has been awarded the ISO9001: 2000quality management system certificate, and our products have passed such domestic and international certification accreditations as CCC, CE, RoHS CB, and we has authority of big-screen software.
Good product quality, good service attitude, good corporate reputation, Shaanxi Hui Lian Electron Technology Co., Ltd has been in the field of hydropower production scheduling, military command, urban management, mining safety, environment monitoring, fire weather maritime achieved excellent results, also wish become your most trusted long-term partners.
Welcome you to contact us and Join us!
