| Prod Model: |
HL55ND5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
15 Working Days After Receipt of The Deposits |
| Backlight Source: |
LED |
| Size(Wxhxl): |
1215.5X;686.3X125mm |
| Viewing Angle: |
178°(H/V) |
| Native Resolution: |
1920×1080(FHD) |
| Brightness: |
500CD/M2 or 700CD/M2 |
| Contrast Ratio: |
3500:1 |
| Maximum Consumption: |
300W |
| Bezel Width: |
3.7mm(U/L), 1.8mm(R/B) |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1920x1080 |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI, DVI, VGA |
| Type: |
Unit |
| Screen Size: |
55inches |
Product Description
CE,ROSH certificaiton LCD Splcing screen A.Specification
| LCD Module | Diagonal Size | 55" |
| Backlight Source | LED |
| Size(W×H×D) | 1215.5×686.3×125mm |
| Image Area | 1209.6×680.4mm |
| Viewing Angle | 178°(H/V) |
| Native Resolution | 1920×1080(FHD) |
| Brightness | 500cd/m2 or 700cd/m2 |
| Contrast Ratio | 4000:1 |
| Power | AC Voltage | AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption | 400W |
| Working Consumption | 160W or 200W |
| Wstand-by power consumption | ≤2W |
| Bezel | Bezel Width | 3.7mm(U/L),1.8mm(R/B) |
| Optical GAP | 5.5mm/3.5mm |
| Color | Black |
| Net Weight | 38.5kg |
| Working Conditions | Temperature | 0-50ºC |
| Humidity | 20%-90%(Non-Condensing) |
Interface
| Computer Input/Output | Simulation | VGA(D-Sub15 ) |
| Digital | DVI(DVI-I) |
| HD | HDMI(HDMI A) |
| Working Resolution | 640×480@60Hz~1920×1080@60Hz |
| AV Input/Output | Input | CVBS(BNC) ×4 | S-VIDEO(mini-DIN) | |
| Video standard | CVBS/S-VIDEO: PAL/NTSC/SECAM |
| Control Input/Output | Input | RS-232C(RJ45) |
| Output | RS-232C(RJ45)×2 |
Features
Ø Space-saving display wall solution
Ø Lower heat output than traditional lamp-based systems
Ø Long panel life as CCFL backlights reduce burn-in and colorations
Ø Stable colors across the entire video wall
Ø Exceptionally narrow bezel resulting in very small seams
Ø Easy to install, service and maintain thanks to front access
Interface
| Computer Input/Output | Simulation | VGA(D-Sub15 ) |
| Digital | DVI(DVI-I) |
| HD | HDMI(HDMI A) |
| Working Resolution | 640×480@60Hz~1920×1080@60Hz |
| AV Input/Output | Input | CVBS(BNC) | | |
| Output | CVBS(BNC) |
| Video standard | CVBS:PAL/NTSC/SECAM |
| Control Input/Output | Input | RS-232C(RJ45) |
| Output | RS-232C(RJ45)×2 |
46"LCD Splicing Unit (HL46NDE5/HL46NDE)
LED-backlit Ultra-narrow5.5mm, Brightness 450cd/m2/700 cd/m2
The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, high definition and long life-span. When the units are horizontally and vertically spliced into a whole screen, Hanley LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.
Overview
Ø Unlike front projection, tiled LCDs require less maintenance costs, have a better contrast ratio and are not influenced by ambient light.
Ø Unlike plasma technology, tiled LCDs require less power consumption and are not subject to permanent, irreversible burn-in.
Ø Unlike normal-bezel LCD displays, tiled LCDs offer more scalability, minimize bezel distraction and allow optimal usability of the screen surface with high resolution.
Ø Unlike lamp-based LCD displays, tiled LCDs with LED backlights offer more brightness, optimal image quality and a high life expectancy.
| LCD Module | Diagonal Size | 46" |
| Backlight Source | LED |
| Size(W×H×D) | 1023.98×578.57×125mm |
| Image Area | 1018.08×572.67mm |
| Viewing Angle | 178°(H/V) |
| Native Resolution | 1920×1080(FHD) |
| Brightness | 500cd/m2 or 700cd/m2 |
| Contrast Ratio | 3500:1 |
| Power | AC Voltage | AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption | 300W |
| Working Consumption | 140W or 160W |
| Wstand-by power consumption | ≤2W |
| Bezel | Bezel Width | 3.7mm(U/L),1.8mm(R/B) |
| splicing GAP | 5.5mm/3.5mm |
| Color | Black |
| Net Weight | 33kg |
| Working Conditions | Temperature | 0-50ºC |
| Humidity | 20%-90%(Non-Condensing) |

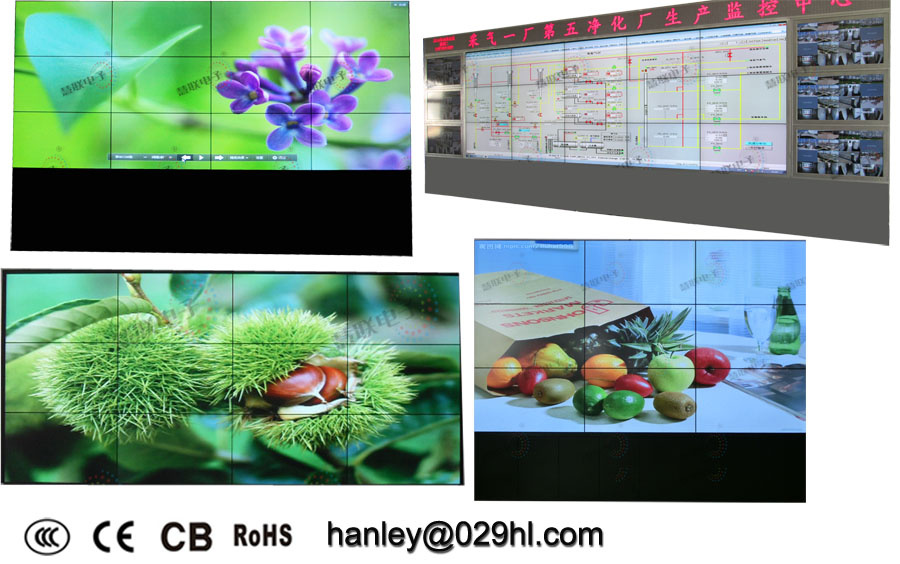

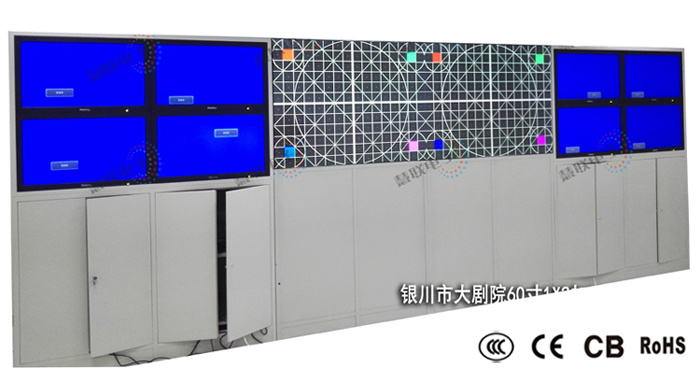

B.Main application case
C.Main certificaiton:

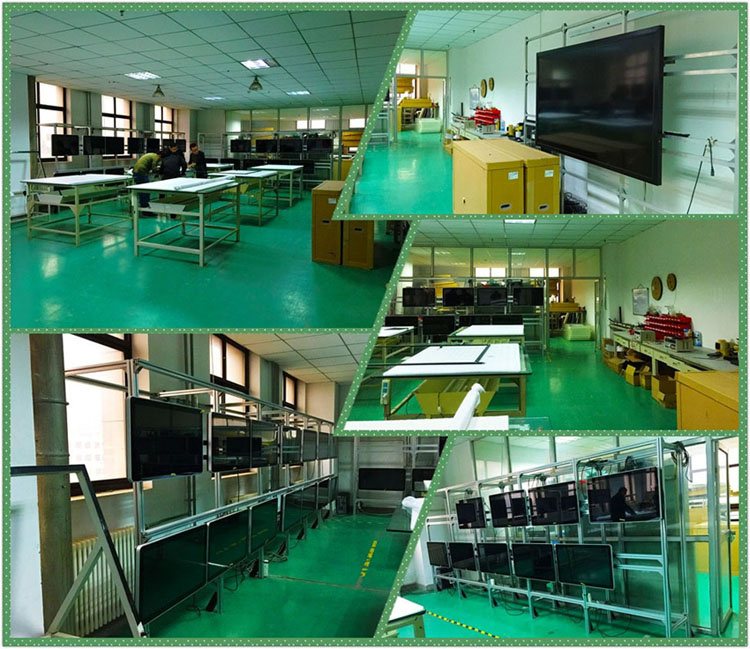

D.workshop:
