| Prod Model: |
ZTDB-08DB1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss304 or Ss316L |
| Surface Finish: |
Mirror Polish |
| Cartridge: |
12" 16" |
Product Description

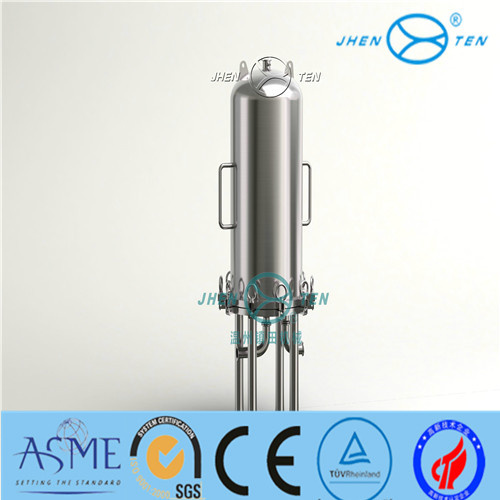

Stainless steel WINE filter
Lenticular Filter Housing for wine&beer filtration
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Jhenten
Model Number: Lenticular filter 12ZB-16ZB
After-sales Service Provided: Overseas service center available
Product name: Lenticular filter housing
Certifications: CE, SGS, ISO 9001
Surface Finish: Mirror Polish
Filter module: 12" or 16"Module
Packaging & Delivery
Packaging Details: Plywood Case
Delivery Detail: Within 20 Days upon deposit and approval all products details
Specifications
Lenticular Filter
1. Suitable for 12" and 16"
2. With CE, SGS&ISO9001
3. ASME BPE or 3A
4. Suitable for Pall, CUNO module
Lenticular filter housing Brief introduction
Lenticular filters have a long history in Food and Beverage applications, They arose out of the need to package sheet-based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications. Jhenten's lenticular filter housing can be suitable for international brand 's filter disk with lower cost. The surface finish totally arrive sanitary grade requirement.
Jhenten's lenticular can be suitable for international big brand's filter module, which can reduce much cost. Such as CUNO, Pall, Millipore's filter module.
Lenticular Filter housing's advantages:
Versions available in high-grade AISI 304 and 316 L stainless steel
150PSI rated and up to 300º F
This apparatus was manufactured and tested under the standard of ASME BPE or 3A standard,
This apparatus meet GMP standard
All wled-seam are argon are welded
Hygienic design by avoiding dead space, Sanitary Filter Housing, No Dead Corner
All surfaces that come in contact with the product are mirror polish or electro polished, Ra< 0.4 µ M
1.5" Pressure Gauge Ports, 1"Drain, 1/4" air Vent"
Operating Parameters
Max Operate pressure: 10bar
Max Operate temperature: 150º C
Industrial sure tolerance on weld: 0.85
Corrosion by acid 0 mm
Applications
Wine
Food &Beverage
Process Water
Pharmaceutical Liquids
Biotechnology & Laboratory
Medical &Medical Device
Chemical And Painting
Design Drawings
Main Parmeters
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | W kg) |
| 8ZB1-2085 | 930 | 530 | 390 | 270 | 250 | 300 | 34.9 |
| 8ZB2-2085 | 1200 | 800 | 660 | 540 | 250 | 300 | 41.4 |
| 8ZB3-2085 | 1470 | 1070 | 930 | 810 | 250 | 300 | 47.9 |
| 8ZB4-2085 | 1740 | 1340 | 1200 | 1080 | 250 | 300 | 54.4 |
| 12ZB1-305 | 930 | 530 | 370 | 270 | 350 | 400 | 59.4 |
| 12ZB2-305 | 1200 | 800 | 640 | 540 | 350 | 400 | 67.9 |
| 12ZB3-305 | 1470 | 1070 | 910 | 810 | 350 | 400 | 76.4 |
| 12ZB4-305 | 1740 | 1340 | 1180 | 1080 | 350 | 400 | 84.9 |
| 16ZB1-410 | 950 | 530 | 350 | 270 | 450 | 500 | 83.5 |
| 16ZB2-410 | 1220 | 800 | 620 | 540 | 450 | 500 | 74.9 |
| 16ZB3-410 | 1490 | 1070 | 890 | 810 | 450 | 500 | 86.3 |
| 16ZB4-410 | 1760 | 1340 | 1160 | 1080 | 450 | 500 | 97.7 |
Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery. In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products.
We have been meeting global demand of high quality &technical support to our clients. Our products cover from all kinds sanitary filter, cartridge filter, bag filter, mixing tank, storage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, Mineral water, liquor and cosmetics.
No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides We have obtained the sanitary license and honour of high quality&honesty from authority
