| Prod Model: |
ZTKQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss304 or Ss316 |
| Certifications: |
ASME Ce, SGS, ISO 9001 |
| In-Outlet: |
Flange, Tri-Clamp, Thread |
| Options: |
Pressure Gauge Drain Valve |
| Filter Number: |
Can Be Custom Made |
| Efficiency: |
Height |
Product Description

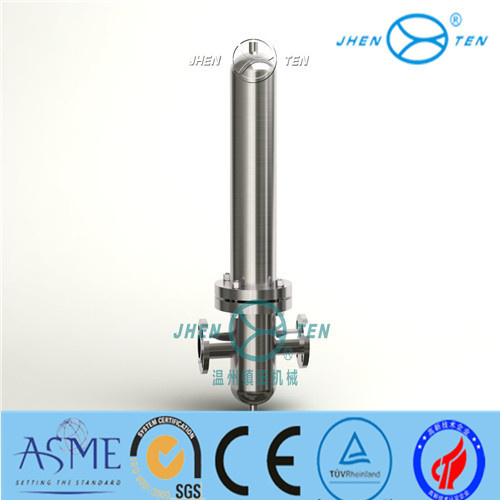

1 Round Gas Filter Steam Filter for Laboratories
Technical specification
| Name | |
| Max Operate pressure(mpa) | 1.0 |
| Max Operate temp ( ºC) | 110 |
| Pressure tolerance on weld | 0.85 |
| Corrosion by acid | 0 |
Description:
Jhenten's steam filter is desigened to help remove both moisture and solid particles,such as pipe scale and rust from the steam supply.It is an stainless steel unit with a removable sintered austenitic stainless steel element.A single closure nut allows for ease of maintenance ,while a cleanable element ensures optimum efficiency and prolonged life.
Feature:
• The sterilization function in the field of biotechnology, medical.• Sterilizing for beverage and food, filtering steam for heating food.• Filtering dampness in laboratory such as electronics industry, biotechnology, pharmaceutical etc.The main use of the steam filter is to clean up factory or plant steam to reduce levels of contmatios,such as boiler off take,so that the end productis not adversely affected.
Main parameters
| Item | No.of cartridges | A | B | C | D | E | F |
| ZTKQ-1R5 | 1*5' | 150 | 102 | 65 | 90 | 60 | 95 |
| ZTKQ-1R10 | 1*10' | 300 | 102 | 65 | 90 | 60 | 95 |
| ZTKQ-1R20 | 1*20' | 550 | 102 | 65 | 90 | 60 | 95 |
| ZTKQ-1R30 | 1*30' | 800 | 102 | 65 | 90 | 60 | 95 |
| ZTKQ-1R40 | 1*40' | 1050 | 102 | 65 | 90 | 60 | 95
|
Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery. In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products.
We have been meeting global demand of high quality &technical support to our clients. Our products cover from all kinds sanitary filter, cartridge filter, bag filter, mixing tank, storage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, Mineral water, liquor and cosmetics.
No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides We have obtained the sanitary license and honour of high quality&honesty from authority
