| Prod Model: |
Tube Fitler |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss304 |
| Certificate: |
CE, SGS, ISO9001 |
Product Description

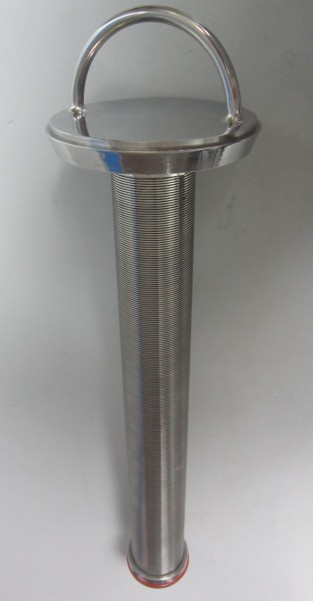

Stainless Steel Angle tube StrainerProduct Advantages
1, High flow rates
2, Low pressure drop, energy-saving
3, High dirt holding capacity
4, Positive sealing arrangement to avoid by passing
5, Easy to operate & low maintenance
6, Low down time
7, Custom design services
8. Manufacturer, Factory Price
Operating Parameters
Max Operate pressure: 0.7MPa)
Max Operate temperature: 110 C
Pressure tolerance on weld: 0.85
Corrosion by acid: 0 mm
Product Description
Surfaces are polished to 0.4 um Ra for fast and easy surface
Cleaning, which minimizes therisk of contamination. Improves clean and enhances corrosion resistance.
Jhenten's tube filter connection can be accordance with customer's site tube type and dimension.
Such tube filter is easy to operate and maintenance with low cost.
| Dimension Parameters | In-outlet2" | In-outlett2.5" | In-outlett3" |
| | 46 cartridge | 48 cartridge | 56 cartridge | 58 cartridge | 46 cartridge | 48 cartridge | 56 cartridge | 58 cartridge | 56 cartridge | 58 cartridge |
| A:Total height | 621 | 833 | 621 | 833 | 621 | 833 | 621 | 833 | 621 | 833 |
| B:The distance from inlet to center | 89 | 108 | 127 |
| C:Diameter | Φ101.6 | Φ129 | Φ101.6 | Φ129 | Φ129 |
| D:InletN1 to filter cover height | 100 | 100 | 100 |
| | [Qty. of cartridges] | [Model of cartridge] | [Shell material] | [In-outlet Connections] | [Dimension] | [O-ring] |
| JTGTF | 1R | 46 | 4 | K | 20 | E |
| | 1R=1pc | 46, 48, 56, 58 | 4= 304 | F=Flange | 20=2" | E=EPDM |
| | | Example: 46, "4" means diameter is Φ4, "6" means screen filter length is 600 mm
| 6= 316L | K=Tri-clamp | 25=2.5" | P=PTFE |
| | | | | L=Thread | 30=3" | V=Viton |
| | | | | | | S=Silicone |
Item |
Inlet/out dimension |
A |
B |
C |
D |
E |
|
ZTRP-03R |
2" |
860 |
650 |
600 |
760 |
550 |
500 |
102 |
50 |
90 |
|
ZTRP-07R |
2.5" |
860 |
650 |
600 |
760 |
500 |
500 |
102 |
50 |
90 |
|
ZTRP-9R |
3" |
860 |
650 |
600 |
740 |
530 |
480 |
125 |
50 |
90 |
|
ZTRP-15R |
4" |
860 |
650 |
600 |
740 |
510 |
480 |
154 |
50 |
120 |
Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery. In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products.
We have been meeting global demand of high quality &technical support to our clients. Our products cover from all kinds sanitary filter, cartridge filter, bag filter, mixing tank, storage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, Mineral water, liquor and cosmetics.
No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides We have obtained the sanitary license and honour of high quality&honesty from authority
