| Prod Model: |
GALAXIAS4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Recommend Size: W 800* H3000: |
Optima Visual Distance:9m |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
RoHS |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
| Pixel Pitch: |
4 |
| Pixel Density: |
2150 |
Product Description
Product Description

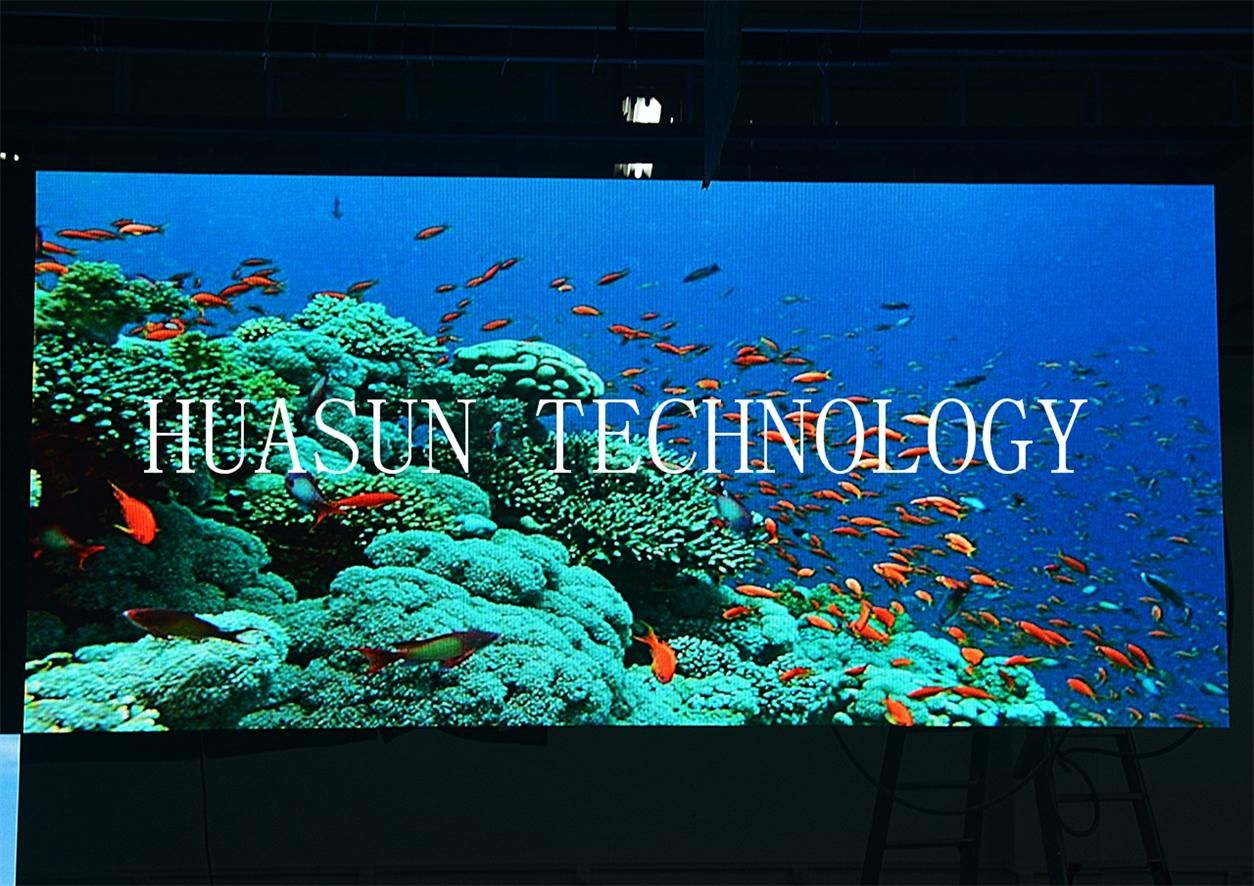

Galaxias Series- Patent
Galaxias series flexible LED display are our latest specialty products. They've fundamentally changed the stereotype image of LED displays.
Features:
1. High contrast and brightness
2. Fast and easy to assemble
3. Extra flexibility, weighs under 10 Kg/ m2 and thinner than 25mm, Very convenient to use and move, saving a lot of transportation and assebliming costs
4. Outstanding image quality and stable performance with a refreshing rate at 10, 000Hz
5. Wide viewing angle
6. Unbeatable flexibility allows the display to be widely used for preparation of various shapes such as round, triangle, cylinder, and cone, etc The manufacturing material is DFR which makes the displays inflammable, scratch proof, heavy duty, safe, and reliable
Specifications
| Model No | Galaxias 4 |
| Pixel Pitch | 4.6mm |
| Density | 45512 Dot / m² |
| Pixel Configuration | RGB 3-IN-1 SMD LED |
| Brightness(White) | 2150 nit |
| Optima visual distance | 4m |
| Max.Power Consumption | 280W/m² |
| Average.Power Consumption | 95W/m² |
Recommendation size
(W=Width
H=Height
T=Thickness) | W: 600mm
H:1800mm
T: 25mm |
| Weight | 11.5Kg/Sq.m |
| Work voltage | DC 5V |
| Brightness level | 16 levels |
| Bit depth per color | 16 bit |
| Bit depth per pixel | 48 bit |
| Visual Angle | Horizontal: 120; Vertical: 120 |
| Data Refresh Rate | ≥10000Hz |
| Display mode | 1280×1024 |
| Drive mode | Constant current |
| Signal type | AV,S-Video,VGA,CVBS,HDMI,DVI |
| Operating System | Windows2000/XP/Vista/Windows7 |
| Control Distance | HSYV; <100m |
| Face material | DFR velvet drapery |
| Ingress Protection | IP 43 |
| Ambient Temperature | -20 ~ +50 °C |
| Relative Humidity | 10% ~ 90% |
| Installation | Hang |
| Power system | Power-600, Power-1200 Power system |
| Safety certificate | CE FCC ROHS |
After-Sale Service
1. Warranty: 1 Years. Lifetime free maintenance and upgrade.
2. Free reserve part
3. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
4. Free technician training.
