Prod Model: |
Galaxias4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Recommend Size: W 800* H3000: |
Optima Visual Distance:9m |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Scanning Mode: |
1/8 Scan |
Certification: |
RoHS |
Pixel Configuration: |
1R,1G,1B |
Application: |
Shopping Guide |
IP Rating: |
IP43 |
System Operating Platform: |
WIN XP |
Pixel Pitch: |
4 |
Pixel Density: |
2150 |
Product Description
Product Description

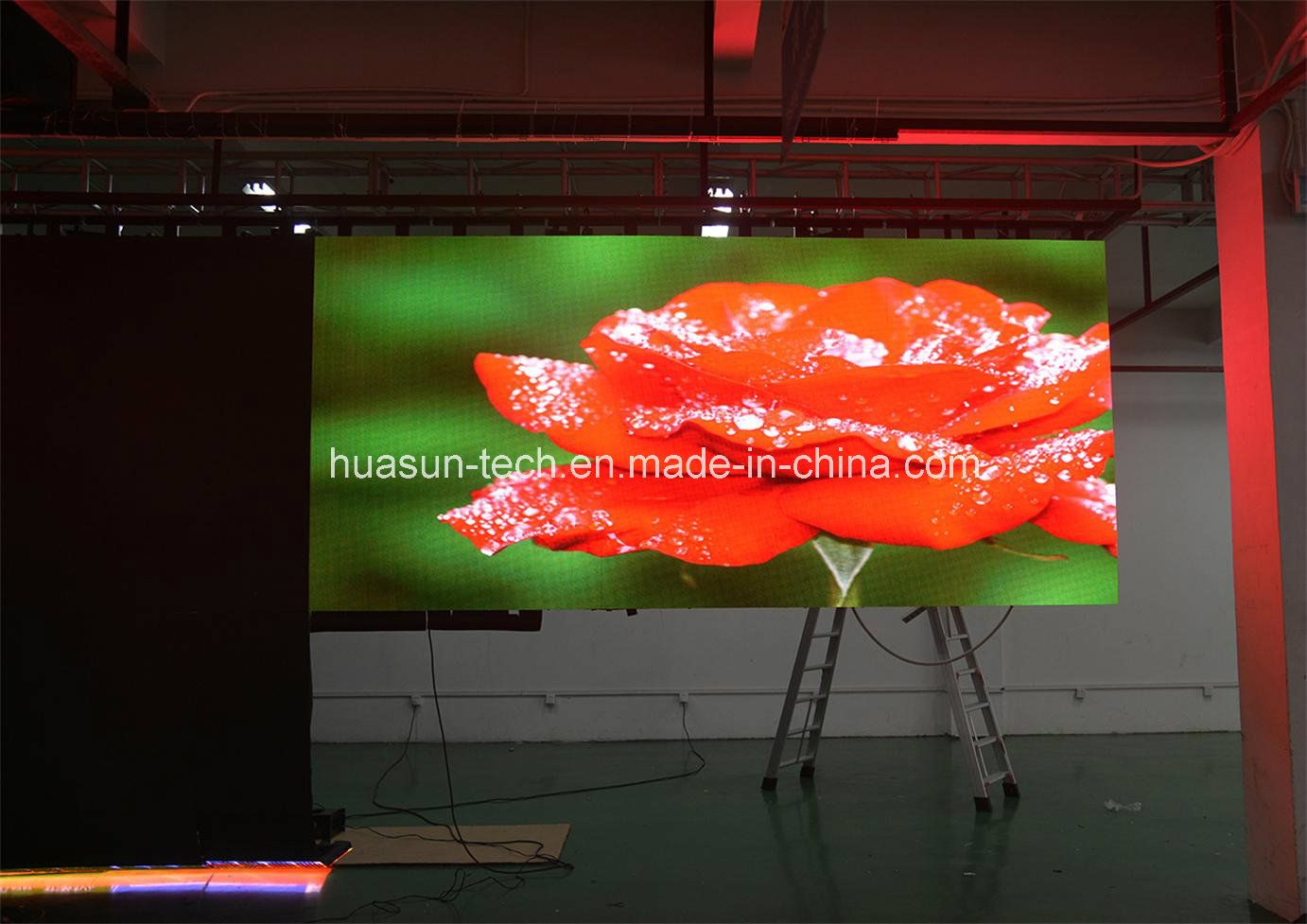

Galaxias Series- Patent
Galaxias series flexible LED display are our latest specialty products. They've fundamentally changed the stereotype image of LED displays.
Features:
1. High contrast and brightness
2. Fast and easy to assemble
3. Extra flexibility, weighs under 10 Kg/ m2 and thinner than 25mm, Very convenient to use and move, saving a lot of transportation and assebliming costs
4. Outstanding image quality and stable performance with a refreshing rate at 10, 000Hz
5. Wide viewing angle
6. Unbeatable flexibility allows the display to be widely used for preparation of various shapes such as round, triangle, cylinder, and cone, etc The manufacturing material is DFR which makes the displays inflammable, scratch proof, heavy duty, safe, and reliable
Specifications
Model No | Galaxias 4 |
Pixel Pitch | 4.6mm |
Density | 45512 Dot / m² |
Pixel Configuration | RGB 3-IN-1 SMD LED |
Brightness(White) | 2150 nit |
Optima visual distance | 4m |
Max.Power Consumption | 280W/m² |
Average.Power Consumption | 95W/m² |
Recommendation size (W=Width H=Height T=Thickness) | W: 600mm H:1800mm T: 25mm |
Weight | 11.5Kg/Sq.m |
Work voltage | DC 5V |
Brightness level | 16 levels |
Bit depth per color | 16 bit |
Bit depth per pixel | 48 bit |
Visual Angle | Horizontal: 120; Vertical: 120 |
Data Refresh Rate | ≥10000Hz |
Display mode | 1280×1024 |
Drive mode | Constant current |
Signal type | AV,S-Video,VGA,CVBS,HDMI,DVI |
Operating System | Windows2000/XP/Vista/Windows7 |
Control Distance | HSYV; <100m |
Face material | DFR velvet drapery |
Ingress Protection | IP 43 |
Ambient Temperature | -20 ~ +50 °C |
Relative Humidity | 10% ~ 90% |
Installation | Hang |
Power system | Power-600, Power-1200 Power system |
Safety certificate | CE FCC ROHS |
After-Sale Service
1. Warranty: 1 Years. Lifetime free maintenance and upgrade.
2. Free reserve part
3. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
4. Free technician training.
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
