| Prod Model: |
VG-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
RoHS |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Stage Performance |
| IP Rating: |
IP43 |
| Pixel Pitch: |
25mm |
| Pixel Density: |
1600pixels/Sq.M |
| System Operating Platform: |
Windows2000/XP/Vista/Windows7 |
Product Description

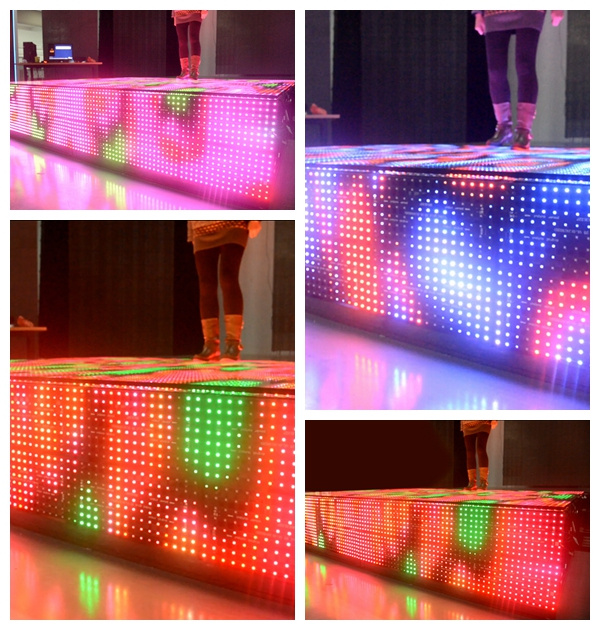

Video Grid indoor LED stage display
Pixel pitch 25mm, 37.5mm available
1. Features
Module design, easy installation.
High refresh rate, excellent video quality
Simple setup and use.
Irregular shapes installation
Widely used on walls, stages floor and background, ceilings and lobbies
Can be combined into a large screen
2 .Specification
Model No | VG25 | VG37 |
| Pixel pitch | 25mm | 37.5mm |
| Density | 1600pixel/ m² | 711pixel/ m² |
| Brightness(White) | 2550nit | 2500nit |
| Transparency | 40% | 70% |
| Max.Power Consumption | 150w/m² | 200w/m² |
| Average. Power consumption | 50w/m² | 66w/m² |
| Recommendation size | Length:400mm Width:200mm | Length:600mm Width:300mm |
| Weight | 0.26kg/pc | 0.37kg/pc |
| Pixel configuration | RGB 3-in-1 SMD5050 |
| work voltage | DC 24V |
| Brightness level | 16 levels |
| Bit depth per color | 16 bit |
| Visual angel | Horizontal:120;Vertical:120 |
| Refresh rate | ≥600Hz |
| Display mode | 1280x1024 |
| Drive mode | Constant current |
| Signal type | AV, S-Video, VGA, CVBA, HDMI, DVI |
| Operating system | Windows2000/xp/Vista/Windows7 |
| Control distance | HSYV;<100M |
| Ingress protection | IP20 |
| Ambient temperature | "-20--+50 degree |
| Relative humidity | 10%-90% |
3. After-sale service
1). Free training all the time
2). Warranty : 1 years
3). Complaint respond in 24 hours; maintenance guidance and problem solution supplied in 48 hours.
4). Free technician
4. Company information
Huasun is established in 2006 by Benson, specializing in flexible LED display technolody and related products.
With the first paten in 2008 as as Milestone, Huasun has been manufacturing and suppling flexible LED display products for over 7 years.
Focusing on the technology of LED display, especially in the area of flexible types, Huasun is an industry leader in the global market. Huasun provides its great expertise and advanced products world-wide for entertaiment business, media advertising, and LED display lease. Products of Huasun are showing facinating images everyday in more than 50 countries around the world
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
