| Prod Model: |
JPS-FP1-SS-150A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Flat-plate |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE |
Product Description
Solar Water Heater Specifications:
1. Inner tank: 0.4mm-0.6mm thickness SUS 304-2B Stainless steel
2. Tank diameter: 470mm/480mm outer tank, 360mm/370mm inner tank
3. Flat plate: 2.15
4. Outer tank: 0.31mm-0.4mm thickness Wiredrawing Metal Plate/Fluorin Carbon Plate/Color Steel
5. Frame: 1.2mm thickness Aluminum Alloy/1.5mm thickness Galvanized Steel
6. The material of insulation: 55-60mm thickness Polyurethane
7. The reflector: Stainless steel /Aluminum plate
8. Working efficiency: >95%
9. Heat Preservation time: 72-96hours
10. Hail resistance: 25mm
11. Inlet/oulet size: 1/2'', 3/4''
12. Tank capacity: 100L/110L/115L/135L/150L/165L/200L/250L/285L/300L
13. Air vent: 100% copper vent

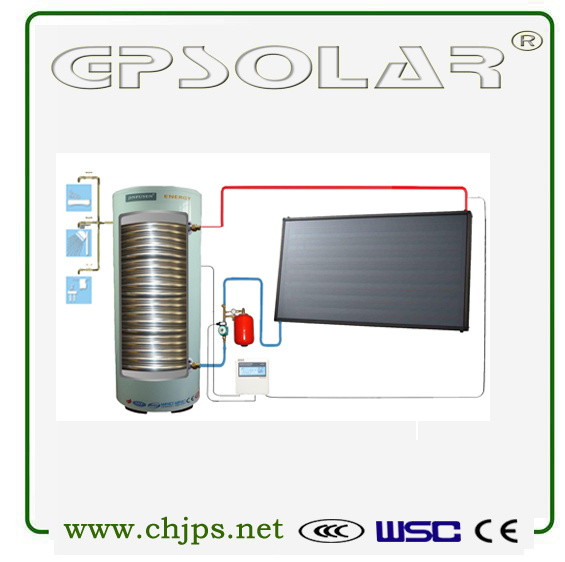

Split solar water heater Feature:
Split solar water heater Collector separates with storage tank. The tank can be put in any place of house. And the collector can be put on the inclined roof or flat place.
Module design, arbitrary combination, harmony with the building perfectly;
Intelligent control and automatic operation;
Anti-freeze: No water inside the tubes when it works.
The Split solar water heater system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature.
Multifunction: Bathing, washing, domestic heating etc;
Work at anytime and enjoyable.
Working principle:
1) When the temperature of the separate pressure solar water heater collector reaches the set value, the controller will make shall the circulation pump work automatically.
2) The circulation pump makes heat-conducting liquid circulate automatically.
3) The heat-conducting liquid transfers heat to water by the heat exchanger in the tank.
4) In case the temperature of the circulation pump does not reach the set value, the circulation pump will be shut automatically.
5) In case the temperature of the tank does not reach TM ax, then start the auxiliary heating device.
|
Project |
Unit |
JPS-FP-2-150A |
JPS-FP-2-200A |
JPS-FP-2-300A |
JPS-FP-2-400A |
JPS-FP-2-500A |
|
Water Tank |
L |
150 |
200 |
300 |
400 |
500 |
|
Size |
mm |
Φ480x1420 |
Φ570x1240 |
Φ570x1790 |
Φ700x1500 |
Φ750x1700 |
|
Inner Tank |
mm |
SUS304/2BX1.2 |
SUS304/2BX1.5 |
SUS304/2BX1.5 |
SUS304/2BX2.0 |
SUS304/2BX2.0 |
|
Outer Tank |
|
galvanized sheet+painting |
galvanized sheet+painting |
galvanized sheet+painting |
galvanized sheet+painting |
galvanized sheet+painting |
|
Coil pipe |
|
1 |
1.5 |
2 |
2.2 |
2.5 |
|
Collector |
|
|
|
|
|
|
|
Heat receiver material |
|
BLUETEC |
BLUETEC |
BLUETEC |
BLUETEC |
BLUETEC |
|
Heat receiver area |
|
1.87 |
3.74 |
5.61 |
7.48 |
9.35 |
|
Plate core constrution |
|
Grille form |
Grille form |
Grille form |
Grille form |
Grille form |
|
Working station |
|
|
|
|
|
|
|
Circulation pump |
|
WILO |
|
WILO |
WILO |
WILO |
|
Expansion can |
L |
8 |
|
8 |
12 |
12 |
|
|
|
|
|
Project |
Unit |
|
JPS-DFP-200D |
JPS-DFP-300D |
JPS-DFP-400D |
JPS-DFP-500D |
|
Water Tank |
L |
|
200 |
300 |
400 |
500 |
|
Size |
mm |
|
Φ570x1240 |
Φ570x1790 |
Φ700x1500 |
Φ750x1700 |
|
Inner Tank |
mm |
|
SUS304/2BX1.5 |
SUS304/2BX1.5 |
SUS304/2BX2.0 |
SUS304/2BX2.0 |
|
Outer Tank |
|
|
galvanized sheet+painting |
galvanized sheet+painting |
galvanized sheet+painting |
galvanized sheet+painting |
|
Top coil pipt |
|
|
0.85 |
2 |
2 |
2.5 |
|
Bottom coil pipe |
|
|
0.85 |
1 |
1.2 |
1.5 |
|
Collector |
|
|
|
|
|
|
|
Heat receiver material |
|
|
BLUETAC |
BLUETAC |
BLUETAC |
BLUETAC |
|
Heat receiver area |
|
|
3.74 |
5.61 |
7.48 |
9.35 |
|
Plate core constrution |
|
|
Grille form |
Grille form |
Grille form |
Grille form |
|
Working station |
|
|
|
|
|
|
|
Circulation pump |
|
|
|
WILO |
WILO |
WILO |
|
Expansion can |
L |
|
|
8 |
12 |
12 |
