| Prod Model: |
TJSUN1578 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
White |
| Type: |
Pressurized |
| Application: |
Water Heater |
| Pipe Material: |
Glass |
Product Description
Product Description:

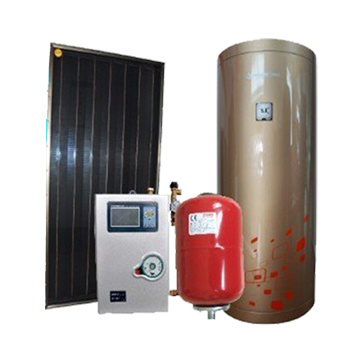

Collector is separate with the storage tank, the tankcan be put anywhere of house.
And the collector can be put on both titled roof and flat roof.
Module design, architecture combination, harmony with the building perfectly.
Intelligent control and automatic operation.
Anti-free: No water inside the tubes when it works.
The system controller has the anti-freezing function in that the temperature circulation will operate while it reach the fixed temperature.
Multifunction: Bating, washing, domestic heating.
Workable at anytime and enjoyable.
Advantages:
Use in any time: It adopts advanced design idea and integrates with high efficiency pre-heated patent technique, so it can warm the cold water rapidly when it flows through special pipe. It can overcome the demerit its of traditional SWH, such as slow heating, long waiting time.
More Capacity: We adopt special exchanging heat mode, it avoids mixed effect, so cold water can be heated at any moment.
High hydraulic pressure: The hydraulic pressure is same as tap water, it is very suitable for tired person.
Easy operation: It can supply water automatically, you can take it easy and enjoy good time.
Economical and Environment protecting: There is no pollution when it is working since it depends on sunshine, Green and economical
Fashionable: The appearance is fashionale and it can great integrate with your fitment.
| Solar Collector ( Heat pipe series) |
| Model | TJH-58/1800-15-C | TJH-58/1800-18-C | TJH-58/1800-20-C | TJH-58/1800-24-C | TJH-58/1800-30-C |
| Size(M) | 1967*1190*132 | 1967*1415*132 | 1967*1565*132 | 1967*1865*132 | 1967*2315*132 |
| Absorption area(M2) | 1.2 | 1.44 | 1.6 | 1.92 | 2 |
| Length of Tube | 1800mm |
| Outer Diameter of Tube | 58mm |
| Efficiency | 0.88 |
| Losses | 2.4 |
| Tube quantity | 15 | 18 | 20 | 24 | 30 |
| Manifold | casing material:Aluminum Alloy;thickness: 1.8mm;Insulating layer: rock wood or foam |
| Heat pipe | pure red copper TU1+water;transfer power:>=150W;Working pressure: 4Mpa;welding pressure: 4 Mpa |
| Heat header | 24mm |
| Dust Ring Gasket | Silicon Rubber |

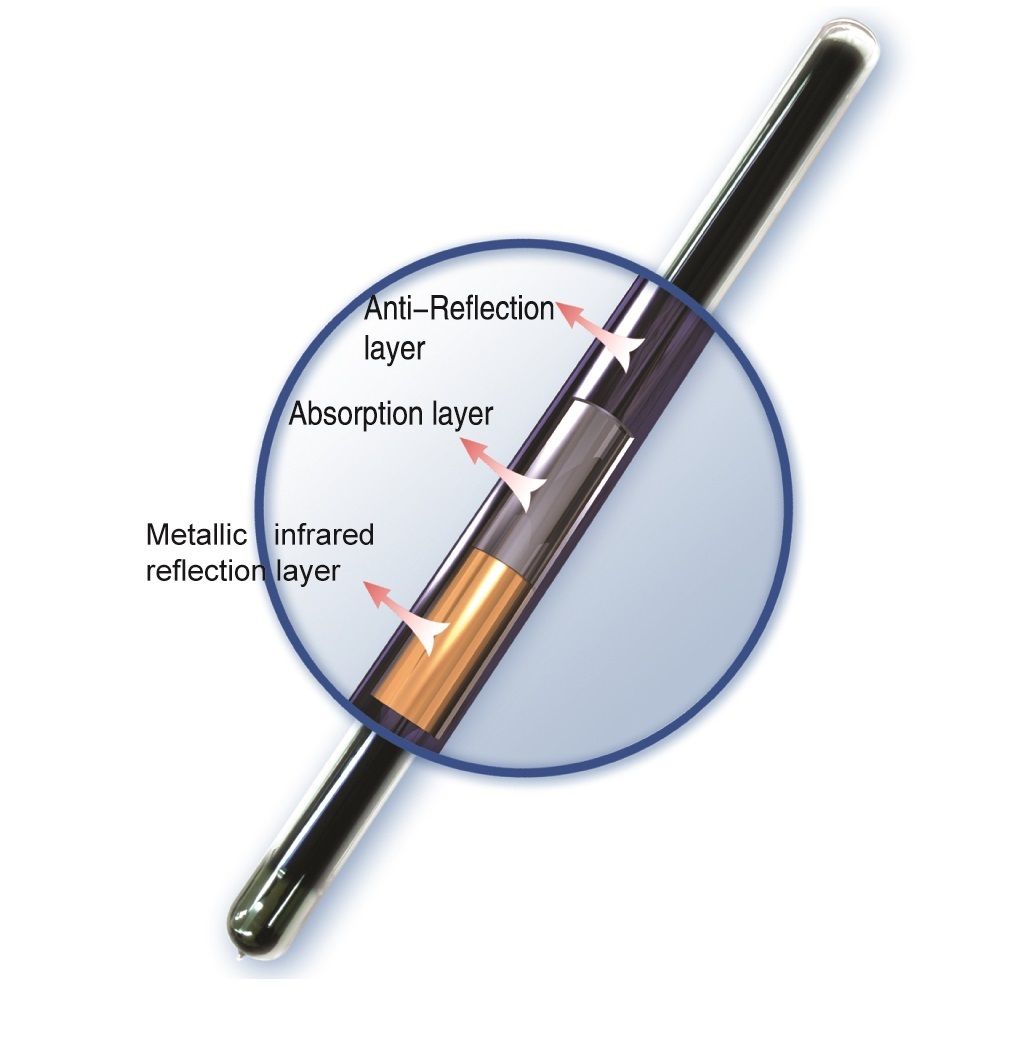

| Vacuum Tube | Tri-elemant tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service life:15years |
| Mounting Frame | Aluminum Alloy,thickness:2.0mm |
| Rack Insert | ABS |
| Dimension(CBM) | 0.28 | 0.32 | 0.35 | 0.39 | 0.53
|
