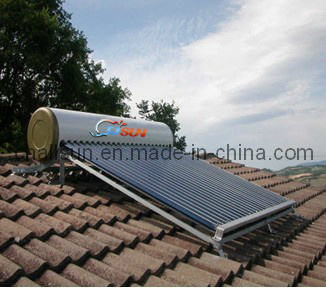

Low Pressure Solar Water Heater (TJ-G2-series)
| Price: |
US $ 92.5-100/Piece |
| Trade Terms: |
FOB,CFR,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TJSUN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Silvery |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
Solar Keymark,SRCC, SABS, CE ,CCC |
| Max. Capacity: |
500L |
Product Description

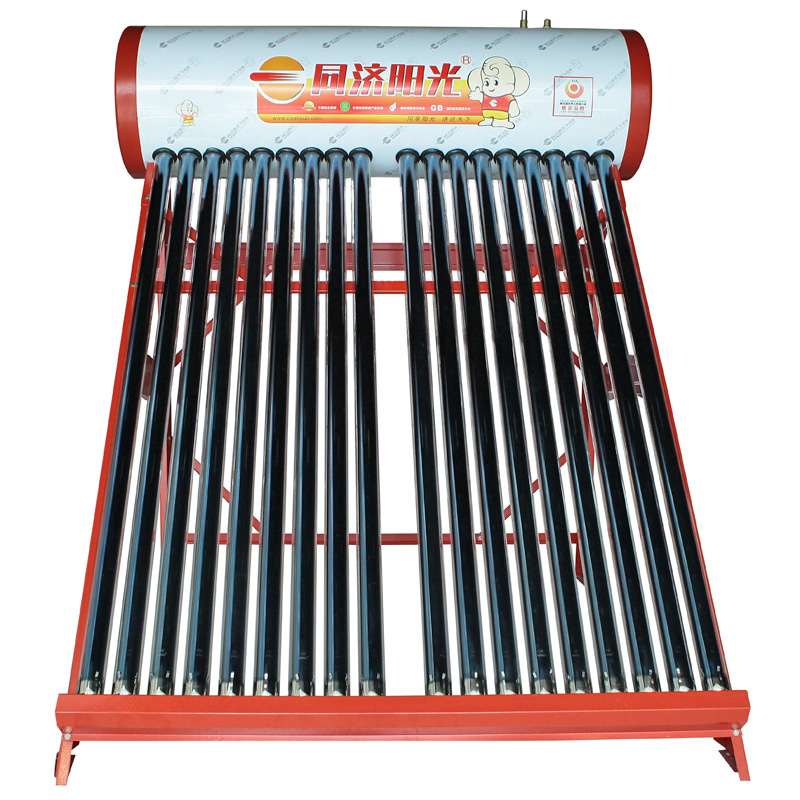

Low Pressure Solar Water Heater (TJ-G2-series)
Non-Pressure Solar water heater:1. Selective absorbent coated evacuated tube:With high absorptance and vacuum degree the solar radiation absorbility is significantly enhanced than common tubes.2. Insulation: Made with one-off foaming at constant-temperature under high-pressure;

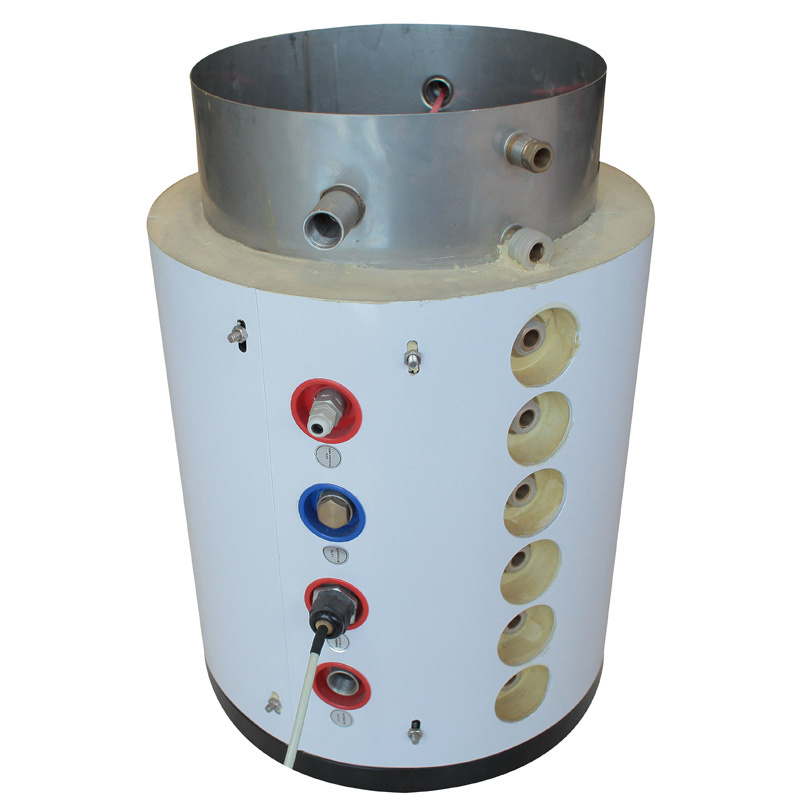

High temperature slaking processing creates even, high dense polyurethane foam, which features by low thermal conductivity, stable performance and excellent heat preservation;The inner water tank is made of SUS304 stainless steel with high contents of Chromium and Nickel and is welded by automatic argon arc welding process to realize corrosion resistance and long service life.3. Frame:Made of hot galvanized plate, and more than 14 surface anti-corrosion processes are adopted, such as degreasing, phosphating, electrostatic spraying, high temperature slaking, etc, which makes the frame be steady and anti-corrosion as well as long service life, more than 10 years.4. SED auxiliary heating system:Passed the China Compulsory Certification, has double overheat protection and leakage protection. Electrical booster is made of Incoloy 800 to realize the dry burning resistance, corrosion resistance, which is safer.5. Components: Intelligent control system might be chosen to support
Question 1: Which parts are consist of a solar water heater system?Answer:Mian parts are:Insulation Tank,Solar Collector,Mounting Frame
Accessories: Safety valve,PT valve,male connectors
Selected supporting: Electrical Heater,5L Feeder Tank,Solar Controller Question 2: What's the difference between with and without 5L feeder tank(water cylinder)?Answer: The feeder tank is installed in top of main tank,there's float valve inside,and could adjust the water feeding and stop feeding,is a quite good design.Question 3:If the customers are not familiar with installation,how to do it?Answer: Don't worry about this.There's Installation Video,also Instruction Manual to show the process of installing,very clear for every step.Question 4:Which other services your factory can do?Answer:TJSUN is not only a solar water heater manufacturer,but also a technology supporter for energy savings.The factory had installed lots of projects for different areas,accumulated much experience.Whole type products can meet different requires,cold or warm conditions,high or cheap price.Question 5: What's the warranty and after-sale services?Answer:The main parts of non-pressure solar products are have a 5 years warranty,the design life is more than 15years.
The accessories parts are from 2-3years warranty.For after sale service,if it's caused by quality problem,TJSUN agrees to replace the broken part in free charge.
If technology support for project,TJSUN engineer can come for technical guidance.
| Integrative Non Pressurized Solar Water Heater TJ-G Series |
| Model | Vacuum Tube | Collecting
area(m2) | Tank | Frame Material | Material of inner and outer tank | Heat insulating layer | For How many people use | Dimension(mm) |
| TJ-G series | Dia/Len(mm) | Quantity(pcs) | Dia outer/inner (mm) | Volume(L) |
| TJ-G2-12 | 58/1800 | 12 | 1.48 | 480/380 | 100 | Galvanized steel plate with plastic spraying | Inner tank: stainless steel SUS304-2B Outer tank: color steel plate | 50mm thickness polyurethane foam | 2 | 1130*1740*1890 |
| TJ-G2-16 | 58/1800 | 16 | 1.98 | 480/380 | 130 | 3 | 1430*1740*1890 |
| TJ-G2-18 | 58/1800 | 18 | 2.23 | 480/380 | 150 | 3 | 1580*1740*1890 |
| TJ-G2-20 | 58/1800 | 20 | 2.48 | 480/380 | 160 | 3,4 | 1730*1740*1890 |
| TJ-G2-24 | 58/1800 | 24 | 2.98 | 480/380 | 200 | 4 | 2030*1740*1890 |
| TJ-G2-30 | 58/1800 | 30 | 3.73 | 480/380 | 240 | 5 | 2480*1740*1890 |
| TJ-G2-32 | 58/1800 | 32 | 3.98 | 480/380 | 260 | 6 | 2630*1740*1890 |
