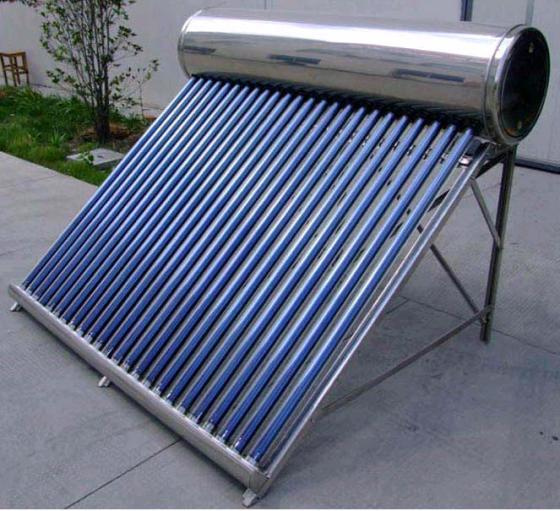

High-Pressure Compact Solar Water Heater by Solar Keymark
| Price: |
US $ 265-271/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
Solar Keymark /SRCC/ SABS |
| Max. Capacity: |
500L |
Product Description
High-Pressure Compact Solar Water Heater by Solar Keymark

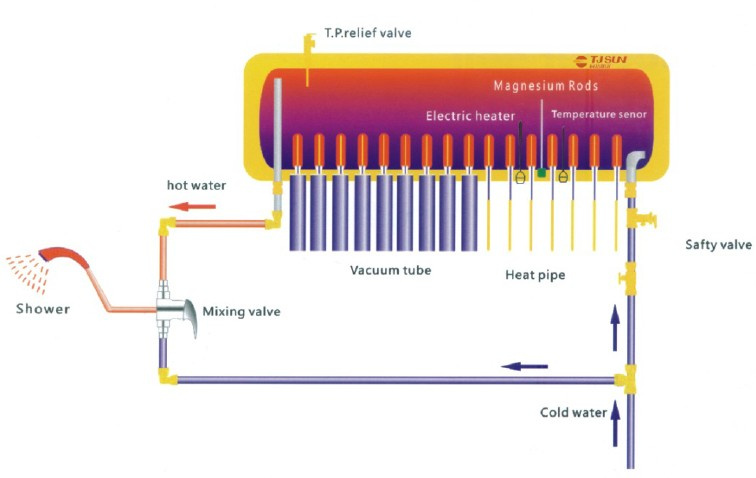

Solar Keymark SRCC SABS Approved.Pressure Water Heater:The vacuum tube with special coating abdorbs the sun's ray and turns it into heat energy,copper heat pipe inside the tube heats up and transmits this energy into the tank.That pressure system does not have any water in the glass tube.Specification:1. Inner tank: 1.2 mm food grade stainless steel 304-2B; Outer tank: 0.4mm galvanized steel
2.Heat Insulation: 55mm thickness polyurethane foam
3. Supporting Frame: Galvanized plate 1.5mm
4. Vacuum tube: Absorption rate≥ 96%, Hail resistance 25mm, service life 15 years
5. Heat exchanger: red copper
6. Heat preservation: 72-80hours
7.Pressure: 6 bar
8. Capacity: 100-500 LitersFeatures:1.Use in any time: it adopts advsanced design idea and integrateds with high efficienct preheated patent technique.So it can warm the cold water rapidly when it flows through special pipe.It can overcome the short of traditional sloar water heater,such as slow heating,long waiting time.
2.More capacity:we adopt special exchanging heat mode,it avoids mixed effect.So cold water can be heated at any time.
3.Strong hydraulic pressure: the hydraulic pressure is same as tap water.It is very suitable for tired person.
4.Economical and environmental protecting: there is no pollution when it is working since it depends on sunshine,green and economical
5.Easy operation: it can supply water automatically,you can take it eastyand enjoy good time
6.Fashionable: the appearance is fashionable and it can great integrate with your fitment
Advantages:Highly efficient absorber of high performance with daily average efficiency over 50%.
Start up quickly,heat pipe transfer the heat energy into the storage tank in one direction,withstand pressure of 6 bar,can be connected directly with city water.
No water inside the evacuated tubes,the solar water heater can still in service even with several tubes breakage. Highly efficient insulation with polyurethane foam.
Simple structure,easy to assembly and install,diffuse flat plate reflector can be assembled easily with its module structure.
Can be used all year round in the cold climate.
Can be used togehter with auxiliary electric boost.
Long service life,can be used as long as 15 years.| Compact Pressure Solar Water Heater |
| Model | Tank | Bracket | Tube | Remark |
| Volume | Outer tank | Inner tank | Tube Quantity | Dia./Len of Tube |
| TJIP58/1800-12 | 100L | Galvanized Steel Plate,thickness:0.4mm | Stainless steel SUS304-2B,thickness:1.2mm | Galvanized Steel Plate,thickness:1.5mm | 12 | 58mm/1800mm | System including PT valve,safety valve,electrical heater,solar controller,male connectors |
| TJIP58/1800-18 | 150L | 18 |
| TJIP58/1800-24 | 200L | 24 |
| TJIP58/1800-30 | 250L | 30 |
| TJIP58/1800-35 | 300L | 35 |
