| Application: |
Water Heater |
Product Description

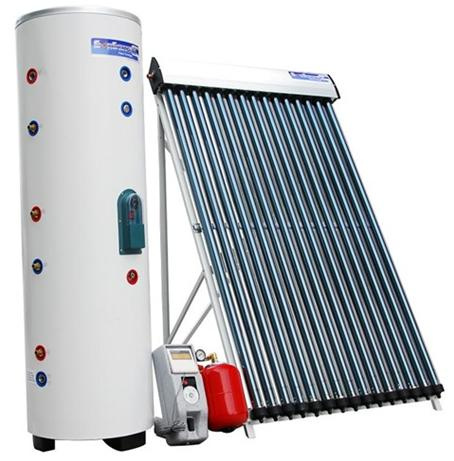

Separate High Pressured Solar Water Heater
Working Principle
Active system
Active solar water heater systems use electric pumps, valve, and controllers to circulate weater through the collectors, this system is easier to be installed than passive systems because its storge tank do not need to be installed above or close to the collectors. The cold water supply is connected to the soalr storge tank. Water to be heated circulates between the storage tank and the solar collectors. The bumps or electric element turns on only if the temperature can not be maintained by the solar heater.
Characteristic:
1. Inner tank: SUS 304 2B food level stainless steel
2. Outer tank: Colored Steel
3. Innner water tank: signal copper coil/dual copper coils
4. Material of the Heat Preservation: Rock wool and imported PU
5. Bracket: Galvanized steel plated with plastic spraying/stainless steel/aluminum alloy.
Working station:
Expansion case, Check valve, Circulation pump, Intelligent controller, Pressure guage, Safety valve, Flow meter.
| Parameter sheet |
| Model NO. | Vacuum tube specification | Tank volume | Collector Qty. | Aperture area | Total weight | Total packing volume | Loading Qty. |
| Dia | Length | Qty. |
| (mm) | (mm) | (unit) | (L) | (pcs) | (m2) | (KG) | 20’GP | 40’GP | 40’HQ |
| (m3) | (set) | (set) | (set) |
| ML-New-1-5815 | 58 | 1800 | 15 | 150 | 1 | 2.1 | 80 | 0.75 | 34 | 72 | 90 |
| ML-New-1-5818 | 18 | 1 | 2.8 | 95 | 0.8 | 32 | 67 | 80 |
| ML-New-1-5820 | 20 | 200 | 1 | 2.8 | 146 | 0.95 | 27 | 60 | 75 |
| ML-New-1-5824 | 24 | 1 | 3.2 | 169 | 1 | 26 | 54 | 64 |
| ML-New-1-5830 | 30 | 300 | 1 | 4.5 | 172 | 1.3 | 20 | 43 | 54 |
| ML-New-1-5840 | 40 | 2 | 5.6 | 175 | 1.35 | 19 | 40 | 47 |
| We can also supply system with 400L and 500L,for more information,pls feel free to contact us. |
Haining Meilu Solar Energy Water Heater Co., Ltd. is a manufacturer of solar water heaters. Meilu's pursuit of quality has gong deep into our thought. Every quality inspection staff member has undergone a strict training. The responsibility goes to each employee, which keeeps man-made mistakes to a minimum. At the same time, our company has a full set of manufacturing process from raw materials to pre-delivery inspection to ensure the precision and strictness of all products.
We believe that only technical innovation can maintain the unlimitied vitality of our enterprise, can creat more markets demand in the furture and can overcome the potential crisis on the road ahead. Technical innovation is not divorcing oneself from reality. By keeping up with the times and having a profound understanding of the latest industrial trends, needs, and experience, we can make full use of limited resources and can tap more vale space.
