| Application: |
Water Heater |
Product Description

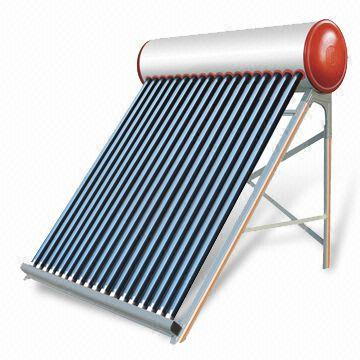

Compact Non-pressured Solar Water Heater
Working Principle:
Passive system
Compact Non-pressured Solar Water Heater is open to air and relies on water'natural circulation. When water in vacuum tube is heated, it rises naturally into storge tank, while cold water in storge tank flows back to vacuum tubes. The tank must be located above the absorber tubes and the whole system need to be installed on the roof and faces to the sun.
Characteristic:
1. Ineer tank: SUS 304 2B food level stainless steel
2. Outer tank: SUS 304 2B food level stainless steel/Colored steel with painting
3. Water Capacity: 100L/120L/150L/200L/250L/300L
4. Heat Preservation: 55mm PU
5. Vacuum tube: 47mm/1500mm 58mm/1800mm 70mm/2000mm
6. Tube quantity: 12/15/18/20/24/30/36
7. Bracket: Colored steel/stainless steel/aluminum alloy
8. Logo: Customer request
9. Color: Customer request
| parameter sheet |
| Model NO. | Vacuum tube specification
Dia Length Qty.
(mm) (mm) (unit)
| Tank volume
(L)
| Application People NO. | Aperture area
(m2)
| Total weight
(KG)
| Total packing volume
(m3)
| Loading Qty.
20’GP 40’GP 40’HQ
(set) (set) (set)
|
| ML-K-4715 | 47 | 1500 | 15 | 90 | 2 | 1.48 | 42 | 0.42 | 62 | 128 | 153 |
| ML-K-4718 | 18 | 108 | 2 | 1.67 | 50.4 | 0.48 | 55 | 112 | 134 |
| ML-K-4720 | 20 | 120 | 3 | 1.85 | 56 | 0.52 | 50 | 103 | 123 |
| ML-K-4724 | 24 | 144 | 3 to 4 | 2.22 | 67.2 | 0.61 | 43 | 88 | 105 |
| ML-K-4730 | 30 | 180 | 4 to 5 | 2.94 | 84 | 0.76 | 35 | 71 | 85 |
| ML-K-5815 | 58 | 1800 | 15 | 135 | 2 to 3 | 2.1 | 55.8 | 0.58 | 45 | 93 | 111 |
| ML-K-5818 | 18 | 162 | 3 to 4 | 2.51 | 67 | 0.68 | 39 | 79 | 94 |
| ML-K-5820 | 20 | 180 | 4 to 5 | 2.92 | 74.4 | 0.73 | 36 | 73 | 88 |
| ML-K-5824 | 24 | 216 | 4 to 5 | 3.33 | 89.3 | 0.88 | 30 | 61 | 73 |
| ML-K-5830 | 30 | 270 | 6 to 7 | 4.14 | 111.6 | 1.06 | 25 | 56 | 61 |
| ML-K-5832 | 32 | 288 | 7 | 4.48 | 119.1 | 1.14 | 23 | 47 | 56 |
| ML-k-5834 | 34 | 306 | 7 to 8 | 4.76 | 126.5 | 1.22 | 22 | 44 | 53 |
| ML-K-5836 | 36 | 324 | 8 | 5.04 | 130.8 | 1.31 | 20 | 41 | 49 |
