Product Description

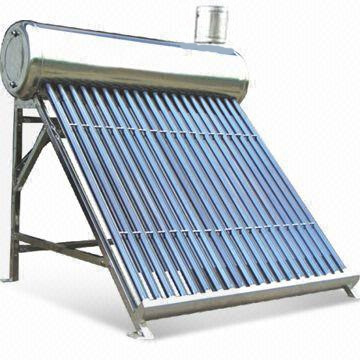

Compact Non-pressured Solar Water Heater With Asisstant Tank
Working Principle:
Passive system
The working principle of the this one which has a small tank on top is similar as the one compact non-pressured solar water heater without the assistant tank, it is also open to air and relies naturally into storge tank, while cold water in storge tank flows back to vacuum tubes. The tank must be located above the absorber tubes and the whole system need to be installed on the roof and face to the sun. The mainlly different of this one which has a small tank on the top with the one without the small tank is the small tank can fill full the big water tank storge if there is no enough water inside of the big tank.
1. Inner tank: SUS 304 2B food level stainless steel
2. Outer tank: SUS 304 2B food level stainless steel/Colored steel with painting
3. Small tank:
Inner tank: SUS 304 2B food level stainless steel
Outer tank: SUS 304 2B food level stainless steel/Colored steel with painting
Heat Preservation: PU
4. Water Capacity: 100L/120L/150L/200L/250L/300L
5. Heat Preservation: 55mm PU
6. Vacuum tube: 47mm/1500mm 58mm/1800mm 70mm/2000mm
7. Tube quantity: 12/15/18/20/24/30/36
8. Bracket: Colored steel/stainless steel/aluminum alloy
9. Logo: Customer request
10. Color: Customer request
| parameter sheet |
| Model NO. | Vacuum tube specification
Dia Length Qty.
(mm) (mm) (unit)
| Tank volume
(L)
| Application People NO. | Aperture area
(m2)
| Total weight
(KG)
| Total packing volume
(m3)
| Loading Qty.
20’GP 40’GP 40’HQ
(set) (set) (set)
|
| ML-R-4715 | 47 | 1500 | 15 | 90 | 2 | 1.48 | 42 | 0.42 | 62 | 128 | 153 |
| ML-R-4718 | 18 | 108 | 2 | 1.67 | 50.4 | 0.48 | 55 | 112 | 134 |
| ML-R-4720 | 20 | 120 | 3 | 1.85 | 56 | 0.52 | 50 | 103 | 123 |
| ML-R-4724 | 24 | 144 | 3 to 4 | 2.22 | 67.2 | 0.61 | 43 | 88 | 105 |
| ML-R-4730 | 30 | 180 | 4 to 5 | 2.94 | 84 | 0.76 | 35 | 71 | 85 |
| ML-R-5815 | 58 | 1800 | 15 | 135 | 2 to 3 | 2.1 | 55.8 | 0.58 | 45 | 93 | 111 |
| ML-R-5818 | 18 | 162 | 3 to 4 | 2.51 | 67 | 0.68 | 39 | 79 | 94 |
| ML-R-5820 | 20 | 180 | 4 to 5 | 2.92 | 74.4 | 0.73 | 36 | 73 | 88 |
| ML-R-5824 | 24 | 216 | 4 to 5 | 3.33 | 89.3 | 0.88 | 30 | 61 | 73 |
| ML-R-5830 | 30 | 270 | 6 to 7 | 4.14 | 111.6 | 1.06 | 25 | 56 | 61 |
| ML-R-5832 | 32 | 288 | 7 | 4.48 | 119.1 | 1.14 | 23 | 47 | 56 |
| ML-R-5834 | 34 | 306 | 7 to 8 | 4.76 | 126.5 | 1.22 | 22 | 44 | 53 |
| ML-R-5836 | 36 | 324 | 8 | 5.04 | 130.8 | 1.31 | 20 | 41 | 49 |
