| Prod Model: |
cassette model |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
700*700*300mm |
| Weight: |
120kg |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
GS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Type: |
Ceiling Cassette |
| Capacity: |
12000-48000BTU |
Product Description
We supplier all types of air conditioner: Split type air conditioner, Floor type air conditioner, Portable type air conditioner, Window type air conditioner, Cassette type air conditioner, Floor&Ceiling type air conditioner. All of our air conditioner are in high quality with famous brand compressor: Hitachi, Toshiba, SANYO, Panasonic, Misushita, Copeland, Bristol, etc

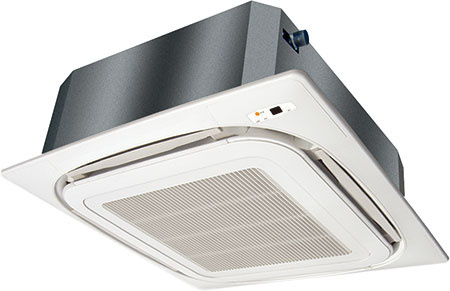

Ceiling cassette type air conditioner
| | ceiling cassette type air conditioner |
| Model/Parameters | | 12000btu | 18000btu | 24000btu | 36000btu | 42000btu | 48000btu |
| Refrigerant | | R-22 / R410a |
| Performance | |
| Power supply(V/Ph/Hz) | 220V,50/60HZ | 220V,50/60HZ | 220V,50/60HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| capacity | Cooling | Btu/h | 12000 | 17000 | 24000 | 34000 | 41000 | 48000 |
| W | 3500 | 5000 | 7000 | 10000 | 12000 | 14000 |
| Heating | Btu/h | 13000 | 18000 | 31000 | 43000 | 52500 | 52000 |
| W | 3800 | 5500 | 9200 | 12500 | 15500 | 15000 |
| Noise | Indoor | dB(A) | <44 | <48 | <52 | <53 | <55 | <55 |
| Outdoor | dB(A) | <52 | <56 | <60 | <63 | <35 | <65 |
| Air Circulation | m3/h | 500 | 800 | 1200 | 1400 | 1700 | 1700 |
| Suitalbe area | m2 | 14~21 | 22~34 | 30~50 | 50~75 | 60~90 | 70--100 |
| Power |
| Input Power(T1/T3) | Cooling | W | 1250 | 1920 | 2600 | 3800 | 4500 | 5200 |
| Heating | W | 1250 | 1920 | 4100 | 5400 | 7000 | 7700 |
| Rated Current | Cooling | A | 5.9 | 8.8 | 12.3 | 6.5 | 7.8 | 8.9 |
| Heating | A | 5.9 | 8.8 | 19.1 | 13.5 | 19.6 | 20.7 |
| Dimension | | |
| Indoor unit | Net | mm | 570x570x225 | 570x570x225 | 840x840x215 | 840x840x215 | 840x840x260 | 840x840x260 |
| Shipping | mm | 675x675x310 | 675x675x310 | 855x885x285 | 855x885x285 | 855×885×305 | 855×885×305 |
| Outdoor unit | Net | mm | 830x260x520 | 930x330x600 | 930x330x730 | 930x330x730 | 960×360×1300 | 960×360×1300 |
| Shipping | mm | 890x360x590 | 995x390x650 | 1025x395x890 | 1025x395x890 | 1080×440×1390 | 1080×440×1390 |
| weight | | |
| Indoor unit | Net/shipping | Kg | 23/25 | 23/25 | 30/32 | 30/32 | 45/47 | 45/47 |
| Outdoor unit | Net/shipping | Kg | 35/40 | 51/56 | 61/66 | 61/66 | 122/127 | 122/127 |
Established in 2002, Ubase has enjoyed a decade exportation to overseas markets, with a variety of exporting commodities of Ubase holding factories, including air conditioner, refrigerator, freezer, showcase, washing machines and electrical fan etc., now Ubase's annual sales value reaches 80 million and exporting market covers more than 82 countries in Europe, Africa, Middle-East, Asia, CIS, south America, Caribbean islands and Australian area.

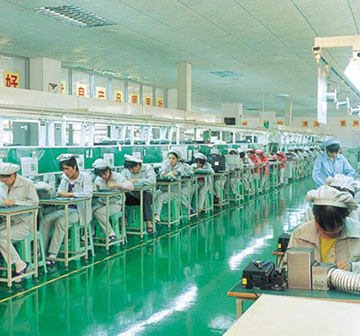

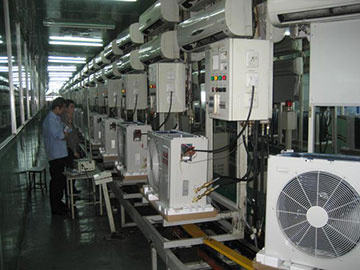

As one of main manufacturing and exporting companies in China, Ubase owns high-grade manufacturing base with advanced equipments and vigorous employees, which contribute to good quality products and the best service to overseas customers. Now Ubase is advocating new technology and striving for more energy-saving and environment friendly products, we are expecting to be one of leading companies in China with endless efforts.
We do believe: Ubase is the base for your successful business.
