| Prod Model: |
R410A |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
700*700*300mm |
| Weight: |
60kg |
| Type: |
Inverter Air Conditioner |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
GS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description

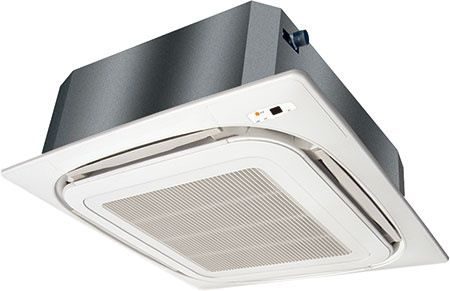

Inverter ceiling cassette air conditioner works more energy saving and efficienct, low noise
| Models | 18000btu | 24000btu |
| Capacity | Cooling | Btu/h | 18000(6800~19000) | 24000(13500~29000) |
| W | 5000(2000~6000) | 7000(4000~8500) |
| Heating | Btu/h | 19500(6800~25000) | 27000(13500~34000) |
| W | 5800(2000~7700) | 8200(4000~10000) |
| Noise | Indoor | dB(A)(LO) | 45 | 48 |
| Outdoor | dB(A) | 56 | 58 |
| Air circulation | m 3 /h | 800 | 1000 |
| Suitable area | m 2 | 22~34 | 30~50 |
| Input power | Cooling | W | 1550(620~1865) | 2500(1400~3000) |
| Heating | W | 1600(555~2150) | 2550(1250~3125) |
| EER | W/W | 3.23 | 2.80 |
| COP | W/W | 3.63 | 3.22 |
| Rated Current | Cooling | A | 7.4(2.9~8.8) | 11.8(6.6~14.2) |
| Heating | A | 7.6(2.7~10.2) | 12.1(5.9~14.8) |
| Indoor panel | Net | mm | 950*950*45 | 950*950*45 |
| Packing | mm | 1005*1005*100 | 1005*1005*100 |
| Indoor unit | Net | mm | 840*840*240 | 840*840*240 |
| Packing | mm | 855*885*260 | 855*885*260 |
| Outdoor unit | Net | mm | 850*290*580 | 865*310*710 |
| Packing | mm | 995*390*650 | 1025*395*790 |
| Indoor panel | Net/Gross | Kg | 5/7 | 6/9 |
| Indoor unit | Net/Gross | Kg | 30/35 | 30/35 |
| Outdoor unit | Net/Gross | Kg | 51/56 | 61/66 |
