| Prod Model: |
R410A |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
700*700*300mm |
| Weight: |
120kg |
| Type: |
Inverter Air Conditioner |
| Capacity: |
9000-12000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
GS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description

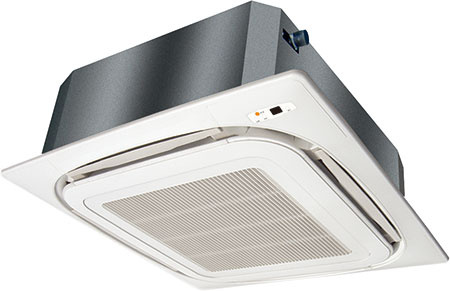

Inverter ceiling cassette air conditioner works more energy saving and efficienct, low noise
| Models | 9000btu | 12000btu |
| Capacity | Cooling | Btu/h | 9000(3100~11000) | 12000(3500~12600) |
| W | 2600(900~3200) | 3500(1000~3700) |
| Heating | Btu/h | 11600(3400~11600) | 14000(3400~15400) |
| W | 3400(1000~4000) | 4100(1000~4500) |
| Noise | Indoor | dB(A)(LO) | 29 | 30 |
| Outdoor | dB(A) | 48 | 50 |
| Air circulation | m 3 /h | 500 | 500 |
| Suitable area | m 2 | 10~20 | 18~25 |
| Input power | Cooling | W | 805(250~1100) | 1050(260~1320) |
| Heating | W | 950(250~1320) | 1200(250~1500) |
| EER | W/W | 3.23 | 3.33 |
| COP | W/W | 3.58 | 3.42 |
| Rated Current | Cooling | A | 3.8(1.2~5.2) | 4.9(1.3~6.3) |
| Heating | A | 4.5(1.2~6.3) | 5.7(1.2~7.1) |
| Indoor panel | Net | mm | 650*650*30 | 650*650*30 |
| Packing | mm | 720*720*135 | 720*720*135 |
| Indoor unit | Net | mm | 590*590*260 | 590*590*260 |
| Packing | mm | 675*675*310 | 675*675*310 |
| Outdoor unit | Net | mm | 760*255*525 | 760*255*525 |
| Packing | mm | 890*360*590 | 890*360*590 |
| Indoor panel | Net/Gross | Kg | 5/7 | 5/7 |
| Indoor unit | Net/Gross | Kg | 25/30 | 25/30 |
| Outdoor unit | Net/Gross | Kg | 32/35 | 35/40 |
Established in 2002, Ubase has enjoyed a decade exportation to overseas markets, with a variety of exporting commodities of Ubase holding factories, including air conditioner, refrigerator, freezer, showcase, washing machines and electrical fan etc., now Ubase's annual sales value reaches 80 million and exporting market covers more than 82 countries in Europe, Africa, Middle-East, Asia, CIS, south America, Caribbean islands and Australian area.

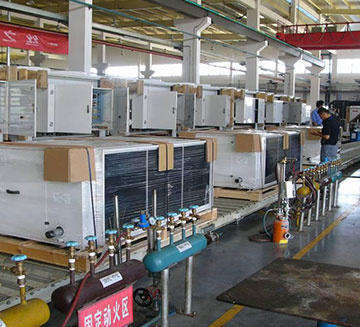

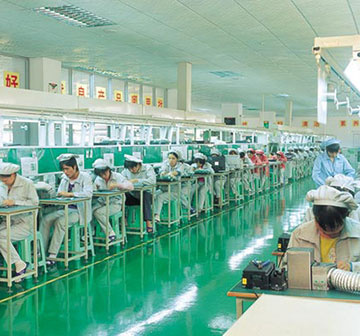

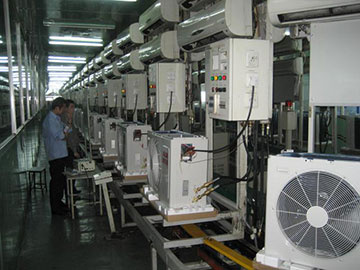

As one of main manufacturing and exporting companies in China, Ubase owns high-grade manufacturing base with advanced equipments and vigorous employees, which contribute to good quality products and the best service to overseas customers. Now Ubase is advocating new technology and striving for more energy-saving and environment friendly products, we are expecting to be one of leading companies in China with endless efforts.
We do believe: Ubase is the base for your successful business.
