| Prod Model: |
YuanMeng |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Absorption Coefficient: |
>95% |
| Diameter Of Tank: |
470mm |
| Efficiency: |
300W/M2 |
| Frame Angle: |
20 to 80 Degree |
| Hail Resistance: |
25mm |
| Insulation: |
55mm Polyurethane |
| Thickness Of Inner Tank: |
0.4mm |
| Material Of Inner Tank: |
SUS304 Stainless Steel |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CCC |
Product Description

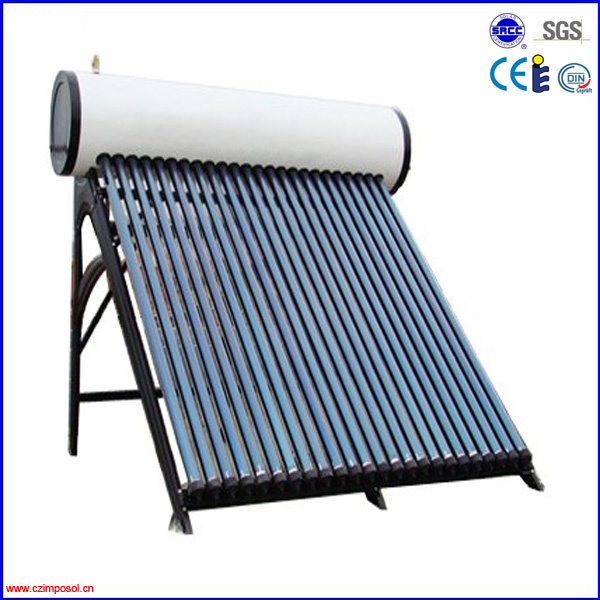

Solar powered water tank heater
1. Outer tank: Colourful steel or galvanized steel
2. Inner tank: SUS304-2B or 316 food-grade stainless steel thickness≥ 0.4
3. Sealing Ring: Excellenrt Silica gel material. Life is twice longer than common Silica gel.
4. Vacuum tuber: High-efficient vacuum tube
*High-Efficient heat-collection function: New generation of vacuum tubes, use molecular nanotechnology, greatly enhance heat-absorption by 20 percent, higher water temperatures.
*Adopts the international advanced film-coating technology, solar thermal conversion rates extremely high, absorbing heat even if the cloud weather.
*Vacuum tube strictly choose high-borosilicate glass 3.3 so that it has low coefficient of thermal expansion and higher intensity. Hail-resistance: 25mm
5. Insulation: 55mm polyurethane keep heating do with aging the cell is small and uniform reasonable density excellent insulation
6. Frame: Thicker galvanized steel, Anti-corrosive. And Anti-ultraviolet, installed in the slope and flat place freely. Strengthen hail-resistance. Angle: 20-80 degree. Through oxidation process. It increase wind resistance., life is longer than common frame. Beautiful appearance.
7. Automatic operation: Digital controller shows water temperature and water lever, water loading automatically, heating automatically, controlling automatically.
Certificate: SRCC, Solar Keymark, CE and ISO9001
| Model | Lighting
Area(m2) | Vacuum Tube | TankNet Capacity(Liters) | Overall
Capacity
(Liters) | 20GP/10HQLoadingQty (sets) |
| Φ(mm) | L(m) | NO. |
| IPJG47581810-GS/SS | 1.4 | 58 | 1800 | 10 | 85 | 116 | 71/172 |
| IPJG47581812-GS/SS | 1.68 | 58 | 1800 | 12 | 100 | 137 | 32/150 |
| IPJG47581815-GS/SS | 2.1 | 58 | 1800 | 15 | 125 | 172 | 52/125 |
| IPJG47581816-GS/SS | 2.24 | 58 | 1800 | 16 | 135 | 185 | 48/116 |
| IPJG47581818-GS/SS | 2.52 | 58 | 1800 | 18 | 150 | 206 | 43/105 |
| IPJG47581820-GS/SS | 2.8 | 58 | 1800 | 20 | 170 | 232 | 39/96 |
| IPJG47581824-GS/SS | 3.36 | 58 | 1800 | 24 | 200 | 274 | 34/82 |
| IPJG47581830-GS/SS | 4.2 | 58 | 1800 | 30 | 250 | 343 | 28/68 |
| IPJG47581836-GS/SS | 5.04 | 58 | 1800 | 36 | 300 | 412 | 23/57 |
| IPJG47471515-GS/SS | 1.35 | 47 | 1500 | 15 | 110 | 134 | 62/152 |
| IPJG47471518-GS/SS | 1.62 | 47 | 1500 | 18 | 135 | 164 |
54/131 |
| IPJG47471520-GS/SS | 1.8 | 47 | 1500 | 20 | 150 | 182 | 50/122 |
| IPJG47471524-GS/SS | 2.16 | 47 | 1500 | 24 | 175 | 213 | 43/104 |
| IPJG47471530-GS/SS | 2.7 | 47 | 1500 | 30 | 220 | 268 | 34/84 |
| IPJG47471536-GS/SS | 3.24 | 47 | 1500 | 36 | 260 | 318 | 29/71 |
Imposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of its high performance and reasonable price. We pay much attention to products' Quality and company' S credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes. It has a workshop covering 6000 square meters with a capacity of 100 thousand solar water heaters and 1 million vacuum tubes every year. These products have enjoyed great popularity among many countries for many years because of their high performance and reasonable price. We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families. Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day. Thus in order to benefit people, Imposol will do its utmost to provide various solar products with high quality and efficiency.
