| Prod Model: |
470-58, 420-47 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Depends on Customer |
| Model Number: |
Ipym58/1800 |
| Antifreezing: |
-50c |
| Wind Resistance: |
30m/S |
| Insulation: |
High Density Polyurethane |
| Frame: |
Galvanized Steel, Stainless Steel, Aluminum Alloy |
| Working Pressure: |
0.6-0.8mpa |
| Testing Pressure: |
1.0mpa |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CE, ISO, SRCC, Solar Keymark |
Product Description

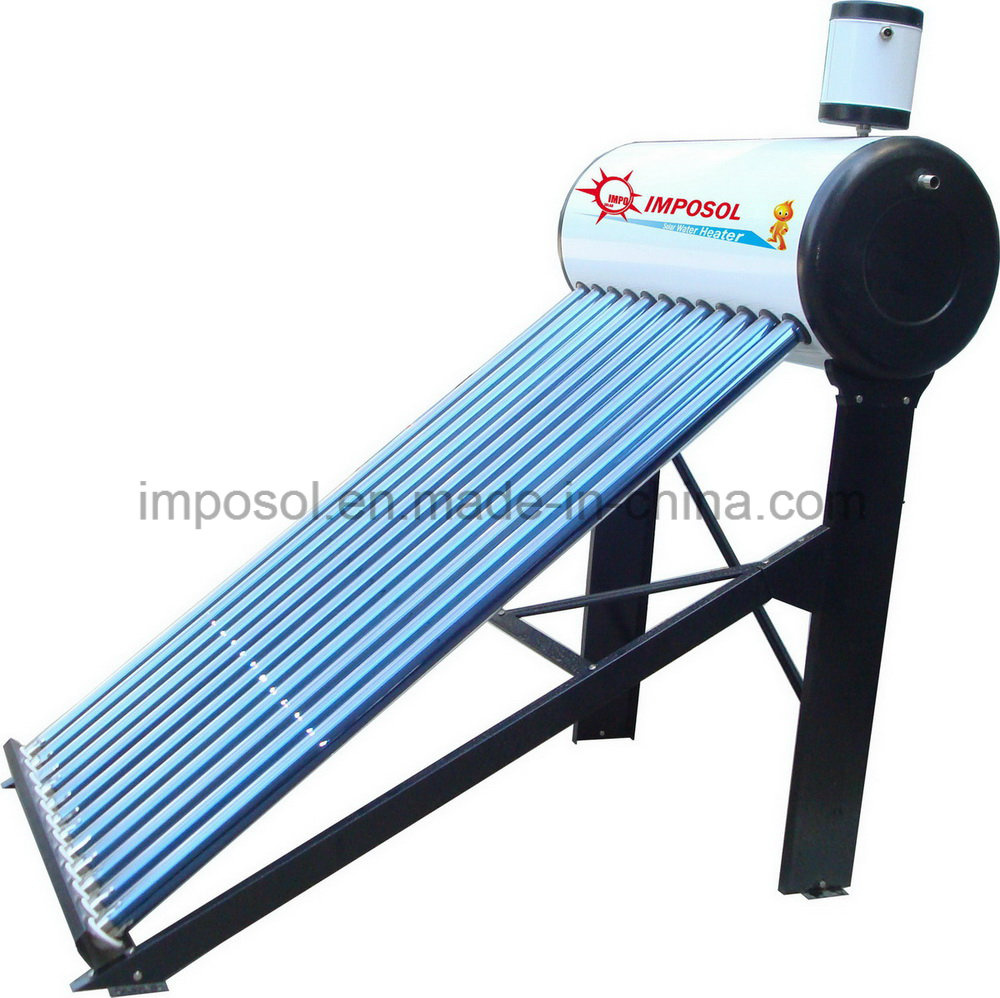

Imposol Solar Water Heater1.Detail Specifications
Solar water heater is a Non-pressure compact system. It's a most economic system with higher efficiency. Working principle depends on Gravity. It'd be installed on the roof as top as possible to get enough hot water flow pressure. The simple controller can be used to show water temperature, level and control cold water supply or electric element work at preset time.
Solar water heater Feature
1) spray-paint and looks like China paint crust
2) Stable and reliable performance and well wind resistance
3) Vacuum heat-collecting tubes at high temperature with new triangle elements
4) Dual-purpose brackets for both flat and inclined roof
5) Meeting the requirement of washing clothes, abstersion and bathing
6)Economical goods
Solar water heater Specifications:
1) Thickness of bracket: 1.5mm
2)-1 Heat-pipe tube: 58mm X 1.8m X 15PCS - 36PCS 47mm X 1.5m X 15PCS - 30PCS
-2 Glass vacuum tube: 58mm X 1.8m X 15PCS - 36PCS 47mm X 1.5m X 15PCS - 30PCS
3) Inner tank: SUS304-2B food grade stainless steel
4) Outer tank: Colorful steel
5) Capacity: 98/110/130/150/180/210/240/300/300L
6) Insulating layer thickness: 50mm - 60mm
7) Inner tank thickness of: 0.4mm - 0.5mm
8) Tank diameter: 470mm/420mm
9) Pressure: 0PA
10) Heat preservation: 72hrs
11) Hail resistance: 25mm

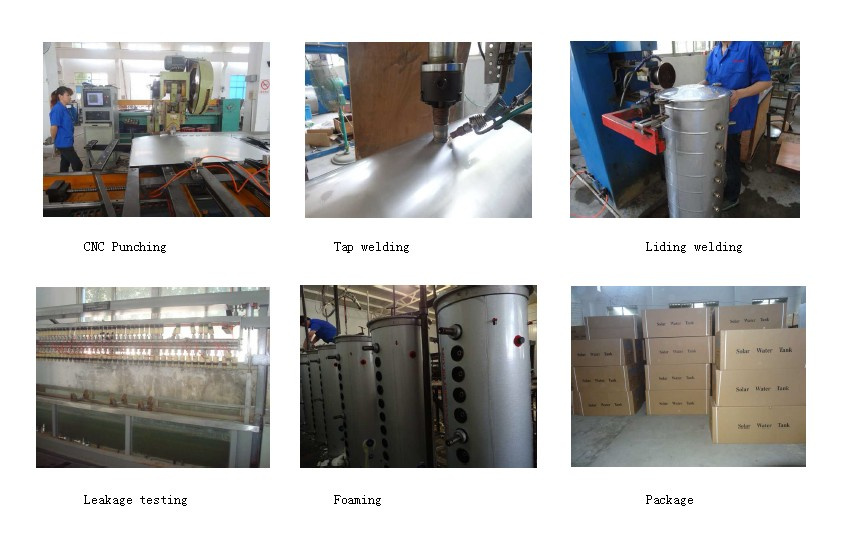

production process

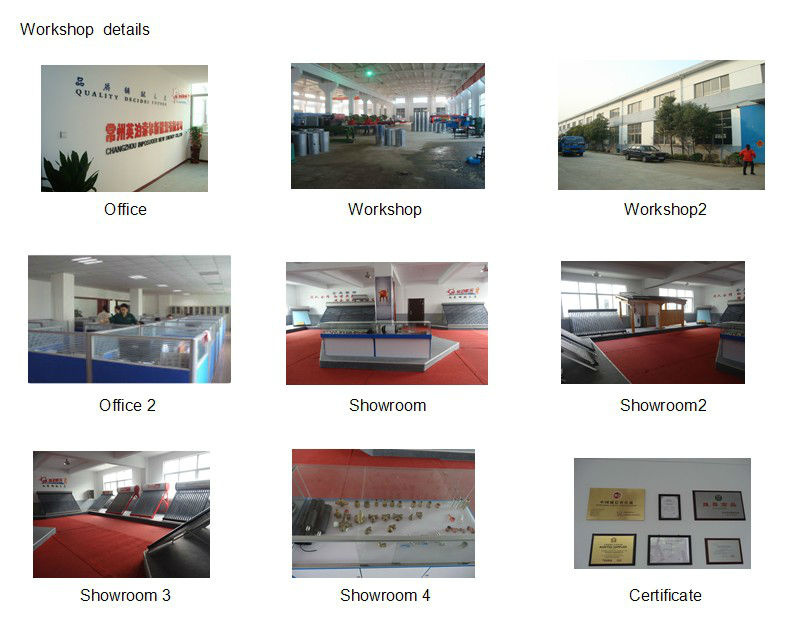

2.Workshop picture

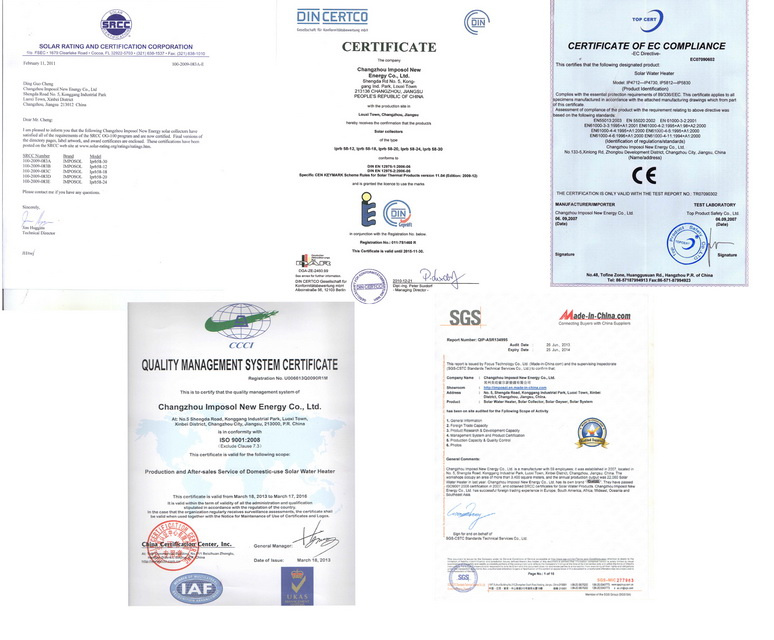

3.Certificate
| MODEL | Lighting | vacuum tube | Cubage | GW | Qty.per20'/40' |
| (m2) | diameter | length | No. | (L) | (kg) | Container |
| 420-1500/47-18-C | 1.95 | Φ47mm | 1500mm | 18 | 100 | 62 | 60/116 |
| 420-1500/47-20-C | 2.2 | Φ47mm | 1500mm | 20 | 111 | 68 | 56/108 |
| 420-1500/47-24-C | 2.55 | Φ47mm | 1500mm | 24 | 133 | 76 | 47/91 |
| 420-1500/47-30-C | 3.1 | Φ47mm | 1500mm | 30 | 166 | 86 | 37/95 |
| MODEL | Lighting | vacuum tube | Cubage | GW | Qty.per20'/40' |
| (m2) | diameter | length | No. | (L) | (kg) | Container |
| 470-1500/47-18-C | 1.95 | Φ47mm | 1500mm | 18 | 139 | 68 | 56/108 |
| 470-1500/47-20-C | 2.2 | Φ47mm | 1500mm | 20 | 150 | 72 | 48/93 |
| 470-1500/47-24-C | 2.55 | Φ47mm | 1500mm | 24 | 179 | 79 | 41/79 |
| 470-1500/47-30-C | 3.1 | Φ47mm | 1500mm | 30 | 226 | 91 | 34/65 |
| MODEL | Lighting | vacuum tube | Cubage | GW | Qty.per20'/40' |
| (m2) | diameter | length | No. | (L) | (kg) | Container |
| 470-1800/58-18-C | 2.66 | Φ58mm | 1800mm | 18 | 150 | 84 | 41/79 |
| 470-1800/58-20-C | 2.99 | Φ58mm | 1800mm | 20 | 165 | 90 | 37/71 |
| 470-1800/58-24-C | 3.56 | Φ58mm | 1800mm | 24 | 200 | 110 | 32/61 |
| 470-1800/58-30-C | 4.42 | Φ58mm | 1800mm | 30 | 250 | 130 | 25/48 |

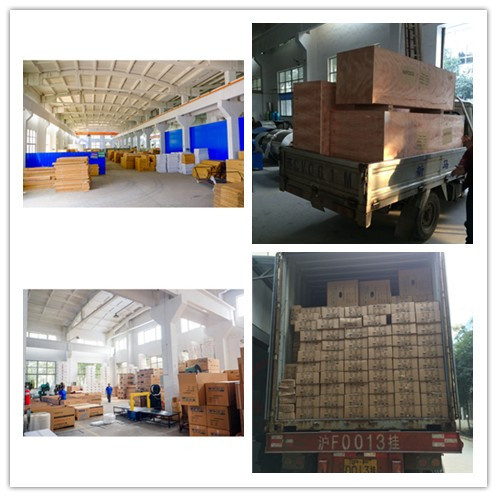

Package and shipping
Imposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of its high performance and reasonable price. We pay much attention to products' Quality and company' S credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes. It has a workshop covering 6000 square meters with a capacity of 100 thousand solar water heaters and 1 million vacuum tubes every year. These products have enjoyed great popularity among many countries for many years because of their high performance and reasonable price. We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families. Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day. Thus in order to benefit people, Imposol will do its utmost to provide various solar products with high quality and efficiency.
