| Prod Model: |
ZhiZun |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
Copper Coil |
| Type: |
Evacuated Tube |
| Inner Tank Material: |
Stainless Steel |
| Inner Tank Thickness: |
1.2-2.0mm |
| Working Pressure: |
0.6-0.8mpa |
| Testing Pressure: |
1.0mpa |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Copper |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE, ISO, SRCC, Solar Keymark |
Product Description
Pressurized Copper Coil Solar Energy Water Heater
1.Specification:
1.Outer tank: SUS304-2B galvanized steel
2.Inner tank: SUS304-2B or 316 food-grade stainless steel thickness≥0.4
3.Sealing Ring: Excellenrt Silica gel material. life is twice longer than common Silica gel.
4.Vacuum tuber: High-efficient vacuum tube
*High-Efficient heat-collection function: New generation o vacuum tubes, use molecular nanotechnology, greatly enhance heat-absorption by 20 percent, higher water temperatures.
*Adopts the international advanced film-coating technology, solar thermal conversion rates extremely high, absorbing heat even if the cloud weather.
*Vacuum tube strictly choose high-borosilicate glass 3.3 so that it has low coefficient of thermal expansion and higher intensity. Hail-resistance:25mm 5.Insulation: 55mm polyurethane keep heating do with aging the cell is small and uniform reasonable density excellent insulation
6.Frame: thicker stainless steel , Anti-corrosive.and Anti-ultraviolet, installed in the slope and flat place freely.Strengthen hail-resistance. Angle 20-80 degree.Through oxidation process.It increase wind resistance.,life is longer than common frame. Beautiful appearance.
7.Automatic operation: Digital controller shows water temperature and water lever,water loading automatically ,heating automatically ,controlling automatically.
2.Working principle introduction and picture:
Thermosiphon solar water heater provide energy and get hot water by a efficient coppper coil fixed in water tank. Different from other common solar water heaters, this type could be used pressurized.
As water in tank can store energy, when cold water goes through copper coil, it could absorb heat from water in tank.The copper coil is20-60m long.
Tank installation should be according to local condition. Thermosiphon solar water heater system is suitable for family, swimming pool ,solar water furnace system and floor heating. It is suitable in areas with cold weather and bad-quality water.it could be used as pressurized system , with much lower price than solar water heater with pressurized water tank.
3.Product details:
4.Certificate:
COMPANY INFORMATION
| Water tank | Inner tank: stainless steel SUS304-2B,0.4mm thickness, 360mm |
| Outer tank: galvanized steel,0.4mm thinckness, 470mm |
| Insulation: polyurethane foaming, 50mm thickness |
| Working pressure: 0 Bar |
| Heat preservation: 72 hours |
| Capacity:180/200/240/300/360L |
| Vacuum tube | Structure: all-glass double-tube co-axial structure |
| Material: high borosilicate glass 3.3 |
| Coating: AL-N/SS/CU |
| Sediment method: 3 target magnertron sputtering plating |
| External pipe: Φ58mm, Internal pipe: Φ47mm, Length:1800mm, thickness:1.6mm |
| Vacuum tightness: P≤5.0*10-3Pa |
| Absorption Rate: 93%~96% (AM1.5) |
| Emission Rate: 4%~6% (80°C±1.5°C) |
| Copper coil | Material: red copper |
| Length:18/20/24/30/36m,thinkness:1mm, Φ10mm |
| Frame | Galvanized steel,1.5mm thickness, 100mm*100mm |
| Angle: 45° |
| Accessories | Fasteners: stainless steel screws |
| Feeder tank: 5L, galvanized steel |
| 1500 kw electrical heater as back up |
| Sealing ring: silicone rubber |
| Warranty | 5 years |

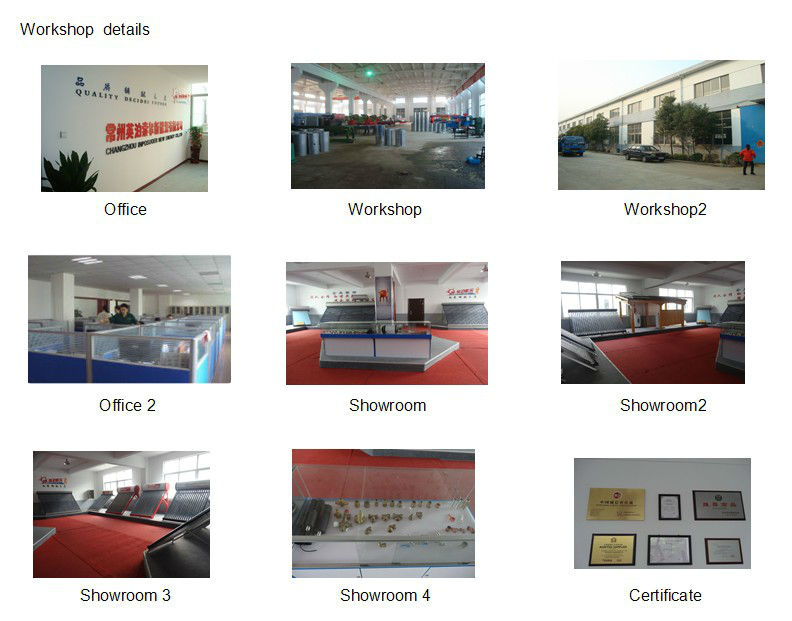

Imposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of its high performance and reasonable price. We pay much attention to products' Quality and company' S credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes. It has a workshop covering 6000 square meters with a capacity of 100 thousand solar water heaters and 1 million vacuum tubes every year. These products have enjoyed great popularity among many countries for many years because of their high performance and reasonable price. We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families. Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day. Thus in order to benefit people, Imposol will do its utmost to provide various solar products with high quality and efficiency.
