| Prod Model: |
EM-3327A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
8 Months |
| Style: |
Ear Hook |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Earpad Size: |
One Size |
| Color: |
Black |
| Wire Material: |
PU |
| Jack Type: |
Depend on Radio Connector |
| Use: |
Two Way Radio |
Product Description

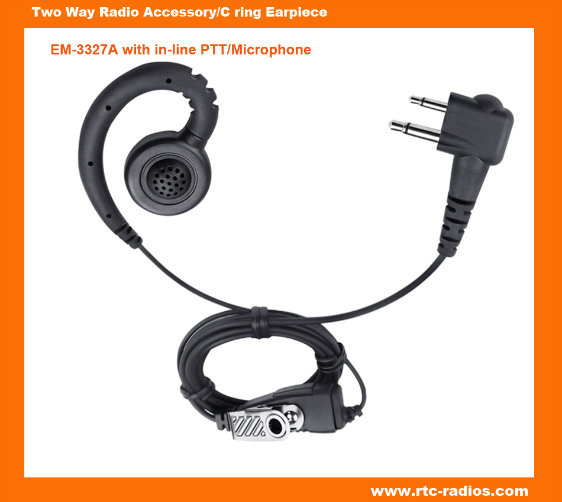

Motorola RLN6423 Swivel Earhook with inline microphone for two-way radioC shape new style earpiece for 2 way radio intercom
Earpiece with microphoneCompact earpiece with microphone for communicating hands-free over 2-way radios
Push-to-talk microphone lets users speak through radio while it remains in holster
Mic clips easily to clothing; Over-the-ear receiver is non-invasive and hygienic
Compatible with DTR, RDX, CLS, AX, XTN-series radios
Product InformationMotorola MTRRLN6423A Lightweight earpiece keeps you comfortable all day. Push-to-talk in-line microphone for instant communication. Versatile earpiece swivels to work on either ear. Sensitive microphone offers excellent sound quality. Headset Type: Monaural; Headset Style: Over The Ear; Earpiece Type: Earloop.
Product IdentifiersBrandMotorola
ModelRLN6423
ColorBlack
MPNRLN6423A
UPC723755540439
DesignFit Design Ear-Hook
Earpiece Single
Earpiece Design Ear-Pad (On the Ear)
ConnectivityConnectivity Type Wired
Features:
1.C-ring swivel earloop with clear audio speaker
2.Left or right ear
3.In-Line microphone with in-line PTT button
4.Speaker rests on the ear,comfortable to wear
5.Great for shift workers needing to share earpieces
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |

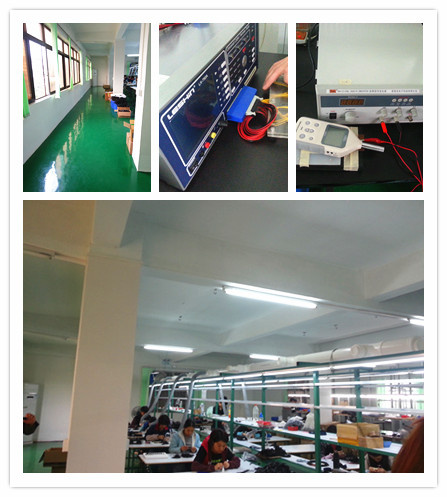

Company & Factory Show:
Your one stop source for Two way radio accessories. (Safety & Comfortable Communication)
RayTalk Communications & Technology was established in 2003 as a professional manufacturer of two way radio Accessories & Aviation headsets, and has continued to provide worldwide customers with the best in two-way communications products and services/ Our team of sales, service, engineering and operations are among the most qualified and best trained in the two way radios industry.
Our products include audio accessories, headset, earpiece, surveillance kit, speaker microphone, throat microphone, batteries, battery chargers compatible with Motorola, Kenwood, Icom, HYT, Vertex/Standard, GME, Unider and Tait products.
RayTalk has delivered comprehensive, dependable, and cost-effective solutions to meet the demands of our clients and on site support service tailored to the specifications and budgets of our clients. OEM & ODM are also welcome, our teams of experts work closely with customers and listen to your opinions with an aim to create products that suits your requirements.
At RayTalk, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction. With the skill, range of service, stability and resources, we believe we can become your long-term communications partner.
