| Prod Model: |
H3A5F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gray White |
| Refrigeration Cop: |
3.1 |
| Application: |
Energy-Saving |
| Function: |
Evaporative Industrial Air Conditione |
| Type: |
Evaporative Air Cooler |
| Operating Voltage: |
230 VAC |
| Mounting: |
Wall/Window Mount |
| Certification: |
CE |
| Condition: |
New |
Product Description

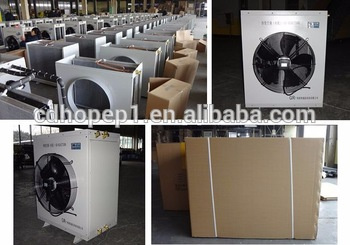

Packaging & Delivery
| Packaging Details: | H3A5F
Indoor part------ Gross weight is 75kg, Size is 877cm*742cm*863cm
Outdoor part----Gross weight is 50kg, Size is 877cm*692cm*915cm
H4A7F
Indoor part--- Gross weight is 95kg,Size is 982cm*742cm*109cm
Outdoor part--- Gross weight is 60kg,Size is1177cm*692cm*915cm
H6A12F
Indoor part--- Gross weight is 120kg,Size is1144cm*742cm*128cm
Outdoor part--- Gross weight is 95kg, Size is1727cm*692cm*915cm
outdoor Intelligent Heat Pipe Air Conditioner for industrial |
|---|
| Delivery Detail: | 30 days after confirmed the order |
|---|
industry cooling air conditioner,heat exchanger air conditioner
Technical Parameters
| Techniques and Performances |
| Hot pip air conditioner(Divided installation)Item | H3A5F | H4A7F | H6A12F |
| Power Supply | 220V ~50Hz | 380V ~50Hz | 380V ~50Hz |
| The Main Technical Parameters | Mechanical Refrigerating | Cooling Capacity(KW) | 5.25 | 7.87 | 12.8 |
| Rated Power(KW) | 1.75 | 2.54 | 4.25 |
| Rated Current(A) | 7.95 | 6.68 | 11.2 |
| Air Flow(m3/h) | 2600 | 3200 | 5000 |
| Energy Efficiency Ratio(EER) | 3.02 | 3.1 | 3.01 |
Heat-pipe
Refrigerating | Indoor Setting TEMP(ºC) | 28 | 28 | 28 |
| Indoor and Outdoor Temperature(TºC) | 10 | 10 | 10 |
| Apparent Cooling Efficiency(KW) | 2.5 | 3.6 | 5.5 |
| Rate Power(KW) | 0.24 | 0.44 | 0.54 |
| Rated Current(A) | 1.12 | 1.19 | 1.46 |
| Air Flow(m3/h) | 2600 | 3200 | 5000 |
| Energy Efficiency Ratio(EER) | 10.4 | 8.2 | 10.2 |
| Air filter(Indoor unit) | primary filter(nylon) | primary filter(nylon) | primary filter(nylon) |
| Refrigerant | R22 | R22 | R22 |
Noise
(dB) | Indoor unit | 58 | 62 | 64 |
| Outer unit | 60 | 63 | 66 |
| Size | Size of Indoor unit(mm) | 805x1030x640 | 805x1030x640 | 1029x1226x640 |
| (W×H×D) |
| Size of Outer unit(mm) | 1062x852x590 | 1062x852x590 | 1550x852x590 |
| (W×H×D) |
| N.W. | Indoor Unit+Outer Unit(kg) | 60+50 | 70+55 | 80+70 |
Special Features
1. Heat exchanger integrated air conditioner has two operating modes: refrigeration mode (compressor cycle) and the heat exchanger mode(heat pipe cycle).
2. Through collecting the indoor and outdoor temperature, the system chooses to run in refrigeration mode or heat pipe mode in order to ensure the indoor cooling requirements under the premise to achieve energy-saving operation objectives.

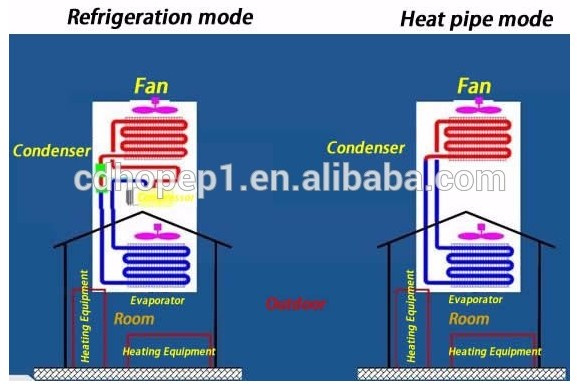

3. The working principle of the two modes described as below.
3.1 Refrigeration mode---The heat exchanger droved by compressor, the compressor drive motor will consume a lot of power, in order to ensure the effect of heat transfer, the evaporator and condenser fans usually operate at full speed , both will also consume a certain amount of power, refrigeration mode so that the input power is relatively large, high energy consumption.
3.2 Heat pipe mode---The entire energy consumption only for the evaporator and condenser fans , because the compressor is not in operation, compared to the refrigeration mode, the consumption of heat pipe mode reduce by 80% around.
Product Details
1. It is energy-saving air conditioner.
2. It is integrated heat-exchanger.
3. It is designed especially for all kinds of industrial machinery room, like engine room, huge warehouse, elevator machine room, electricity generation engine room, engine house, moto room, machinery room, MIS server room and ventilation equipment room.
Certificate:
Leading time:
Usually about 20 days. The exact lead time need to be confirmed according to the quantity of order.
Per conveyance:
Pointed delivery-agent. DHL,UPS or Fedex by your account will be all ok. Also we can hunt for the delivery agent with the best price in China if you need us to do for you.
Contact Us
Any more questions, pls don't hesitate to let us know. Pls contact us ASAP.
Pearl Zhou
Phone: 0086 028-85582111
Mobile: 86 15928835844
Web: www.hopep.com
Chengdu Hop Environmental Protection Technology Co., Ltd. Are specialized Research and development in Indurstrail air conditioning and electric energy meter more than 20 years, We are committed to environmental protection and energy conservation, hope that through our efforts to bring better environmentally friendly products for the world.
We also are supplier of China telecom China moble and China Unicom.
With over 10 years' manufacturing & trading experiences, our products have got dozens of patent-letter, and are hot sale all over the world since 2004.
Our continuous innovation based on customer needs, has established our leading position in energy-saving equipment, industrial air conditioning, energy management and environment monitoring.
We take "professional, careful, thorough" for the idea. Strive to do the "low-carbon life, low-carbon development, fine energy-saving"!
